F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

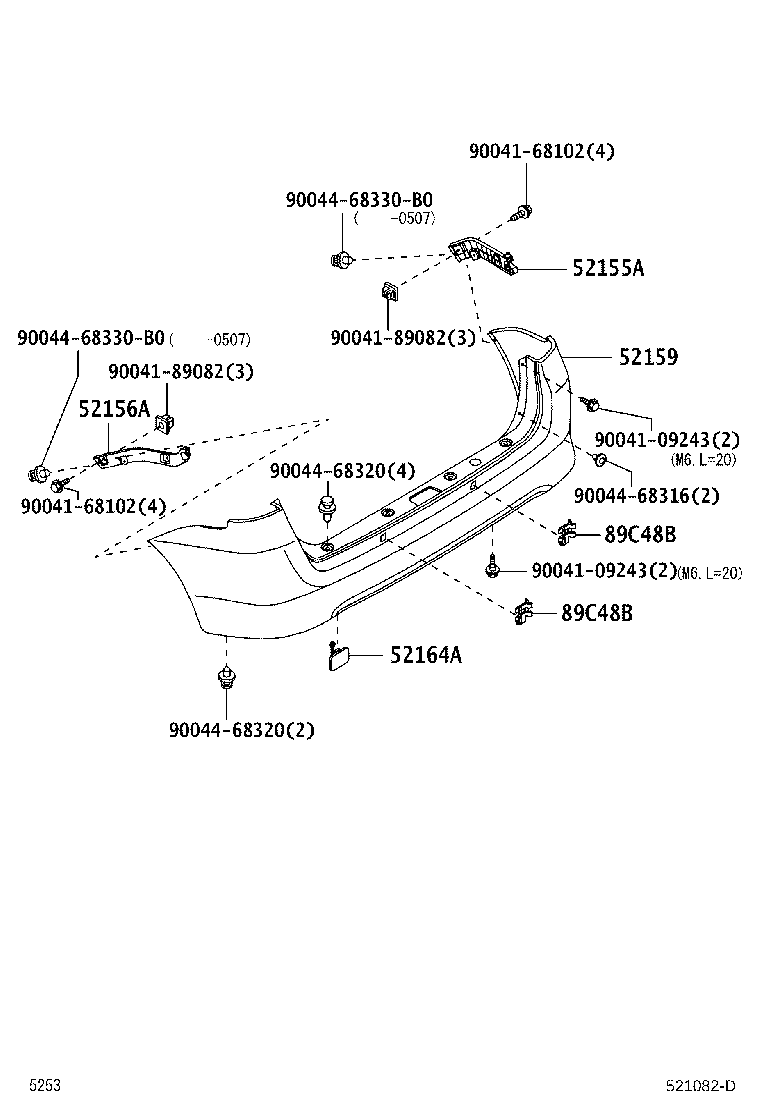

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52164A 89C48B 89C48B 9004109243 9004109243 9004168102 9004168102 9004189082 9004189082 9004468316 9004468320 9004468320 9004468330B0 9004468330B0
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-BZ010

F601

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-BZ010

F601

 1
52159 - COVER, REAR BUMPER
52159-BZ020

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

 1
52164A - PLATE, REAR BUMPER, LH
52164-BZ020

F601..E,G,GL,LIMD

 1
Common parts
90041-09243
90041-68102
90041-89082
90044-68316
90044-68320
90044-68330B0
