F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0801)PS1

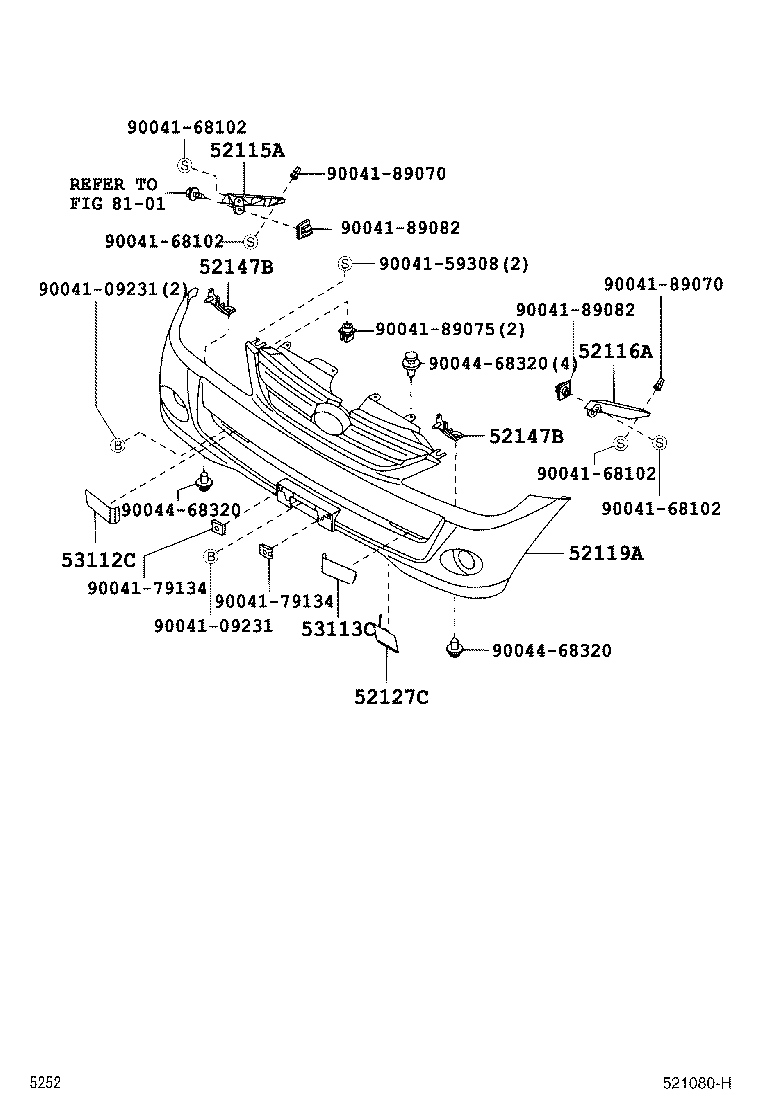

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52127C 52147B 52147B 53112C 53113C 8101 9004109231 9004109231 9004159308 9004168102 9004168102 9004168102 9004168102 9004179134 9004179134 9004189070 9004189070 9004189075 9004189082 9004189082 9004468320 9004468320 9004468320
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-BZ010

F601

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-BZ010

F601

 1
52119A - COVER, FRONT BUMPER
52119-BZ060

F601..G..BRU

 1
52119-BZ080

F601..S..BRU

 1
52127C - COVER, FRONT BUMPER HOLE
52127-BZ020

F601..E,G,GL,LIMD

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-BZ010

F601

 2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-BZ010

F601

 2
53112C - GRILLE, RADIATOR, LOWER RH
53112-BZ010

F601

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-BZ010

F601

 1
Common parts
90041-09231
90041-59308
90041-68102
90041-79134
90041-89070
90041-89075
90041-89082
90044-68320
Linked diagrams
8101
