F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

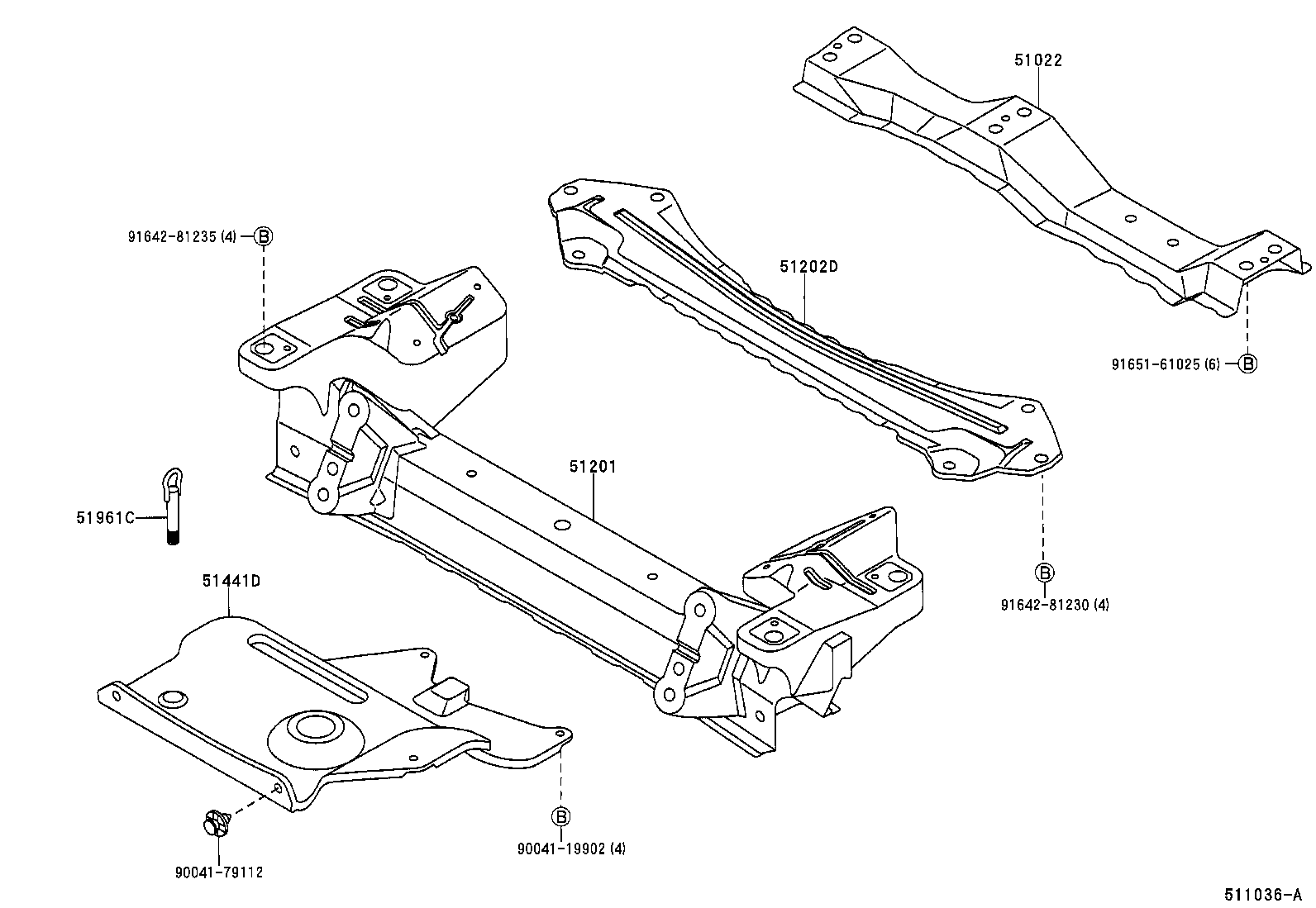

Click highlighted areas on diagram

diagram 51022 51201 51202D 51441D 51961C 9004119902 9004179112 9164281230 9164281235 9165161025
Part # Description Qty Price
51022 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51022-BZ010

F601

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-BZ010

F601

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-BZ010

F601..5F

 1
51961C - HOOK, FRONT
51960-BZ020

F601

 1
Common parts
90041-19902
90041-79112
91642-81230
91642-81235
91651-61025
