F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

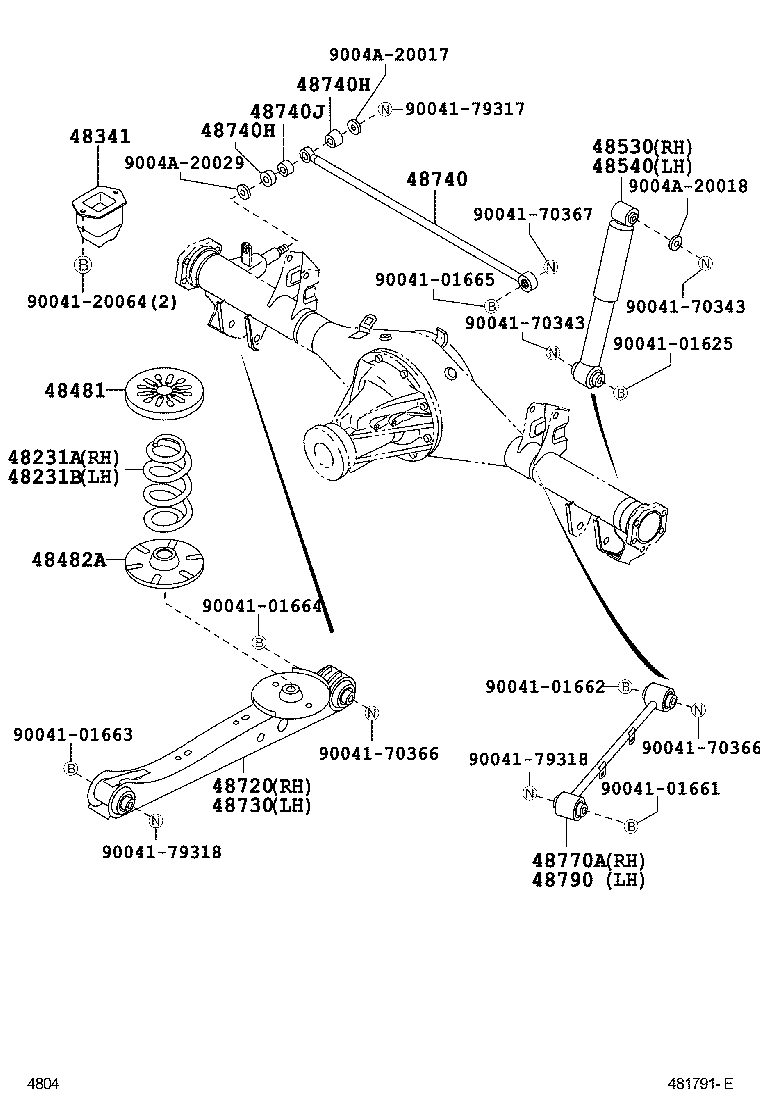

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-BZ050 |
F601 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-BZ050 |
F601 |
1 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-BZ010 |
F601 |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-BZ010 |
F601 |
2 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-BZ010 |
F601 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-BZ060 |
F601 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-BZ060 |
F601 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-BZ010 |
F601 |
1 | ||
| 48720-BZ011 |
F601 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-BZ010 |
F601 |
1 | ||
| 48720-BZ011 |
F601 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-BZ010 |
F601 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85149 |
F601 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85149 |
F601 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-86103 |
F601 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-BZ010 |
F601..5F;F601..4AT..MA |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-BZ010 |
F601..5F;F601..4AT..MA |
1 | ||
| Common parts | ||||
| 90041-01625 | ||||
| 90041-01661 | ||||
| 90041-01662 | ||||
| 90041-01663 | ||||
| 90041-01664 | ||||
| 90041-01665 | ||||
| 90041-20064 | ||||
| 90041-70343 | ||||
| 90041-70366 | ||||
| 90041-70367 | ||||
| 90041-79317 | ||||
| 90041-79318 | ||||
| 9004A-20017 | ||||
| 9004A-20018 | ||||
| 9004A-20029 | ||||
