F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

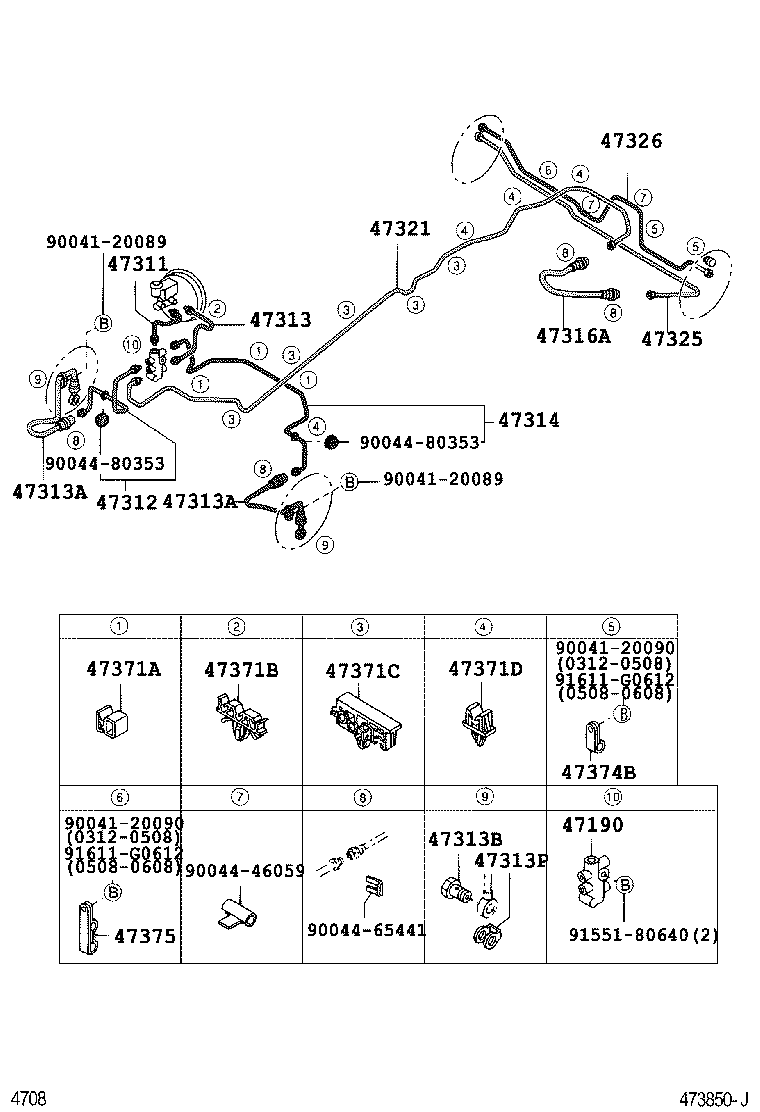

Click highlighted areas on diagram

L/ABS

diagram 47190 47311 47312 47313 47313A 47313A 47313B 47313P 47314 47316A 47321 47325 47326 47371A 47371B 47371C 47371D 47374B 47375 9004120089 9004120089 9004120090 9004120090 9004446059 9004465441 9004480353 9004480353 9155180640 91611G0612 91611G0612
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-B0010

F601..5F;F601..4AT..MA

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ010

F601..5F;F601..4AT..MA

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ010

F601..5F;F601..4AT..MA

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ010

F601..5F;F601..4AT..MA

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94041

F601

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94041

F601

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

F601

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

F601

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ010

F601..5F;F601..4AT..MA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94040

F601..5F;F601..4AT..MA

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ010

F601..5F;F601..4AT..MA

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-BZ010

F601..5F;F601..4AT..MA

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-BZ010

F601..5F;F601..4AT..MA

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90044-64742

F601..5F;F601..4AT..MA

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64716

F601..5F;F601..4AT..MA

 5
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64299

F601..5F;F601..4AT..MA

 4
47374B - CLAMP, BRAKE TUBE, NO.4
96221-30705

F601..5F;F601..4AT..MA

 2
47375 - CLAMP, BRAKE TUBE, NO.5
9004A-46094

F601..5F;F601..4AT..MA

L/ABS

 1
Common parts
90041-20089
90041-20090
90044-46059
90044-65441
90044-80353
91551-80640
91611-G0612
