F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608) ; (0608- )

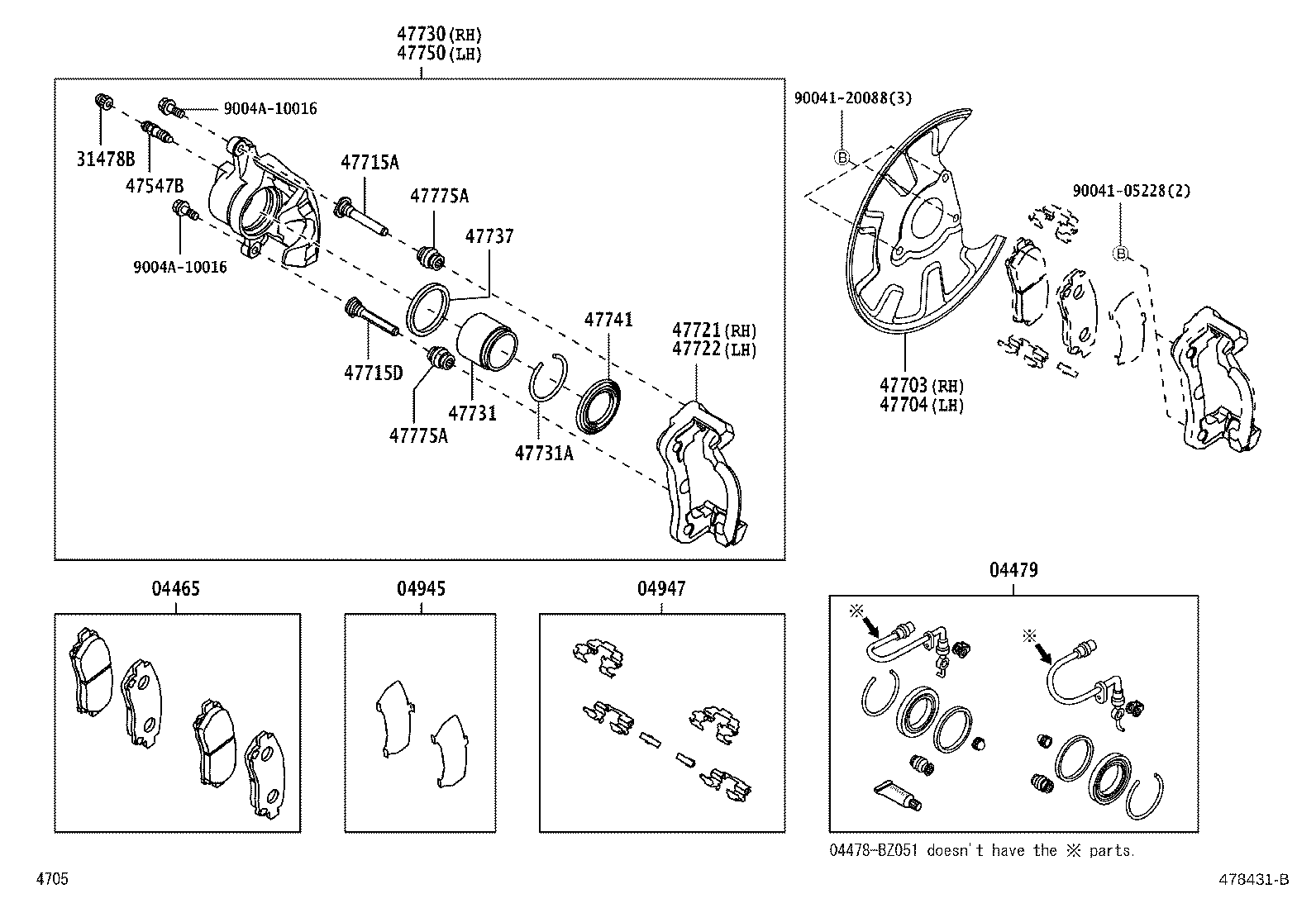

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47715A 47715D 47721 47722 47730 47731 47731A 47737 47741 47750 47775A 47775A 9004105228 9004120088 9004A10016 9004A10016
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-BZ010

F601

MARK AK NS177H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-B1030

F601..E,G,GL,S

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-BZ010

F601

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-BZ010

F601

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-BZ010

F601

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-BZ050

F601

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47781-BZ010

F601..5F;F601..4AT..MA

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47782-BZ010

F601..5F;F601..4AT..MA

 1
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-BZ010

F601

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-BZ020

F601

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-BZ010

F601

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-BZ010

F601

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-BZ010

F601

 1
47731 - PISTON, FRONT DISC BRAKE
47731-BZ010

F601

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
9004A-52006

F601

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-BZ010

F601

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-BZ010

F601

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-BZ010

F601

 1
47775A - BOOT, PIN
47775-BZ010

F601

 4
47775A - BOOT, PIN
47775-BZ010

F601

 4
Common parts
90041-05228
90041-20088
9004A-10016
