F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

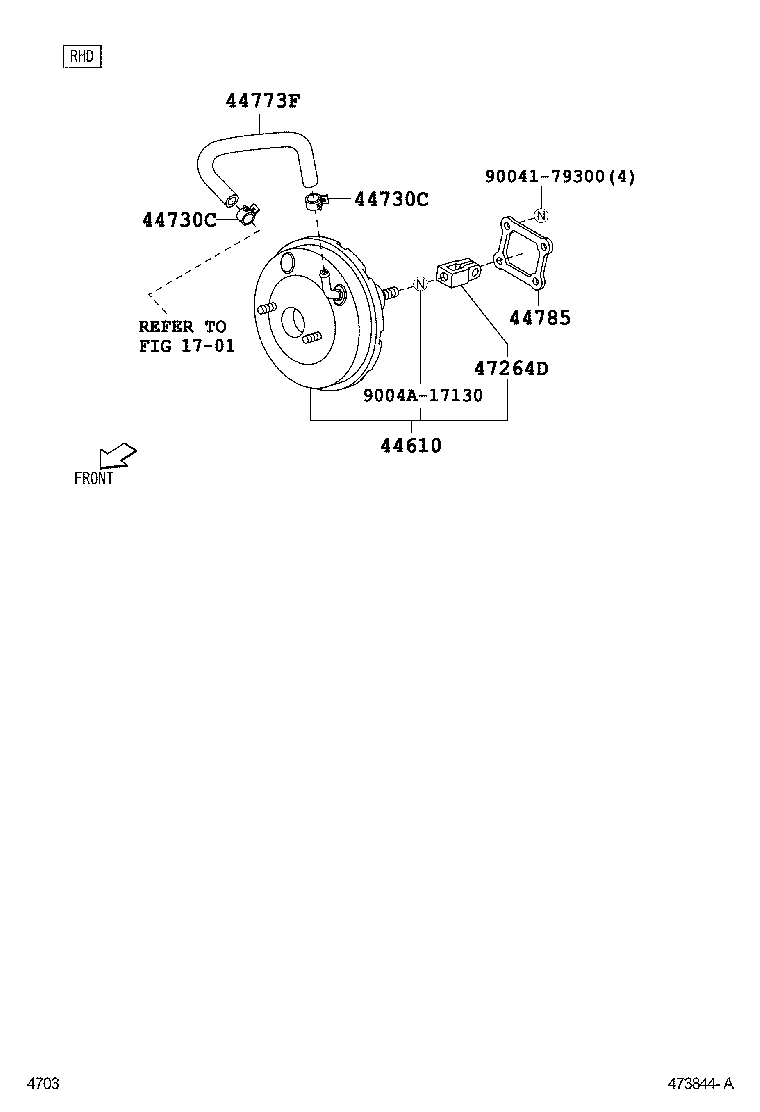

ILLUST NO. 1 OF 2(0312-0608) ; (0608- )RHD

Click highlighted areas on diagram

diagram 1701 44610 44730C 44730C 44773F 44785 47264D 9004179300 9004A17130
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-BZ010

F601..5F;F601..4AT..MA

 1
44730C - CLIP(FOR VACUUM HOSE)
90044-67161

F601

 2
44730C - CLIP(FOR VACUUM HOSE)
90044-67161

F601

 2
44773F - HOSE, UNION TO CHECK VALVE
44750-BZ010

F601..BRU,IDN,TH

 1
44785 - GASKET, BRAKE BOOSTER
47275-BZ010

F601

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-BZ010

F601

 1
Common parts
90041-79300
9004A-17130
Linked diagrams
1701
