F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0312-0608)

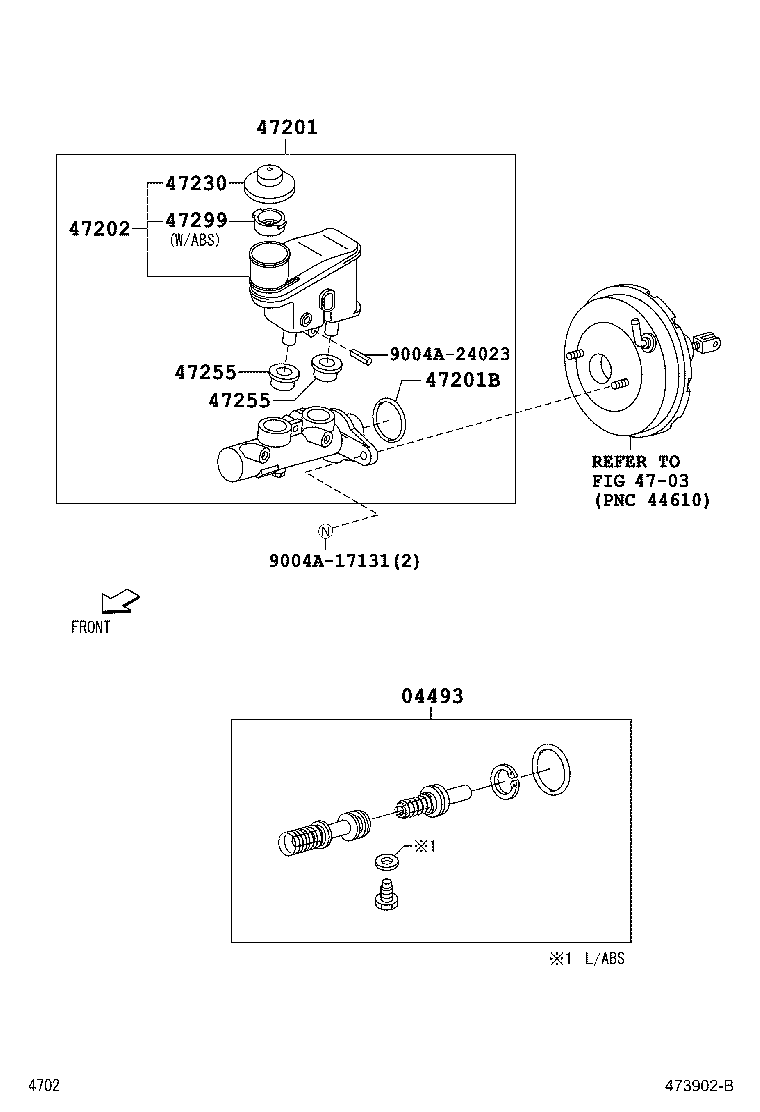

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47202 47230 47255 47255 47299 9004A17131 9004A24023
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-B1040

F601..5F;F601..4AT..MA

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-BZ010

F601..5F;F601..4AT..MA

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
9004A-30021

F601

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-BZ010

F601..5F;F601..4AT..MA

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-BZ010

F601..5F;F601..4AT..MA

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ010

F601

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ010

F601

 2
Common parts
9004A-17131
9004A-24023
Linked diagrams
4703
