F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

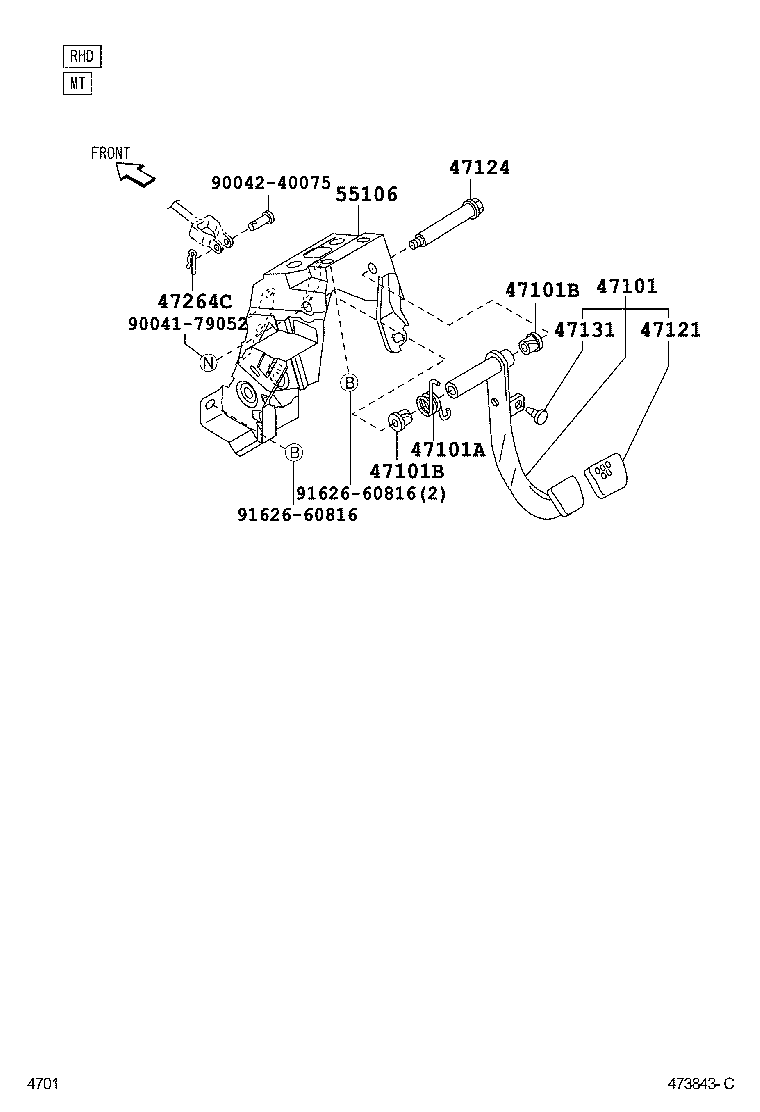

ILLUST NO. 1 OF 6(0312-0608)5F ; (0608- )F601..RHD..5F
Click highlighted areas on diagram
RHD MT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47110-BZ010 |
F601..5F |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 9004A-50038 |
F601..5F |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F601 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F601 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-BZ010 |
F601..5F |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-B0010 |
F601 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 9004A-54003 |
F601 |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68076 |
F601 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-BZ010 |
F601..5F |
1 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 90042-40075 | ||||
| 91626-60816 | ||||
