F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

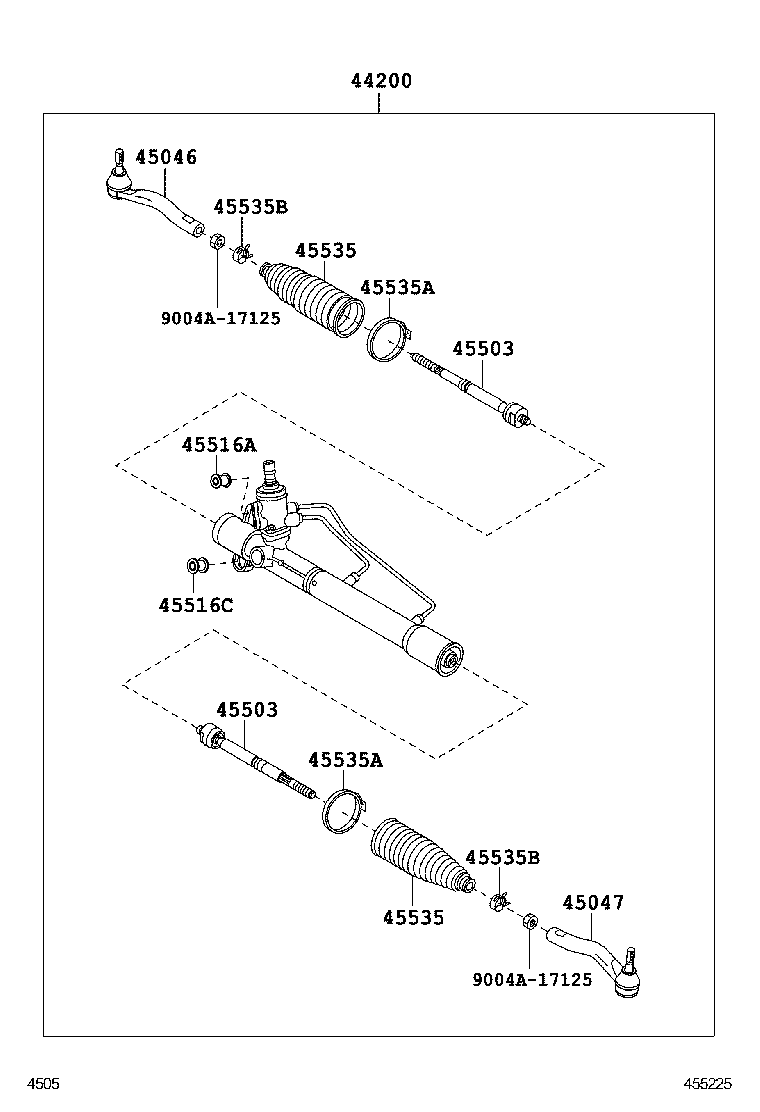

ILLUST NO. 2 OF 4(0312-0608) ; (0608-0708)F601..RHD..GEN,IDN,SA

Click highlighted areas on diagram

diagram 44200 45046 45047 45503 45503 45516A 45516C 45535 45535 45535A 45535A 45535B 45535B 9004A17125 9004A17125
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-BZ010

F601

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-BZ010

F601

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-BZ010

F601

 1
45503 - END SUB-ASSY, STEERING RACK
45503-BZ010

F601

 2
45503 - END SUB-ASSY, STEERING RACK
45503-BZ010

F601

 2
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-BZ020

F601

 1
45516C - BUSH, STEERING RACK HOUSING, NO.2
45516-BZ020

F601

 1
45535 - BOOT, STEERING RACK, NO.1
45535-BZ010

F601

 2
45535 - BOOT, STEERING RACK, NO.1
45535-BZ010

F601

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
9004A-46136

F601

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
9004A-46136

F601

 2
45535B - CLIP(FOR STEERING RACK BOOT)
9004A-46138

F601

 2
45535B - CLIP(FOR STEERING RACK BOOT)
9004A-46138

F601

 2
Common parts
9004A-17125
