F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

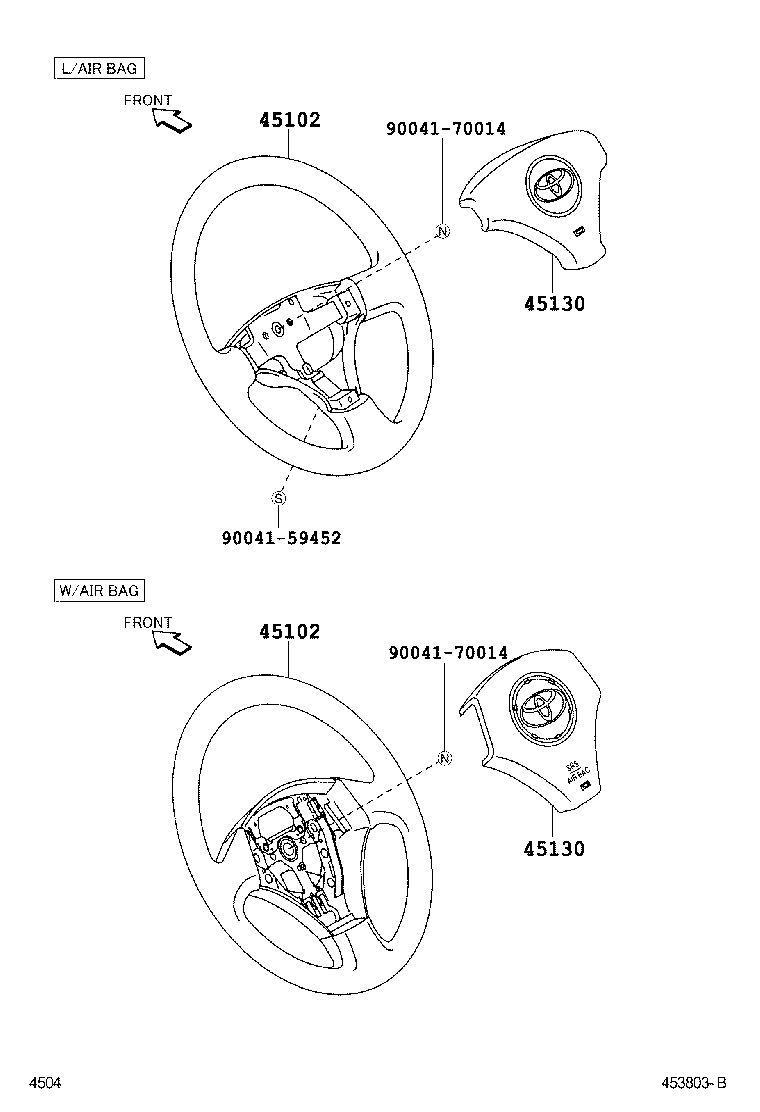

Click highlighted areas on diagram

3SPOKE

diagram 45102 45102 45130 45130 9004159452 9004170014 9004170014
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-BZ010B0

F601..E,G,GL,LIMD

DK.GRAY,TRIM1#

 1
45102 - WHEEL SUB-ASSY, STEERING
45102-BZ010B0

F601..E,G,GL,LIMD

DK.GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-BZ020B0

F601..E,G,GL,LIMD

DK.GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-BZ020B0

F601..E,G,GL,LIMD

DK.GRAY,TRIM1#

 1
Common parts
90041-59452
90041-70014
