F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

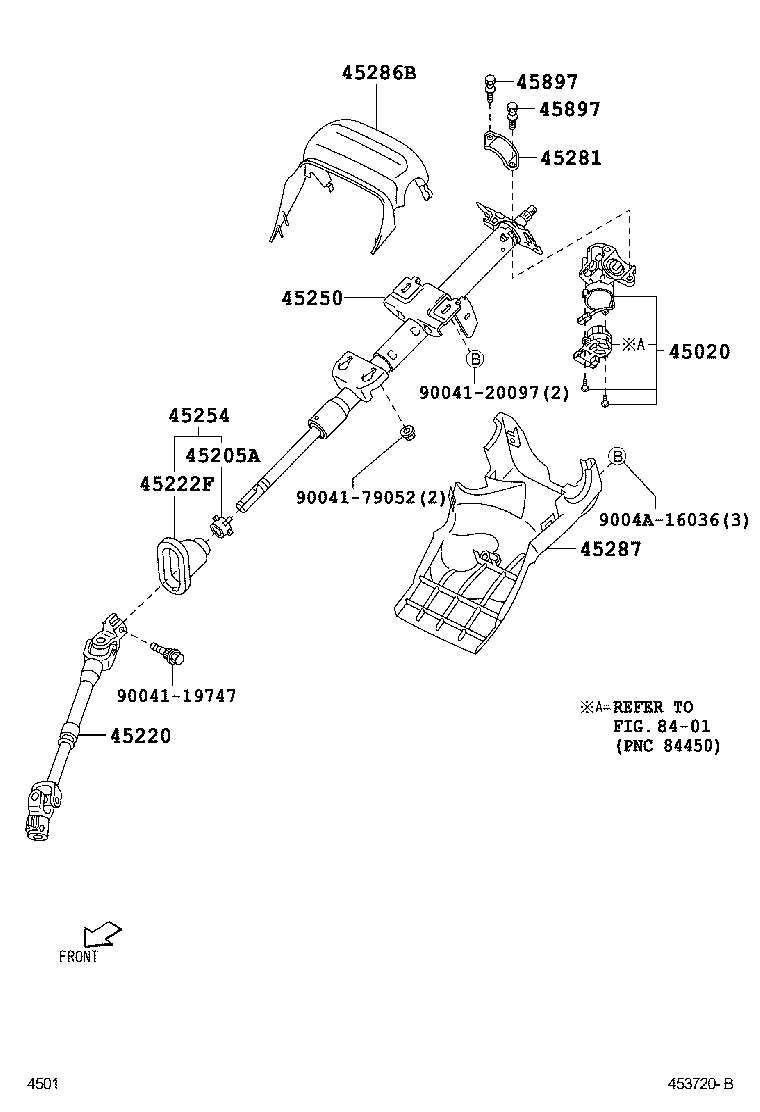

Click highlighted areas on diagram

diagram 45020 45205A 45220 45222F 45250 45254 45281 45286B 45287 45897 45897 8401 9004119747 9004120097 9004179052 9004A16036
Part # Description Qty Price
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-BZ010

F601..(E,G,GL)..(BRU,IDN,TH)

 1
45205A - BUSH(FOR STEERING COLUMN TUBE)
90043-85183

F601

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-BZ010

F601

 1
45222F - COVER, DUST
45222-BZ010

F601

 1
45250 - COLUMN ASSY, STEERING
45250-BZ010

F601

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-BZ010

F601

 1
45281 - HOUSING, STEERING COLUMN
45281-B0010

F601..E,G,GL,S

 1
45286B - COVER, STEERING COLUMN, UPR
45286-BZ010B0

F601..(E,G,GL,S)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-BZ010B0

F601..(E,G,GL,S)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
Common parts
90041-19747
90041-20097
90041-79052
9004A-16036
Linked diagrams
8401
