F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0312-0608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-BZ030 |
F601..GL..BRU 14X5J OFFSET 50,STEE,TYPE A INKOASKU |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-BZ030 |
F601..GL..BRU 14X5J OFFSET 50,STEE,TYPE A INKOASKU |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-BZ030 |
F601..BRU 14X5J OFFSET 50,STEE,TYPE A INKOASKU |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-BZ030 |
F601..BRU 14X5J OFFSET 50,STEE,TYPE A INKOASKU |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90049-11063 |
F601..G,LIMD,S;F601..4AT..(E,GL) TYPE A |
16 | ||
| 90049-11036 |
F601..5F..(E,GL) TYPE B |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90049-11063 |
F601..G,LIMD,S;F601..4AT..(E,GL) TYPE A |
16 | ||
| 90049-11036 |
F601..5F..(E,GL) TYPE B |
16 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42638-BZ030 |
F601..G,LIMD,S;F601..4AT..(E,GL) *ALU |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90049-02019 |
F601 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90049-02019 |
F601 |
1 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-B0010 |
F601..5F..(E,GL) |
4 | ||

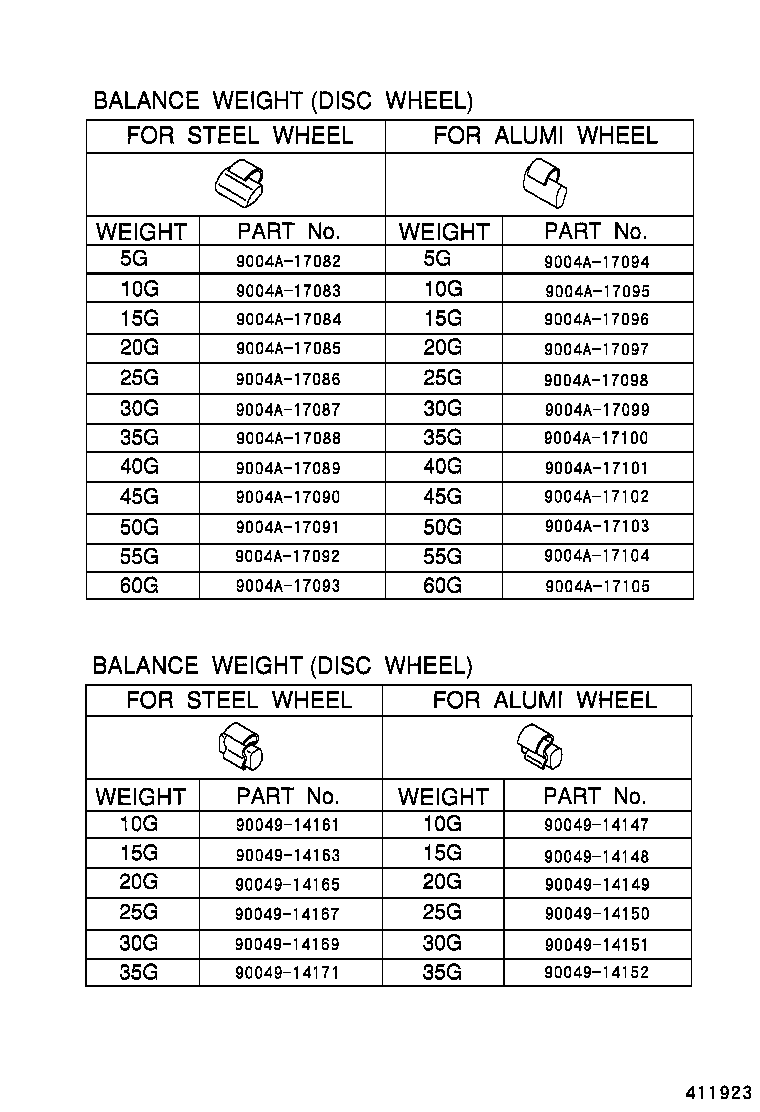

ILLUST NO. 2 OF 2(0312-0608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90049-14147 | ||||
| 90049-14148 | ||||
| 90049-14149 | ||||
| 90049-14150 | ||||
| 90049-14151 | ||||
| 90049-14152 | ||||
| 90049-14161 | ||||
| 90049-14163 | ||||
| 90049-14165 | ||||
| 90049-14167 | ||||
| 90049-14169 | ||||
| 90049-14171 | ||||
| 9004A-17082 | ||||
| 9004A-17083 | ||||
| 9004A-17084 | ||||
| 9004A-17085 | ||||
| 9004A-17086 | ||||
| 9004A-17087 | ||||
| 9004A-17088 | ||||
| 9004A-17089 | ||||
| 9004A-17090 | ||||
| 9004A-17091 | ||||
| 9004A-17092 | ||||
| 9004A-17093 | ||||
| 9004A-17094 | ||||
| 9004A-17095 | ||||
| 9004A-17096 | ||||
| 9004A-17097 | ||||
| 9004A-17098 | ||||
| 9004A-17099 | ||||
| 9004A-17100 | ||||
| 9004A-17101 | ||||
| 9004A-17102 | ||||
| 9004A-17103 | ||||
| 9004A-17104 | ||||
| 9004A-17105 | ||||
