F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)5F

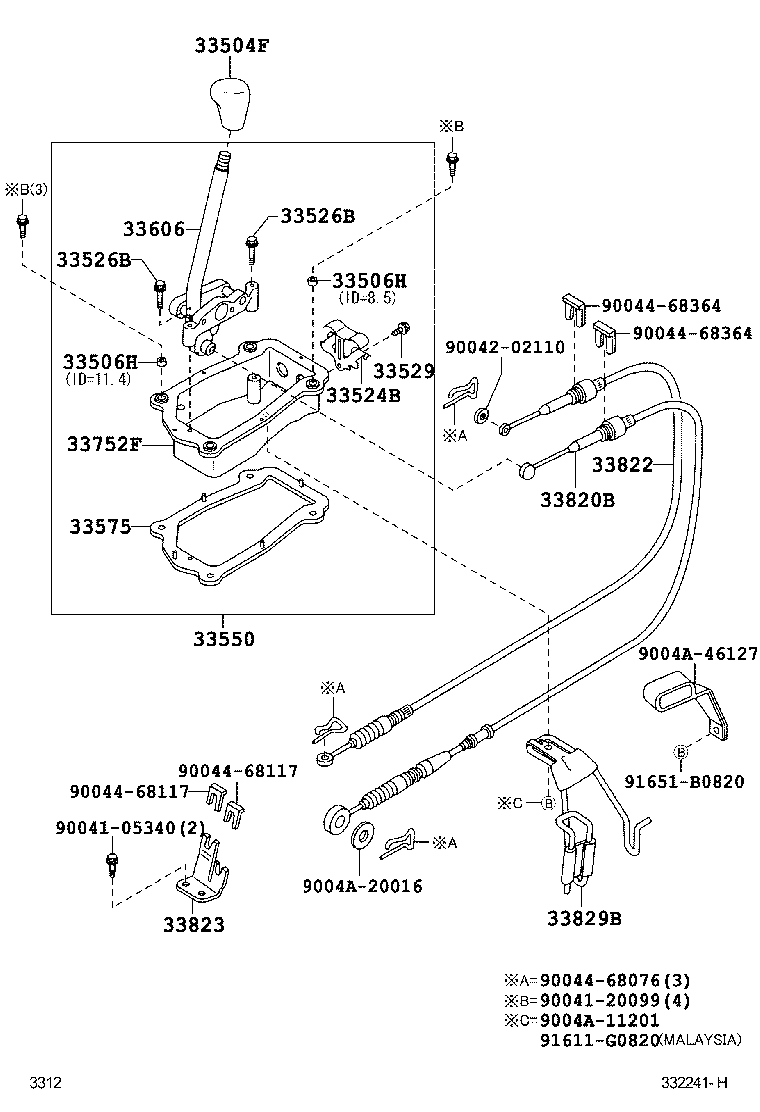

Click highlighted areas on diagram

diagram 33504F 33506H 33506H 33524B 33526B 33526B 33529 33550 33575 33606 33752F 33820B 33822 33823 33829B 9004105340 9004120099 9004202110 9004468076 9004468117 9004468117 9004468364 9004468364 9004A11201 9004A20016 9004A46127 91611G0820 91651B0820
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-BZ010B0

F601..5F

DK.GRAY,TRIM1#

 1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
33546-BZ010

F601..5F

ID=8.5

 1
33546-BZ020

F601..5F

ID=11.4

 3
33506H - BUSH (FOR SHIFT LEVER RETAINER)
33546-BZ010

F601..5F

ID=8.5

 1
33546-BZ020

F601..5F

ID=11.4

 3
33524B - BRACKET, CONTROL CABLE
33524-BZ010

F601..5F

 1
33526B - BOLT, SHIFT LEVER HOUSING SET
33526-BZ010

F601..5F

 2
33526B - BOLT, SHIFT LEVER HOUSING SET
33526-BZ010

F601..5F

 2
33529 - BOLT, SHIFT LEVER (FOR CONTROL SHAFT)
33529-BZ010

F601..5F

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-BZ010

F601..5F

 1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575-BZ010

F601..5F

 1
33606 - LEVER SUB-ASSY, WIRE PULL
33606-BZ010

F601..5F

 1
33752F - SUPPORT, CONTROL LINK (FOR FLOOR SHIFT)
33752-BZ010

F601..5F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-BZ010

F601..5F

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-BZ010

F601..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-BZ010

F601..5F

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-B0020

F601..5F

 1
Common parts
90041-05340
90041-20099
90042-02110
90044-68076
90044-68117
90044-68364
9004A-11201
9004A-20016
9004A-46127
91611-G0820
91651-B0820
