F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)5F

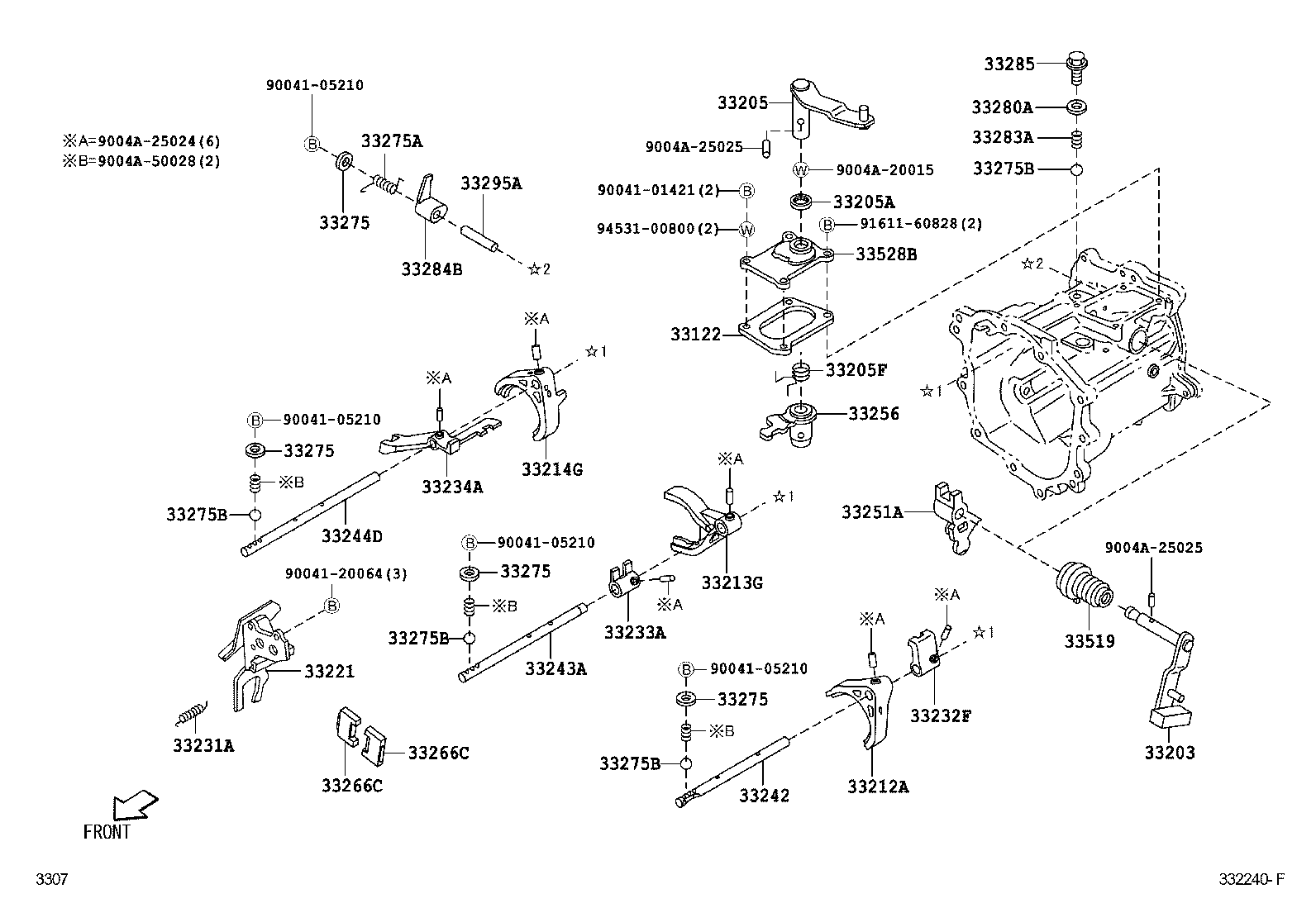

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-87504 |
F601..5F |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-B0010 |
F601..5F |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-B0010 |
F601..5F |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 9004A-31017 |
F601..5F |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 9004A-50032 |
F601..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-BZ010 |
F601..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-BZ010 |
F601..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-BZ010 |
F601..5F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-B0010 |
F601..5F (J),NO.2 |
1 | ||
| 33201-87401 |
F601..5F |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 9004A-50034 |
F601..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-BZ010 |
F601..5F |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-BZ010 |
F601..5F |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33237-87501 |
F601..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-BZ010 |
F601..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-BZ010 |
F601..5F |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-BZ010 |
F601..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-87509 |
F601..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-87501 |
F601..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-87506 |
F601..5F |
2 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-87506 |
F601..5F |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
F601..5F 0D=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
F601..5F 0D=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
F601..5F 0D=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 9004A-43005 |
F601..5F 0D=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 9004A-50033 |
F601..5F L=22.3 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
F601..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
F601..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
F601..5F |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
F601..5F |
3 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 9004A-43004 |
F601..5F |
1 | ||
| 33284B - PIN, REVERSE RESTRICT, NO.2 | ||||
| 33284-BZ010 |
F601..5F |
1 | ||
| 33285 - HOLDER, REVERSE RESTRICT PIN | ||||
| 33285-87501 |
F601..5F |
1 | ||
| 33295A - SHAFT, REVERSE RESTRICT | ||||
| 33295-87501 |
F601..5F |
1 | ||
| 33519 - BOOT, CONTROL SHAFT DUST | ||||
| 33519-BZ010 |
F601..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33528-87Z01 |
F601..5F |
1 | ||
| Common parts | ||||
| 90041-01421 | ||||
| 90041-05210 | ||||
| 90041-20064 | ||||
| 9004A-20015 | ||||
| 9004A-25024 | ||||
| 9004A-25025 | ||||
| 9004A-50028 | ||||
| 91611-60828 | ||||
| 94531-00800 | ||||
