F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)5F

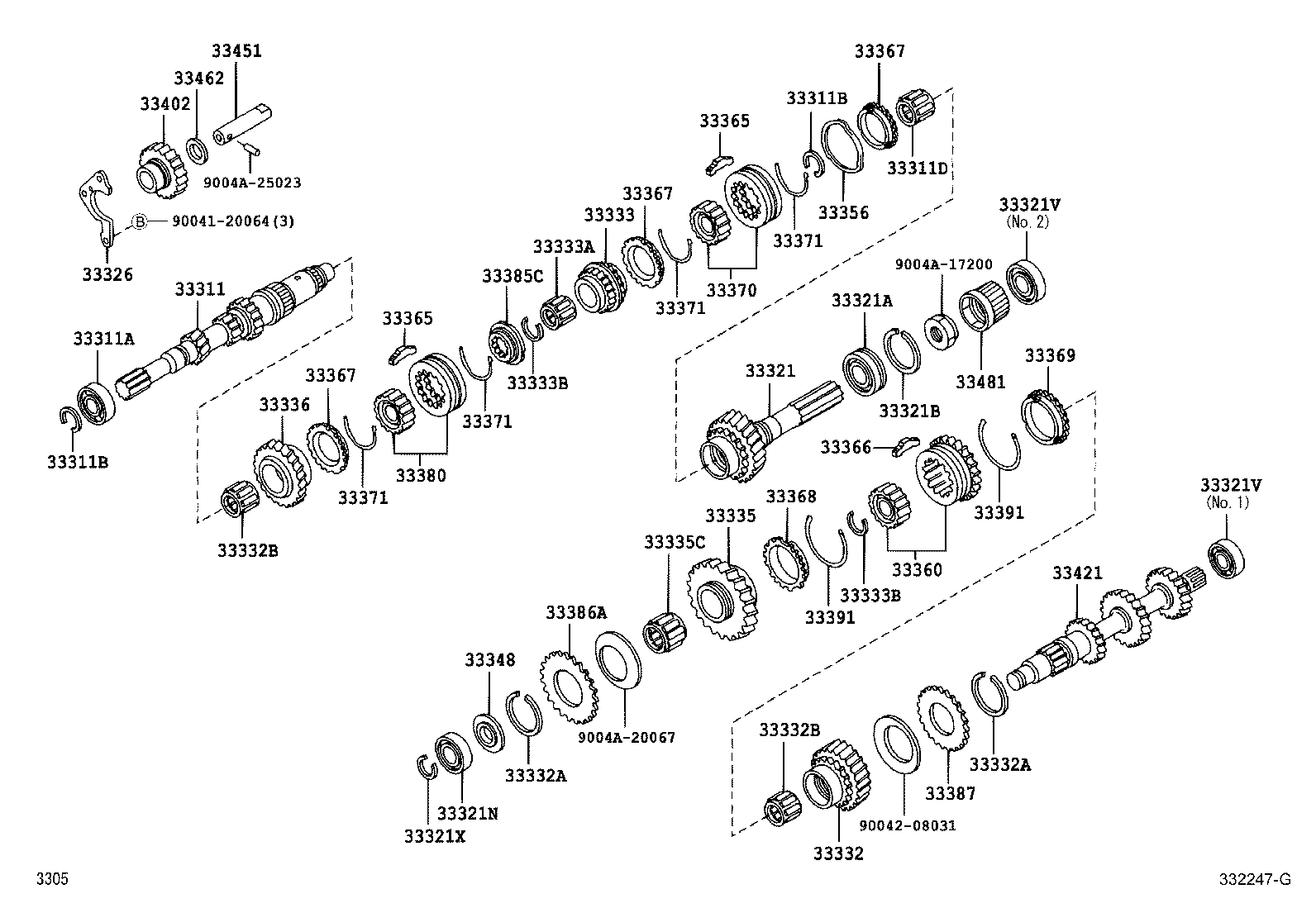

Click highlighted areas on diagram

diagram 33311 33311A 33311B 33311B 33311D 33321 33321A 33321B 33321N 33321V 33321V 33321X 33326 33332 33332A 33332A 33332B 33332B 33333 33333A 33333B 33333B 33335 33335C 33336 33348 33356 33360 33365 33365 33366 33367 33367 33367 33368 33369 33370 33371 33371 33371 33371 33380 33385C 33386A 33387 33391 33391 33402 33421 33451 33462 33481 9004120064 9004208031 9004A17200 9004A20067 9004A25023
Part # Description Qty Price
33311 - SHAFT, INPUT
33311-97501

F601..GL..BRU

 2
33311A - BEARING (FOR INPUT SHAFT FRONT)
90043-63246

F601..5F

(J),NO.2

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90045-20272

F601..5F

T=2.02

 2
90045-20271

F601..5F

T=2.06

 2
90045-20277

F601..5F

T=1.82

 2
90045-20276

F601..5F

T=1.86

 2
90045-20274

F601..5F

T=1.94

 2
90045-20275

F601..5F

T=1.90

 2
90045-20278

F601..5F

T=1.78

 2
90045-20273

F601..5F

T=1.98

 2
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90045-20272

F601..5F

T=2.02

 2
90045-20271

F601..5F

T=2.06

 2
90045-20277

F601..5F

T=1.82

 2
90045-20276

F601..5F

T=1.86

 2
90045-20274

F601..5F

T=1.94

 2
90045-20275

F601..5F

T=1.90

 2
90045-20278

F601..5F

T=1.78

 2
90045-20273

F601..5F

T=1.98

 2
33311D - BEARING, INPUT SHAFT
90043-64121

F601..5F

KOYO

 1
90043-64119

F601..5F

NTN

 1
90043-64134

F601..5F

 1
33321 - SHAFT, OUTPUT
33321-97502

F601..5F

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
9004A-36011

F601..5F

 1
33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90045-21157

F601..5F

 1
33321N - BEARING (FOR OUTPUT SHAFT FRONT)
90043-63247

F601..5F

(J),NO.2

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90043-63282

F601..5F

NO.1

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90043-63282

F601..5F

NO.1

 1
33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
90045-20280

F601..5F

T=2.02

 1
90045-20279

F601..5F

T=2.06

 1
90045-20281

F601..5F

T=1.98

 1
90045-20285

F601..5F

T=1.82

 1
90045-20286

F601..5F

T=1.78

 1
90045-20284

F601..5F

T=1.86

 1
90045-20282

F601..5F

T=1.94

 1
90045-20283

F601..5F

T=1.90

 1
33326 - PLATE, BEARING LOCK
33326-BZ010

F601..5F

 1
33332 - GEAR, 2ND
33332-87511

F601..GL..BRU

 2
33332A - RING, SHAFT SNAP (FOR 2ND GEAR)
90045-20107

F601..5F

(L),NO.3

 2
33332A - RING, SHAFT SNAP (FOR 2ND GEAR)
90045-20107

F601..5F

(L),NO.3

 2
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90043-64119

F601..5F

NTN

 2
90043-64121

F601..5F

KOYO

 2
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90043-64119

F601..5F

NTN

 2
90043-64121

F601..5F

KOYO

 2
33333 - GEAR, 3RD
33333-87401

F601..GL..BRU

 2
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90043-64136

F601..5F

(J),NO.2

 1
33333B - RING, SHAFT SNAP (FOR 3RD REAR)
90045-20263

F601..5F

T=2.06

 2
90045-20264

F601..5F

T=2.02

 2
90045-20265

F601..5F

T=1.98

 2
90045-20269

F601..5F

T=1.82

 2
90045-20267

F601..5F

T=1.90

 2
90045-20268

F601..5F

T=1.86

 2
90045-20266

F601..5F

T=1.94

 2
90045-20270

F601..5F

T=2.10

 2
33333B - RING, SHAFT SNAP (FOR 3RD REAR)
90045-20263

F601..5F

T=2.06

 2
90045-20264

F601..5F

T=2.02

 2
90045-20265

F601..5F

T=1.98

 2
90045-20269

F601..5F

T=1.82

 2
90045-20267

F601..5F

T=1.90

 2
90045-20268

F601..5F

T=1.86

 2
90045-20266

F601..5F

T=1.94

 2
90045-20270

F601..5F

T=2.10

 2
33335 - GEAR, 1ST
33335-97501

F601..GL..BRU

 2
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90043-64034

F601..5F

(J),NO.2

 1
33336 - GEAR, 5TH
33336-87504

F601..GL..BRU

 2
33348 - WASHER, 1ST GEAR THRUST
33348-87508

F601..GL..BRU

 2
33356 - SPRING, WAVE
33356-87501

F601..5F

 1
33360 - HUB ASSY, SYNCHRONIZER, NO.1
33360-87513

F601..5F

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-87702

F601..GL..BRU

 12
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-87702

F601..GL..BRU

 12
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-87505

F601..GL..BRU

 6
33367 - RING, SYNCHRONIZER, NO.1
33367-87507

F601..5F

 3
33367 - RING, SYNCHRONIZER, NO.1
33367-87507

F601..5F

 3
33367 - RING, SYNCHRONIZER, NO.1
33367-87507

F601..5F

 3
33368 - RING, SYNCHRONIZER, NO.2
33368-87509

F601..GL..BRU

 2
33369 - RING, SYNCHRONIZER, NO.3
33369-87503

F601..GL..BRU

 2
33370 - HUB ASSY, SYNCHRONIZER, NO.2
33370-87515

F601..5F

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-87505

F601..GL..BRU

 8
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-87505

F601..GL..BRU

 8
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-87505

F601..GL..BRU

 8
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-87505

F601..GL..BRU

 8
33380 - HUB ASSY, SYNCHRONIZER, NO.3
33380-87509

F601..5F

 1
33385C - STOPPER, HUB SLEEVE
33385-87504

F601..GL..BRU

 2
33386A - SUB-GEAR, 1ST
33386-87503

F601..GL..BRU

 2
33387 - SUB-GEAR, NO.2
33387-87503

F601..GL..BRU

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391-87701

F601..GL..BRU

 4
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391-87701

F601..GL..BRU

 4
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-87507

F601..5F

 1
33402-B0020

F601..5F

(J),NO.2

 1
33421 - GEAR, COUNTER
33421-97501

F601..GL..BRU

 2
33451 - SHAFT, REVERSE IDLER GEAR
33451-87504

F601..5F

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-87501

F601..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-87407

F601..5F

N=6

 1
Common parts
90041-20064
90042-08031
9004A-17200
9004A-20067
9004A-25023
