F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)5F ; (0608- )5F

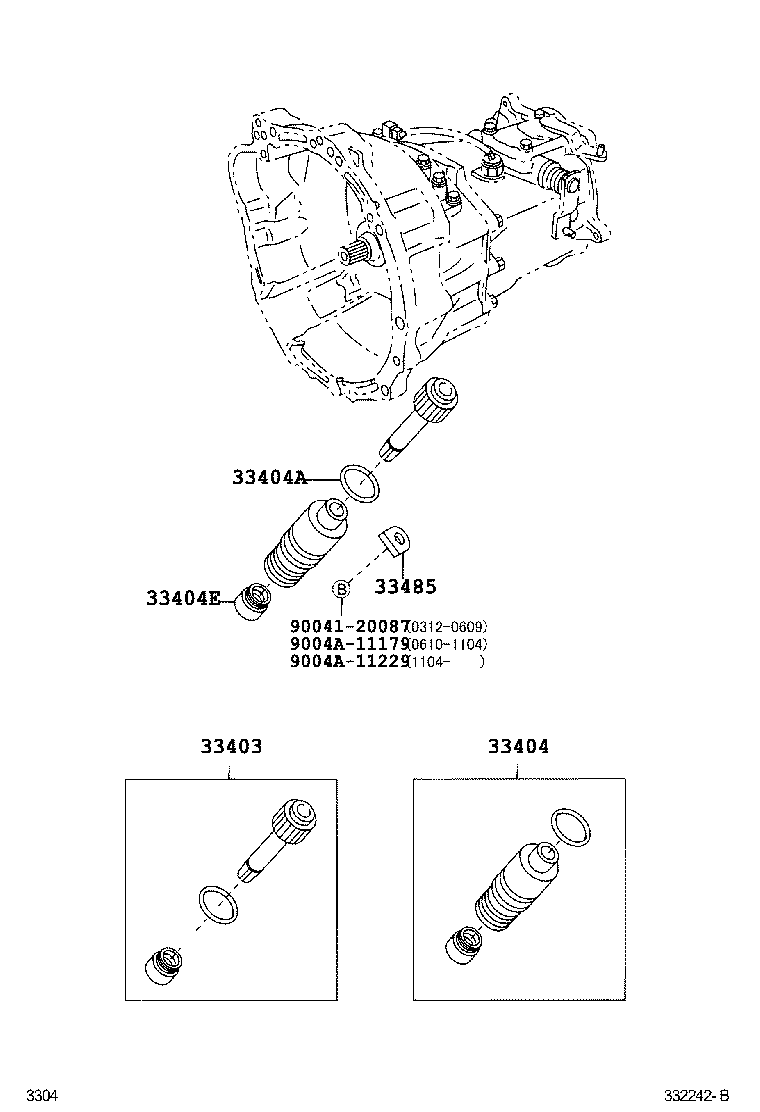

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404E 33485 9004120087 9004A11179 9004A11229
Part # Description Qty Price
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-BZ010

F601..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
9004A-30014

F601..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
9004A-31016

F601..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-BZ010

F601..5F

 1
Common parts
90041-20087
9004A-11179
9004A-11229
