F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0312-0608)5F

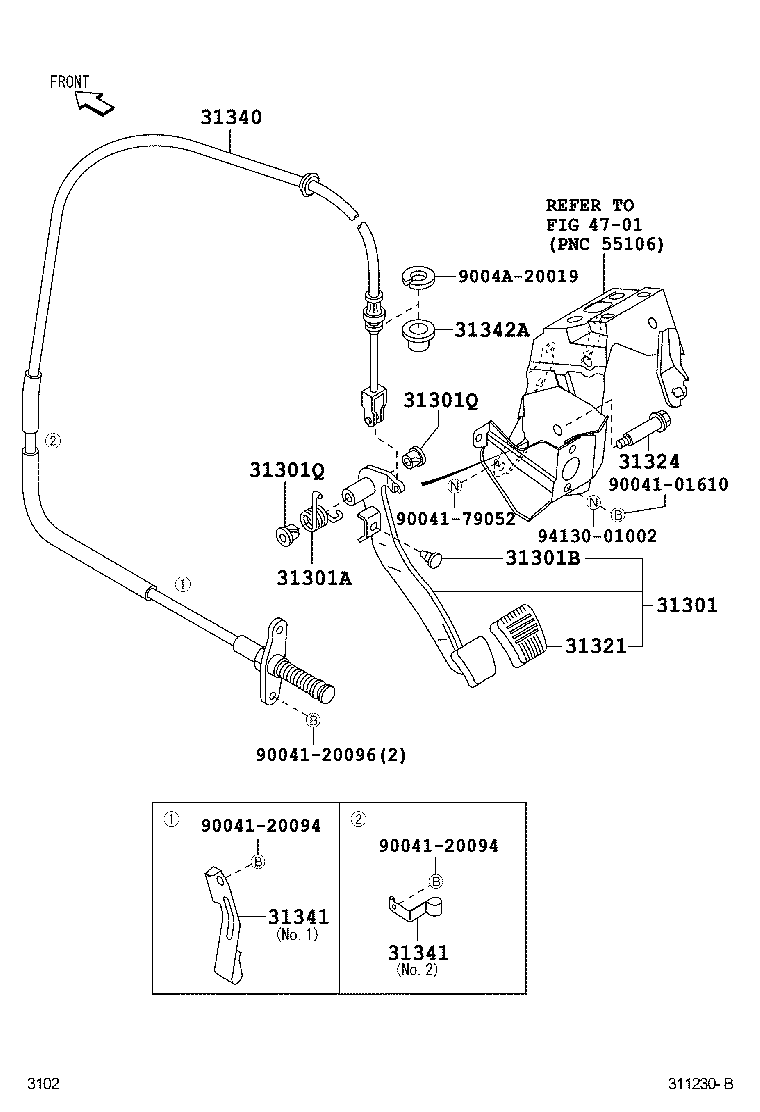

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301Q 31301Q 31321 31324 31340 31341 31341 31342A 4701 9004101610 9004120094 9004120094 9004120096 9004179052 9004A20019 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-BZ010

F601..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
9004A-50039

F601..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
9004A-54003

F601..5F

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F601..5F

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
9004A-38021

F601..5F

 2
31321 - PAD, CLUTCH PEDAL
31321-BZ010

F601..5F

 1
31324 - SHAFT, CLUTCH PEDAL
31324-B0010

F601..5F

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-BZ020

F601..5F

 1
31341 - BRACKET, CLUTCH CABLE
31341-BZ040

F601..5F

NO.1

 1
31341-BZ020

F601..5F

NO.2

 1
31341 - BRACKET, CLUTCH CABLE
31341-BZ040

F601..5F

NO.1

 1
31341-BZ020

F601..5F

NO.2

 1
31342A - BUSH(FOR CLUTCH RELEASE CABLE)
90043-85162

F601..5F

 1
Common parts
90041-01610
90041-20094
90041-20096
90041-79052
9004A-20019
94130-01002
Linked diagrams
4701
