F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)5F

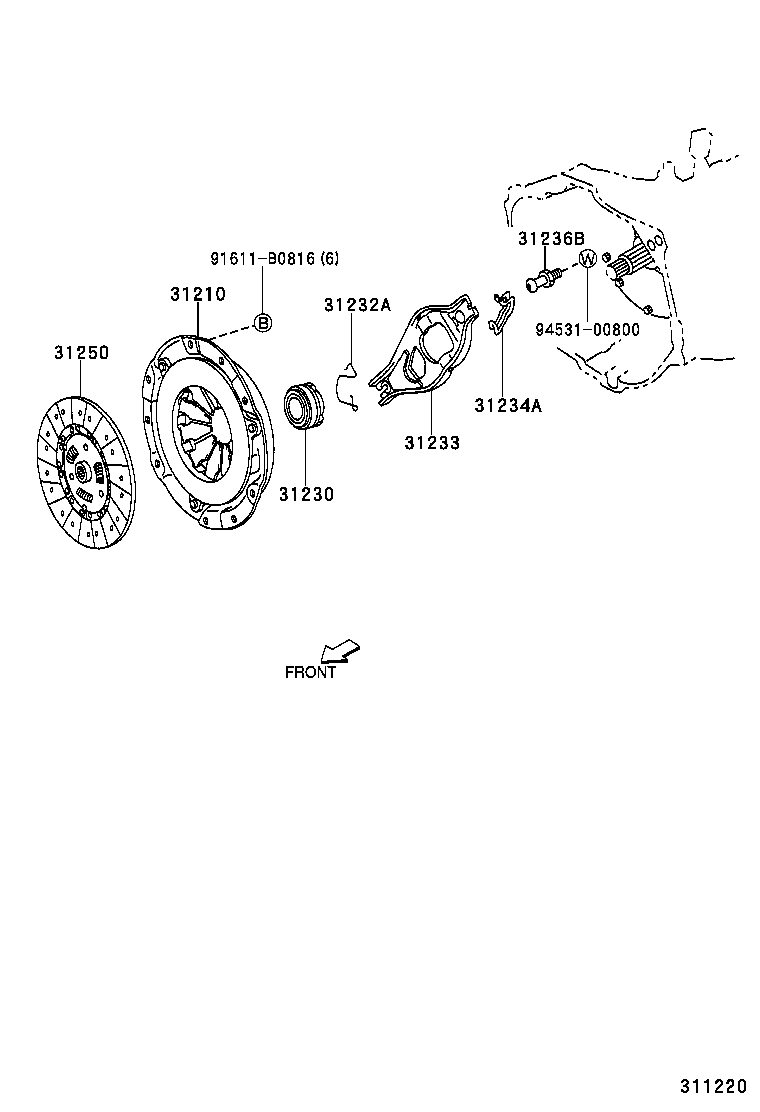

Click highlighted areas on diagram

diagram 31210 31230 31232A 31233 31234A 31236B 31250 91611B0816 9453100800
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-BZ020

F601..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-87507

F601..5F

KOYO

 1
31230-97502

F601..5F

NSK

 1
31232A - CLIP, RELEASE BEARING HUB
31232-87505

F601..5F

 1
31233 - FORK, CLUTCH RELEASE
31233-B0010

F601..5F

 1
31234A - SPRING, RELEASE FORK SUPPORT
31234-87402

F601..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-B0010

F601..5F

 1
31250 - DISC ASSY, CLUTCH
31250-BZ020

F601..5F

 1
31250-BZ130

F601..5F

 1
Common parts
91611-B0816
94531-00800
