F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

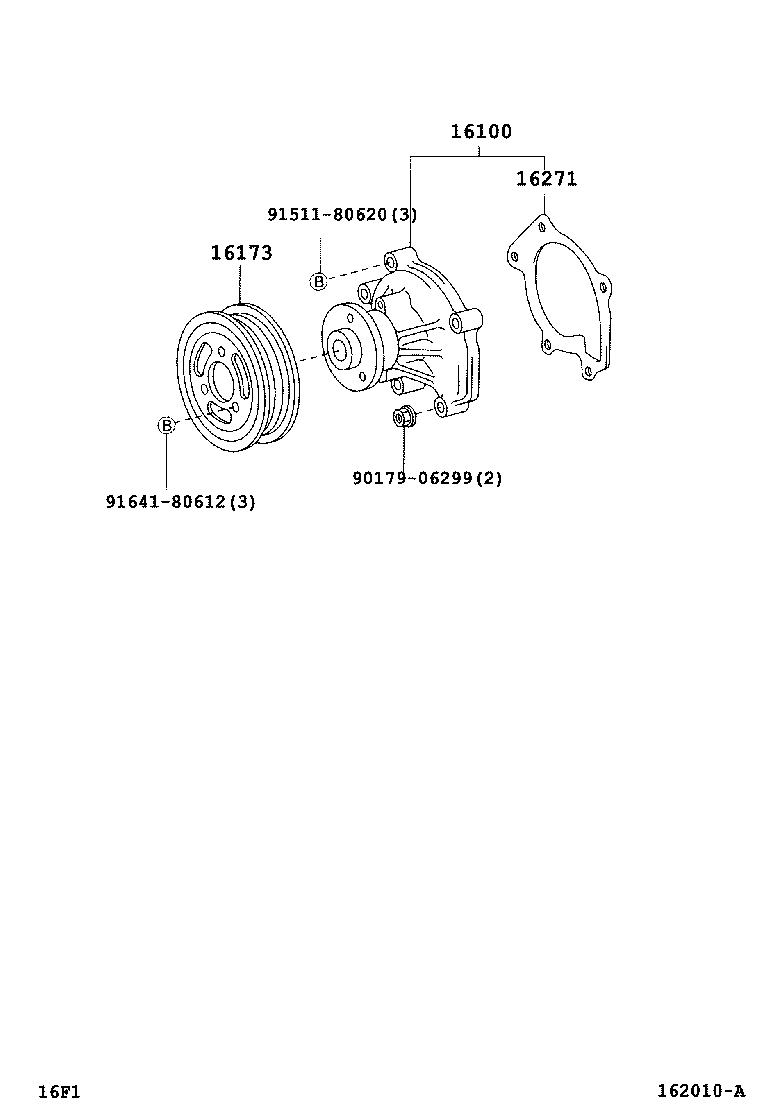

Click highlighted areas on diagram

diagram 16100 16173 16271 9017906299 9151180620 9164180612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-B9010

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
16173 - PULLEY, WATER PUMP
16173-BZ010

K3#..F601..BRU,IDN,TH

 1
16271 - GASKET, WATER PUMP
16271-97401

K3#..F601..BRU,IDN,TH

 1
Common parts
90179-06299
91511-80620
91641-80612
