F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

Click highlighted areas on diagram

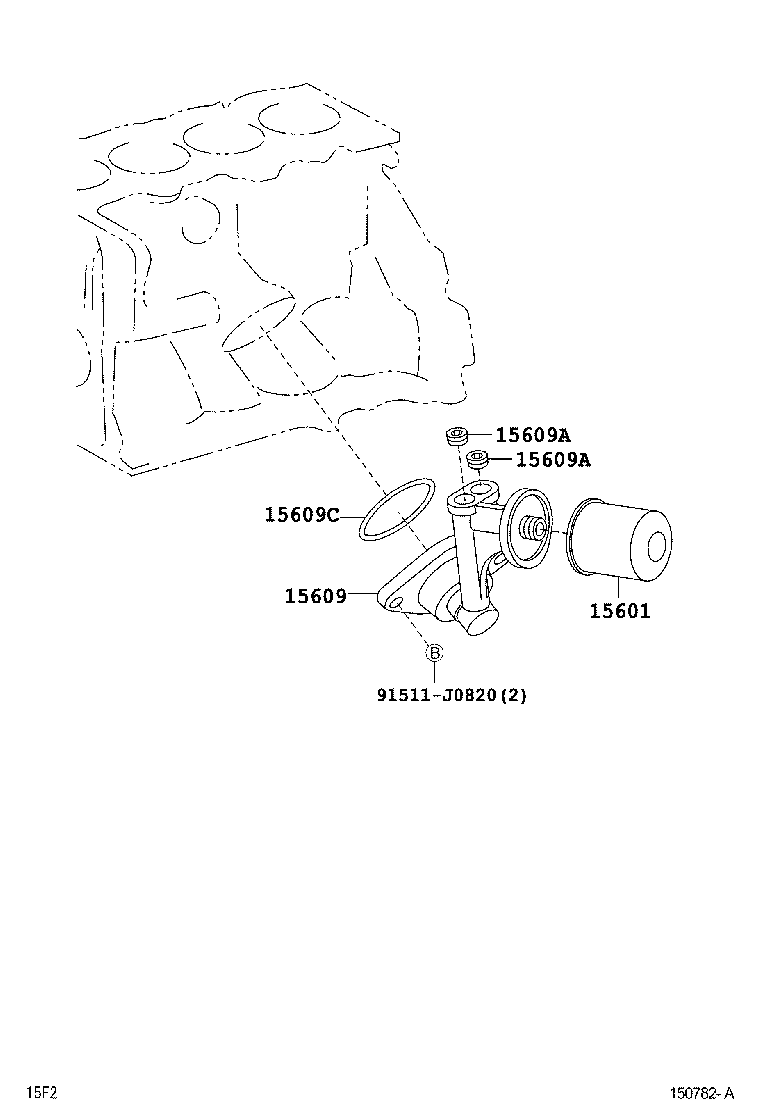

diagram 15601 15609 15609A 15609A 15609C 91511J0820
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-BZ010

K3#..F601..BRU,IDN,TH

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-BZ010

K3#..F601

 1
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90043-44019

K3#..F601

 2
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90043-44019

K3#..F601

 2
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
9004A-30011

K3#..F601

 1
Common parts
91511-J0820
