F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

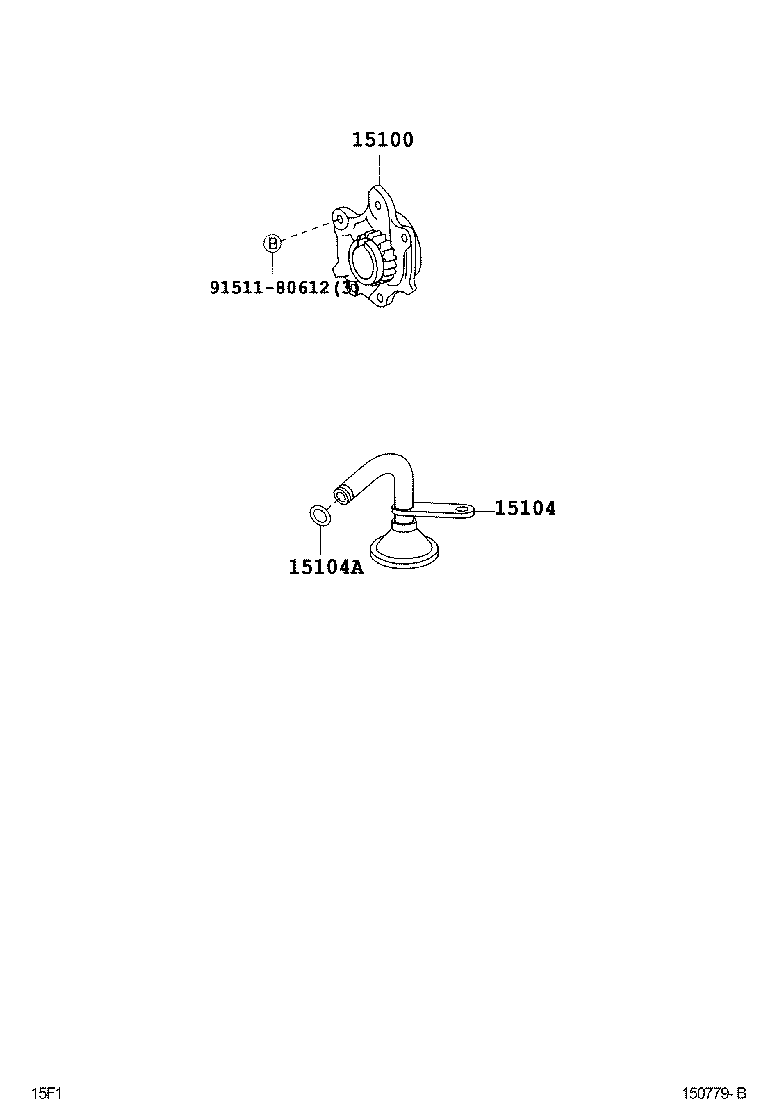

Click highlighted areas on diagram

diagram 15100 15104 15104A 9151180612
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-97401

K3#..F601

 1
15104 - STRAINER SUB-ASSY, OIL
15140-97403

K3#..F601

 1
15104A - RING, O(FOR OIL STRAINER)
96721-24016

K3#..F601

 1
96723-24016

K3#..F601

 1
Common parts
91511-80612
