F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)K3VE..BRU ; (0312-0608)K3#..5F..IDN,MA,TH

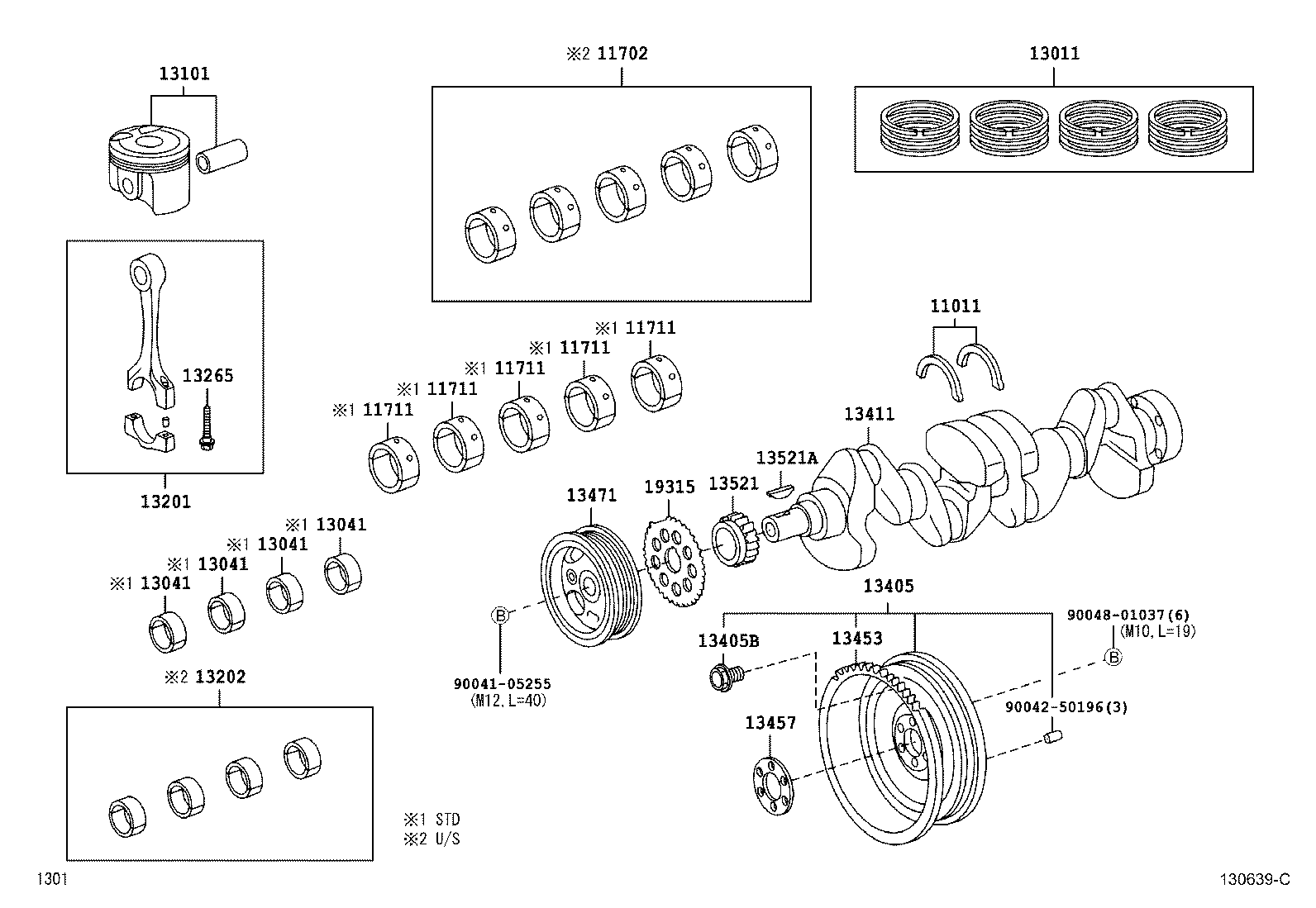

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13101 13201 13202 13265 13405 13405B 13411 13453 13457 13471 13521 13521A 19315 9004105255 9004250196 9004801037
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11704-97401

K3#..F601

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-9740104

K3#..F601

MARK 4,MARK 4

 5
11701-9740102

K3#..F601

MARK 2,MARK 2

 5
11701-9740105

K3#..F601

MARK 5,MARK 5

 5
11701-9740103

K3#..F601

MARK 3,MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-9740104

K3#..F601

MARK 4,MARK 4

 5
11701-9740102

K3#..F601

MARK 2,MARK 2

 5
11701-9740105

K3#..F601

MARK 5,MARK 5

 5
11701-9740103

K3#..F601

MARK 3,MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-9740104

K3#..F601

MARK 4,MARK 4

 5
11701-9740102

K3#..F601

MARK 2,MARK 2

 5
11701-9740105

K3#..F601

MARK 5,MARK 5

 5
11701-9740103

K3#..F601

MARK 3,MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-9740104

K3#..F601

MARK 4,MARK 4

 5
11701-9740102

K3#..F601

MARK 2,MARK 2

 5
11701-9740105

K3#..F601

MARK 5,MARK 5

 5
11701-9740103

K3#..F601

MARK 3,MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-9740104

K3#..F601

MARK 4,MARK 4

 5
11701-9740102

K3#..F601

MARK 2,MARK 2

 5
11701-9740105

K3#..F601

MARK 5,MARK 5

 5
11701-9740103

K3#..F601

MARK 3,MARK 3

 5
13041 - BEARING, CONNECTING ROD
13041-BZ010

K3#..F601..BRU,IDN,TH

 4
13041 - BEARING, CONNECTING ROD
13041-BZ010

K3#..F601..BRU,IDN,TH

 4
13041 - BEARING, CONNECTING ROD
13041-BZ010

K3#..F601..BRU,IDN,TH

 4
13041 - BEARING, CONNECTING ROD
13041-BZ010

K3#..F601..BRU,IDN,TH

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-BZ010

K3#..F601

O/S 0.50,REPAIR

 4
13101-BZ030

K3#..F601

STD

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-BZ010

K3#..F601

 4
13202 - BEARING SET, CONNECTING ROD
13204-97401

K3#..F601

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-97401

K3#..F601

 8
13405 - FLYWHEEL SUB-ASSY
13405-97401

K3#..F601..5F

 1
13405B - BOLT, FLYWHEEL SETTING
90041-09215

K3#..F601..5F

 6
13411 - CRANKSHAFT
13411-97401

K3#..F601

 1
13453 - GEAR, FLYWHEEL RING
13453-87104

K3#..F601..5F

 1
13457 - RING, FLYWHEEL SPACER
13457-97401

K3#..F601..5F

 1
13471 - PULLEY, CRANKSHAFT
13470-BZ010

K3#..F601

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-97401

K3#..F601

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90042-80034

K3#..F601

 1
Common parts
90041-05255
90042-50196
90048-01037
