F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

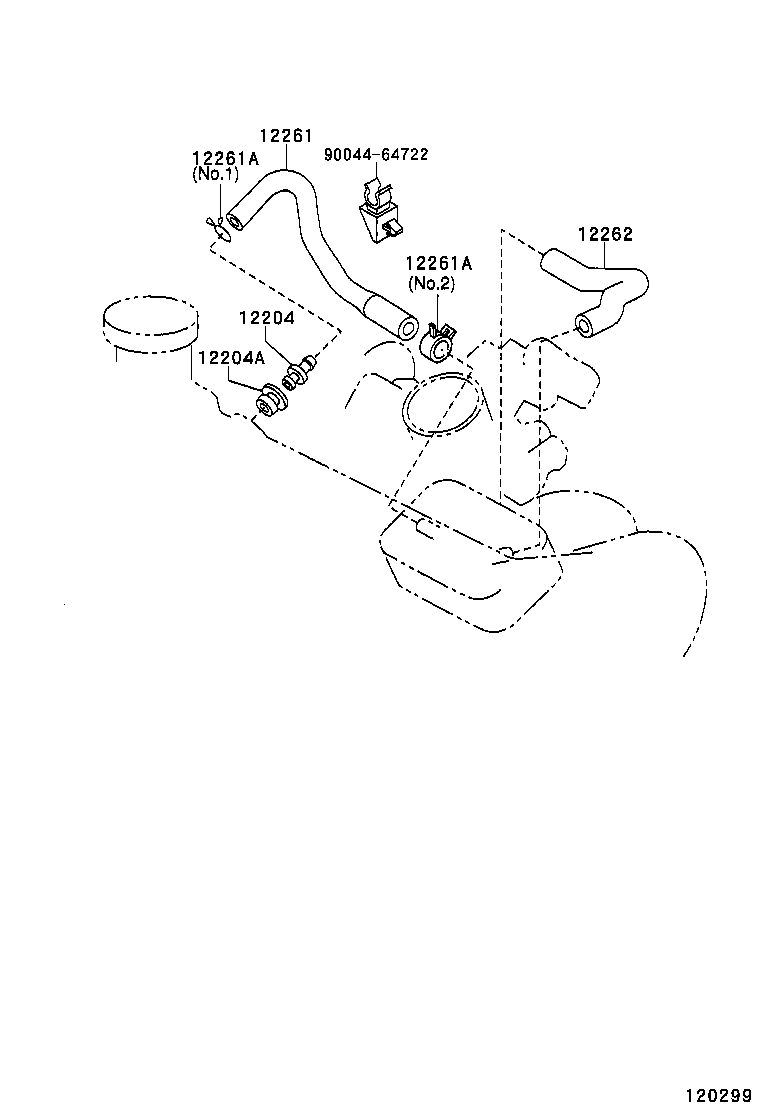

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 9004464722
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-97401

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

K3VE..F601..G,GL,LIMD,S

 1
12261 - HOSE, VENTILATION
12261-BZ020

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

K3DE..F601;K3VE..F601..G,GL,LIMD,S

NO.1

 1
90467-18003

K3DE..F601;K3VE..F601..G,GL,LIMD,S

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

K3DE..F601;K3VE..F601..G,GL,LIMD,S

NO.1

 1
90467-18003

K3DE..F601;K3VE..F601..G,GL,LIMD,S

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-BZ010

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
Common parts
90044-64722
