F601RM-GMMFJB (2005)
Toyota Avanza
Production
Dec 2005
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)

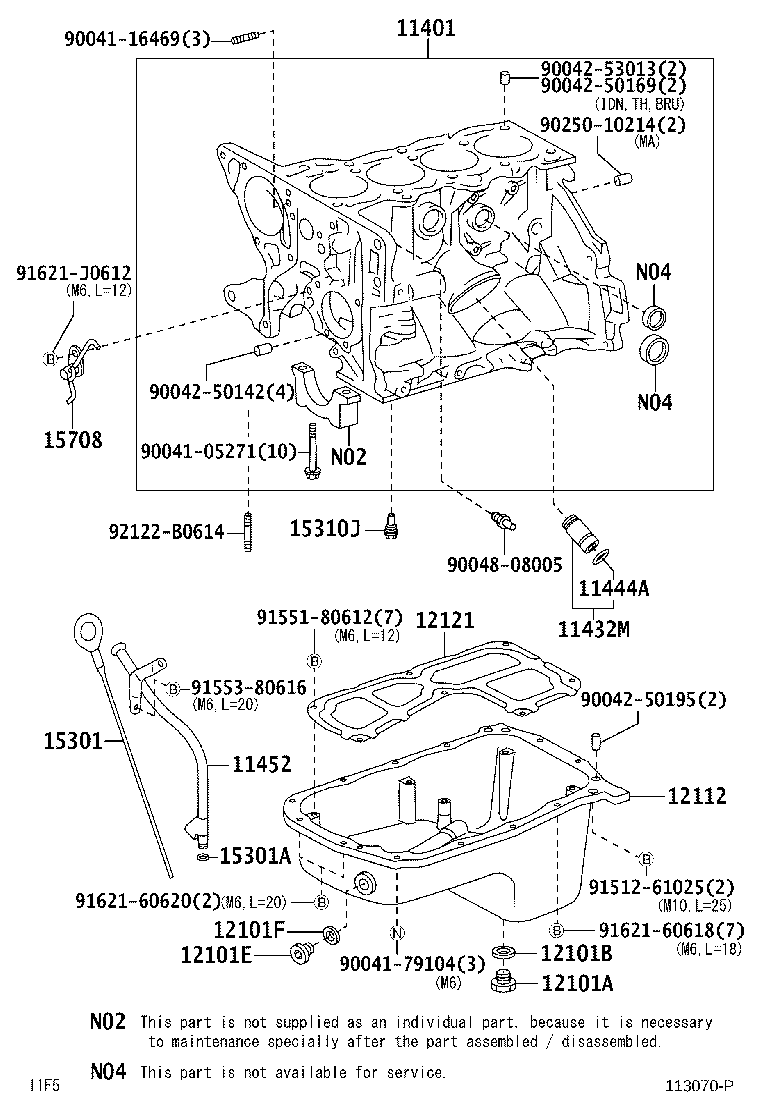

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-B0010 |
K3DE..F601;K3VE..F601..(G,GL,LIMD,S)..(BRU,IDN,TH) |
1 | ||
| 11432M - UNION(FOR CYLINDER BLOCK) | ||||
| 90044-04120 |
K3#..F601 |
1 | ||
| 11444A - RING, O | ||||
| 96723-24016 |
F601 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-BZ010 |
K3#..F601 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41041 |
K3#..F601 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
K3#..F601 |
1 | ||
| 12101E - PLUG, OIL PAN(FOR OIL COOLER) | ||||
| 90043-41076 |
K3#..F601 |
1 | ||
| 12101F - GASKET(FOR OIL COOLER) | ||||
| 90044-30290 |
K3#..F601 |
1 | ||
| 12112 - PAN, OIL NO.2 | ||||
| 12111-97403 |
K3#..F601 |
1 | ||
| 12111-B1040 |
K3#..F601 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-97402 |
K3#..F601 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-B0030 |
K3#..F601 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96721-19009 |
K3#..F601 |
1 | ||
| 15310J - REGULATOR ASSY, OIL | ||||
| 15310-97401 |
K3#..F601 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-97402 |
K3#..F601 |
1 | ||
| Common parts | ||||
| 90041-05271 | ||||
| 90041-16469 | ||||
| 90041-79104 | ||||
| 90042-50142 | ||||
| 90042-50169 | ||||
| 90042-50195 | ||||
| 90042-53013 | ||||
| 90048-08005 | ||||
| 90250-10214 | ||||
| 91512-61025 | ||||
| 91551-80612 | ||||
| 91553-80616 | ||||
| 91621-60618 | ||||
| 91621-60620 | ||||
| 91621-J0612 | ||||
| 92122-B0614 | ||||
