F601RM-GMMFJB (2005)

Toyota Avanza

Production Dec 2005 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)

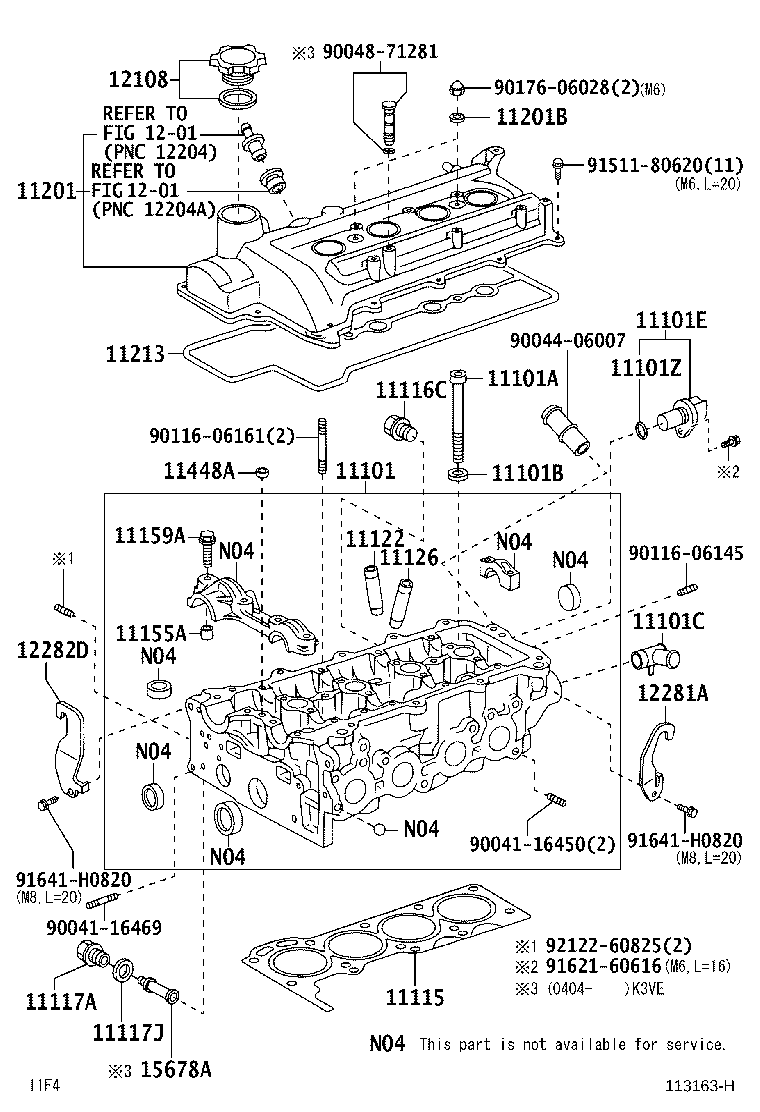

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101C 11101E 11101Z 11115 11116C 11117A 11117J 11122 11126 11155A 11159A 11201 11201B 11213 11448A 1201 1201 12108 12281A 12282D 15678A 9004116450 9004116469 9004406007 9004871281 9011606145 9011606161 9017606028 9151180620 9162160616 91641H0820 91641H0820 9212260825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-97913

K3DE..F601;K3VE..F601..G,S

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90041-10045

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90042-01637

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 10
11101E - SENSOR, CAM POSITION
19300-BZ020

K3#..F601..BRU,IDN,TH

 1
11115 - GASKET, CYLINDER HEAD
11115-BZ010

K3#..F601

T=0.41

 1
11116C - PLUG, TIGHT, NO.3
90043-39124

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14013

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
11155A - PIN, RING W/HEAD
90042-53010

K3DE..F601;K3VE..F601..S..BRU;K3VE..F601..(G,GL,LIMD)..(BRU,MA,TH)

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

K3DE..F601;K3VE..F601..S..BRU;K3VE..F601..(G,GL,LIMD)..(BRU,MA,TH)

 20
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-BZ010

K3#..F601

KYOUKOKU

 1
11448A - ORIFICE, CYLINDER HEAD OIL
11448-BZ010

K3DE..F601;K3VE..F601..G,GL,LIMD,S

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-BZ010

K3#..F601

 1
12281A - HANGER, ENGINE, NO.1
12281-97401

K3#..F601

BLACK

 1
12282D - HANGER, ENGINE, NO.2
12282-97403

K3#..F601

BLACK

 1
Common parts
90041-16450
90041-16469
90044-06007
90048-71281
90116-06145
90116-06161
90176-06028
91511-80620
91621-60616
91641-H0820
92122-60825
Linked diagrams
1201
