F601RM-GMMFJ (2006)
Toyota Avanza
(0608- )RHD..GEN,IDN,MA,TH

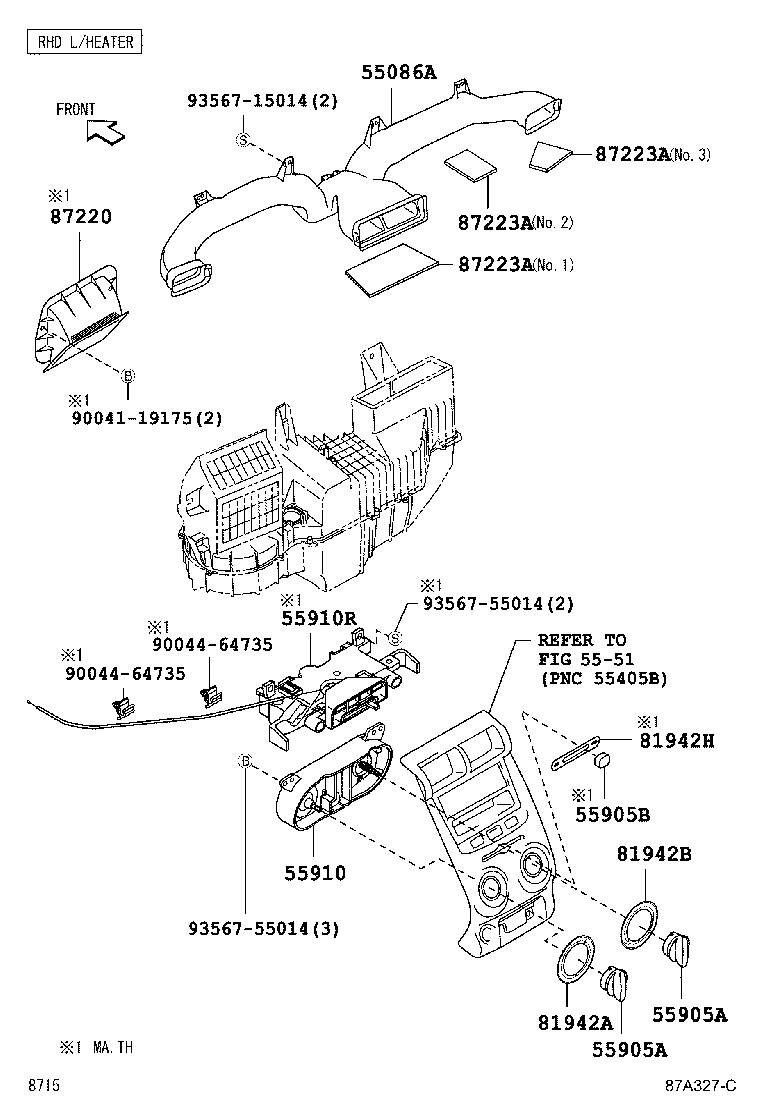

RHD L/HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-BZ010 |
F601 |
1 | ||
| 55086-BZ050 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D040 |
F601 |
2 | ||
| 55905-BZ080B0 |
F601..CTM,J;F602..S..TH;F601..DLX..GEN;F602..(E,S)..MA DK.GRAY,TRIM1# |
2 | ||
| 55905-BZ080E1 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) ASH BROWN,TRIM4# |
2 | ||
| 55905-BZ080E0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) SANDAL WOOD,TRIM0# |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D040 |
F601 |
2 | ||
| 55905-BZ080B0 |
F601..CTM,J;F602..S..TH;F601..DLX..GEN;F602..(E,S)..MA DK.GRAY,TRIM1# |
2 | ||
| 55905-BZ080E1 |
F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH) ASH BROWN,TRIM4# |
2 | ||
| 55905-BZ080E0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) SANDAL WOOD,TRIM0# |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-BZ010 |
F602..G..GEN;F602..MA,MXC,PHL,SA,TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-BZ010 |
F601 |
1 | ||
| 55910-BZ100 |
F602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA,TH);F601..(E,G,J,XI)..(GEN,IDN,PHL) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-BZ010 |
F601 |
1 | ||
| 81942-BZ240 |
F602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA,TH);F601..(E,G,J,XI)..(GEN,IDN,PHL) |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-BZ020 |
F601 |
1 | ||
| 81942-BZ250 |
F602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA,TH);F601..(E,G,J,XI)..(GEN,IDN,PHL) |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-BZ220 |
F602..G..GEN;F602..MA,MXC,PHL,SA,TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ050 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA NO.3 |
1 | ||
| 87223-BZ010 |
F601 NO.3 |
1 | ||
| 87223-BZ030 |
F601 NO.2 |
1 | ||
| 87223-BZ020 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA NO.1 |
1 | ||
| 87223-BZ020 |
F601 NO.1 |
1 | ||
| 87223-BZ040 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) NO.2 |
5 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ050 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA NO.3 |
1 | ||
| 87223-BZ010 |
F601 NO.3 |
1 | ||
| 87223-BZ030 |
F601 NO.2 |
1 | ||
| 87223-BZ020 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA NO.1 |
1 | ||
| 87223-BZ020 |
F601 NO.1 |
1 | ||
| 87223-BZ040 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) NO.2 |
5 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ050 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA NO.3 |
1 | ||
| 87223-BZ010 |
F601 NO.3 |
1 | ||
| 87223-BZ030 |
F601 NO.2 |
1 | ||
| 87223-BZ020 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA NO.1 |
1 | ||
| 87223-BZ020 |
F601 NO.1 |
1 | ||
| 87223-BZ040 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) NO.2 |
5 | ||
| Common parts | ||||
| 90041-19175 | ||||
| 90044-64735 | ||||
| 93567-15014 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 5551 | ||||
