F601RM-GMMFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

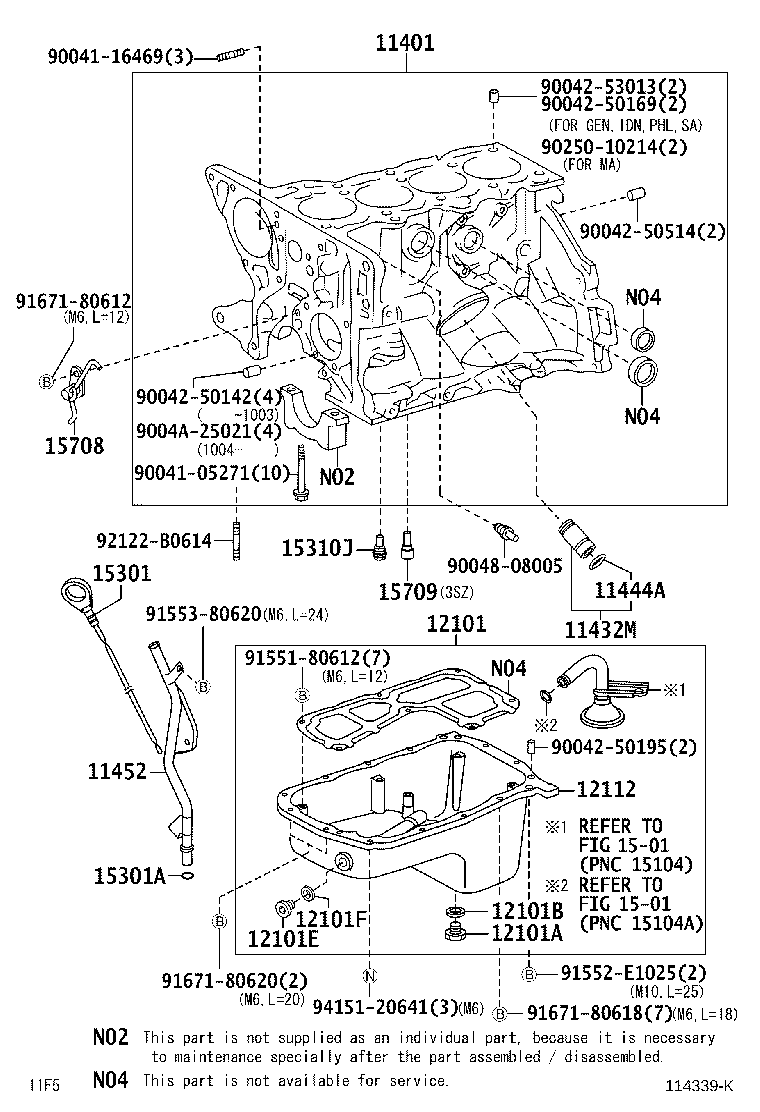

Click highlighted areas on diagram

diagram 11401 11432M 11444A 11452 12101 12101A 12101B 12101E 12101F 12112 1501 1501 15301 15301A 15310J 15708 15709 9004105271 9004116469 9004250142 9004250169 9004250195 9004250514 9004253013 9004808005 9004A25021 9025010214 9155180612 91552E1025 9155380620 9167180612 9167180618 9167180620 92122B0614 9415120641
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-B9500

K3VE..F601..GEN,IDN,PHL,SA

 1
11432M - UNION(FOR CYLINDER BLOCK)
90044-04120

K3#..F601

 1
90044-04120

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
11444A - RING, O
96723-24016

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
96723-24016

F601

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-BZ050

K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
11452-BZ010

K3#..F601

 1
12101 - PAN SUB-ASSY, OIL
12101-B1040

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90043-41041

K3VE,3SZVE..F60#

 1
90043-41041

K3#..F601

 1
90043-41087

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90044-30281

K3#..F601

 1
90044-30281

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
12101E - PLUG, OIL PAN(FOR OIL COOLER)
90043-41076

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
90043-41076

K3#..F601

 1
12101F - GASKET(FOR OIL COOLER)
90044-30290

K3#..F601

 1
90044-30290

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
12112 - PAN, OIL NO.2
12111-97403

K3#..F601

 1
12111-B1040

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-B0030

K3#..F601

 1
15301-BZ040

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96721-19009

K3#..F601

 1
96721-19009

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15310J - REGULATOR ASSY, OIL
15310-97401

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15310-97401

K3#..F601

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-97402

K3#..F601

 1
15708-97402

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
Common parts
90041-05271
90041-16469
90042-50142
90042-50169
90042-50195
90042-50514
90042-53013
90048-08005
9004A-25021
90250-10214
91551-80612
91552-E1025
91553-80620
91671-80612
91671-80618
91671-80620
92122-B0614
94151-20641
Linked diagrams
1501
