F601RM-GMMEJ (2003)
Toyota Avanza
Production
Dec 2003
-
Aug 2006
Engine
K3DE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )

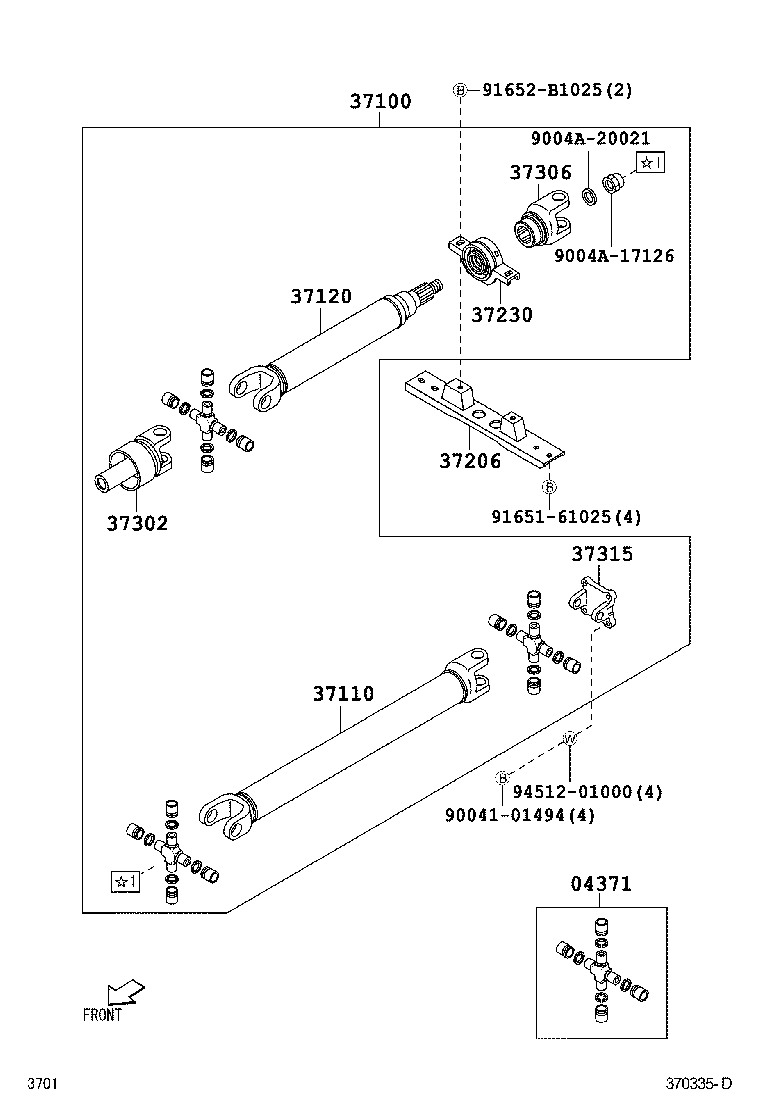

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-BZ030 |
F601 |
3 | ||
| 04371-BZ010 |
F601 |
1 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37110-BZ010 |
F601..5F..(BRU,IDN,TH) |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37101-BZ010 |
F601 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37104-BZ010 |
F601 |
1 | ||
| 37206 - BRACKET SUB-ASSY, CENTER SUPPORT BEARING | ||||
| 37231-BZ010 |
F601..5F |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-BZ010 |
F601 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-BZ010 |
F601..5F |
1 | ||
| 37306 - YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER | ||||
| 37306-BZ010 |
F601 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-BZ010 |
F601 |
1 | ||
| Common parts | ||||
| 90041-01494 | ||||
| 9004A-17126 | ||||
| 9004A-20021 | ||||
| 91651-61025 | ||||
| 91652-B1025 | ||||
| 94512-01000 | ||||
