F601RM-GMMEJ (2003)

Toyota Avanza

Production Dec 2003 - Aug 2006
Engine K3DE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0608)K3DE

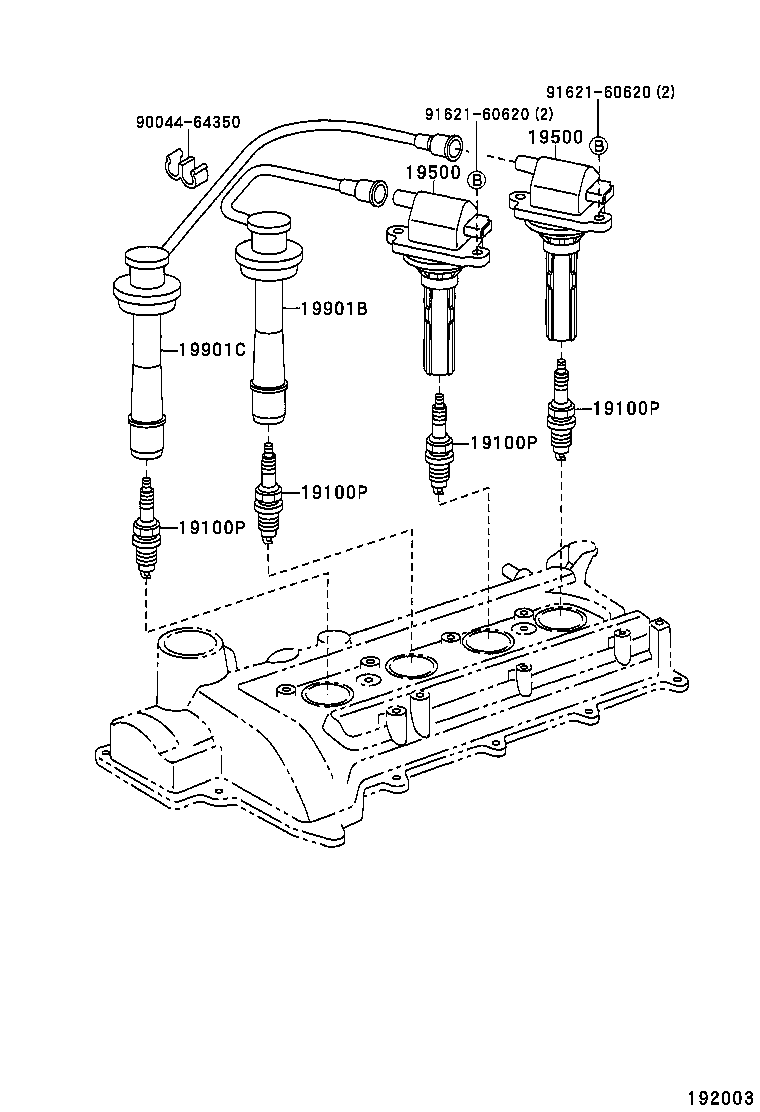

Click highlighted areas on diagram

diagram 19100P 19100P 19100P 19100P 19500 19500 19901B 19901C 9004464350 9162160620 9162160620
Part # Description Qty Price
19100P - PLUG, SPARK
9004A-91020

K3DE..F601

BKR6E

 4
9004A-91016

K3DE..F601

K20PR-U

 4
19100P - PLUG, SPARK
9004A-91020

K3DE..F601

BKR6E

 4
9004A-91016

K3DE..F601

K20PR-U

 4
19100P - PLUG, SPARK
9004A-91020

K3DE..F601

BKR6E

 4
9004A-91016

K3DE..F601

K20PR-U

 4
19100P - PLUG, SPARK
9004A-91020

K3DE..F601

BKR6E

 4
9004A-91016

K3DE..F601

K20PR-U

 4
19500 - COIL ASSY, IGNITION
19500-B0010

K3DE..F601

 2
19500 - COIL ASSY, IGNITION
19500-B0010

K3DE..F601

 2
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90048-58297

K3DE..F601

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90048-58298

K3DE..F601

 1
Common parts
90044-64350
91621-60620
