F601RM-GMDFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )GEN,IDN,MA,PHL,SA,TH

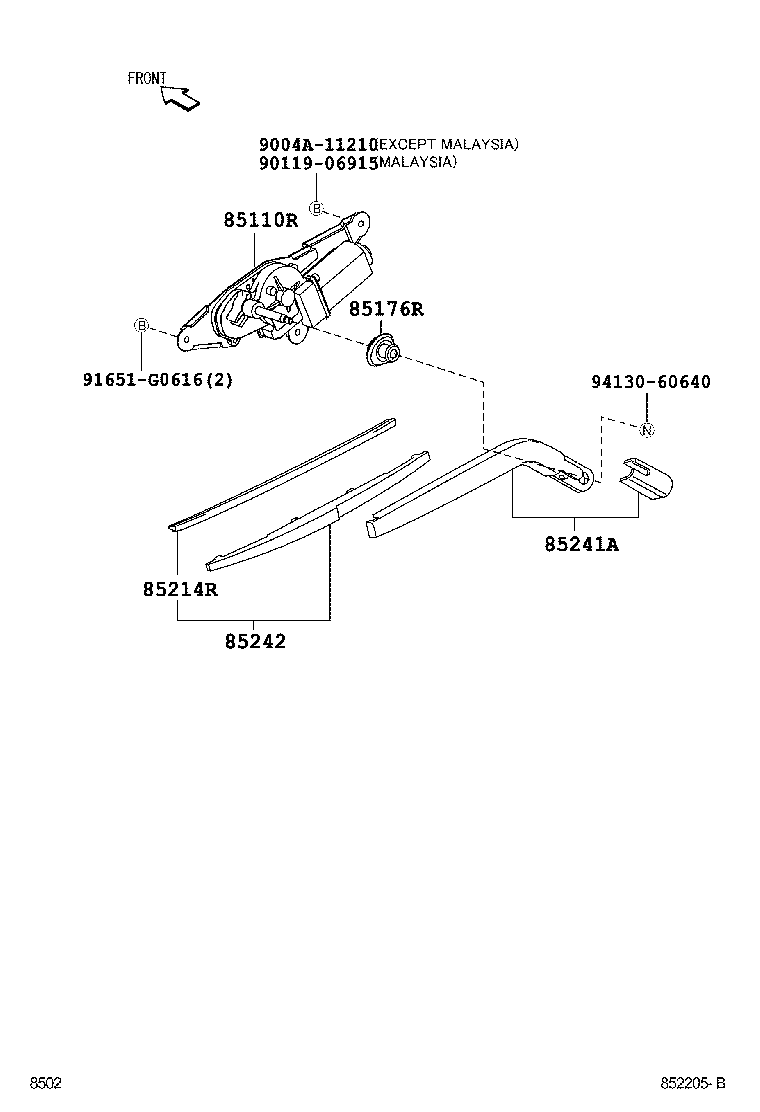

Click highlighted areas on diagram

diagram 85110R 85176R 85214R 85241A 85242 9004A11210 9011906915 91651G0616 9413060640
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-BZ010

F60#..GEN,IDN,PHL,SA,TH

 1
85176R - CAP, REAR WIPER LINK
85176-BZ010

F60#..GEN,IDN,PHL,SA,TH

 1
85214R - RUBBER, REAR WIPER
85243-BZ020

F602..GEN,IDN,PHL,SA,TH;F601..5F..(GEN,IDN,PHL,SA)

 1
85243-BZ020

F60#..GEN,IDN,PHL,SA,TH

 1
85241A - ARM, REAR WIPER
85241-BZ020

F60#..GEN,IDN,PHL,SA,TH

 1
85242 - BLADE, RR WIPER
85242-BZ070

F60#..GEN,IDN,PHL,SA,TH

 1
85242-BZ010

F60#..GEN,IDN,PHL,SA,TH

 1
Common parts
9004A-11210
90119-06915
91651-G0616
94130-60640
