F601RM-GMDFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )S

Click highlighted areas on diagram

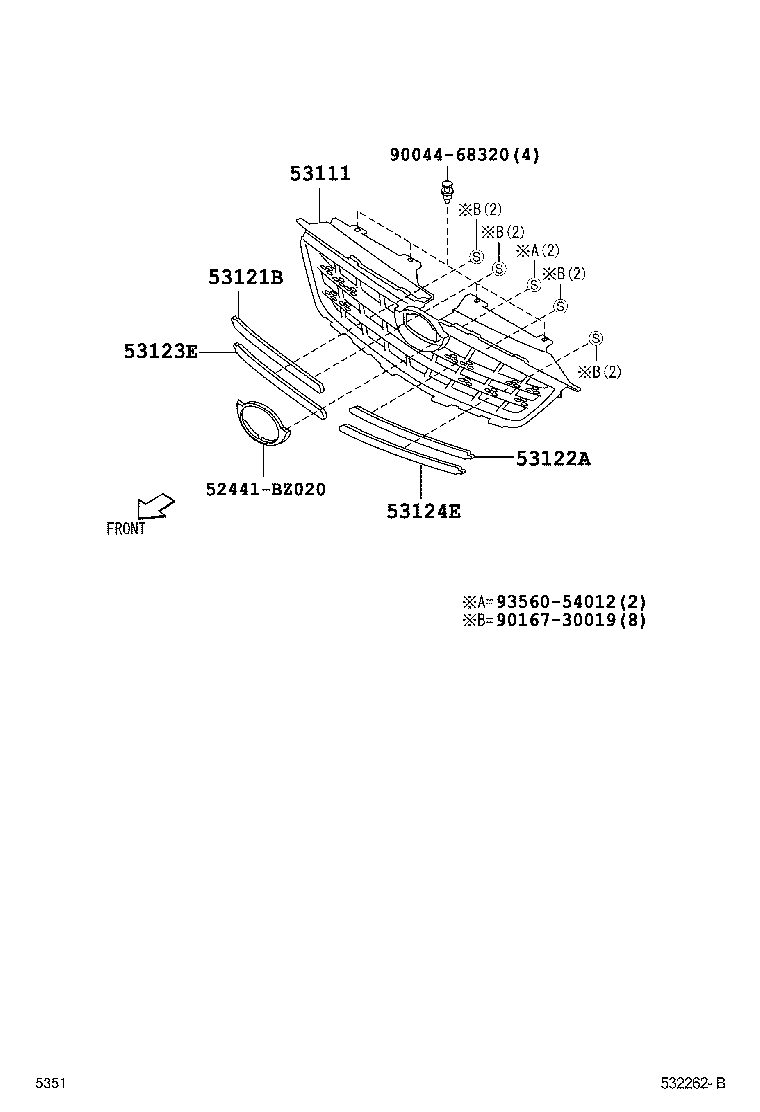

diagram 52441BZ020 53111 53121B 53122A 53123E 53124E 9004468320 9016730019 9356054012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-BZ080C0

F601..G;F602..(E,G,GL,J)..(MXC,PHL,TH)

BLACK MC.,209

 1
53111-BZ100

F601..5F..MA;F60#..(CTM,DLX,E,J,STD,XI)..(IDN,PHL,SA)

 1
Common parts
52441-BZ020
90044-68320
90167-30019
93560-54012

(0608- )CTM,DLX,E,G,GL,J,STD,XI

Click highlighted areas on diagram

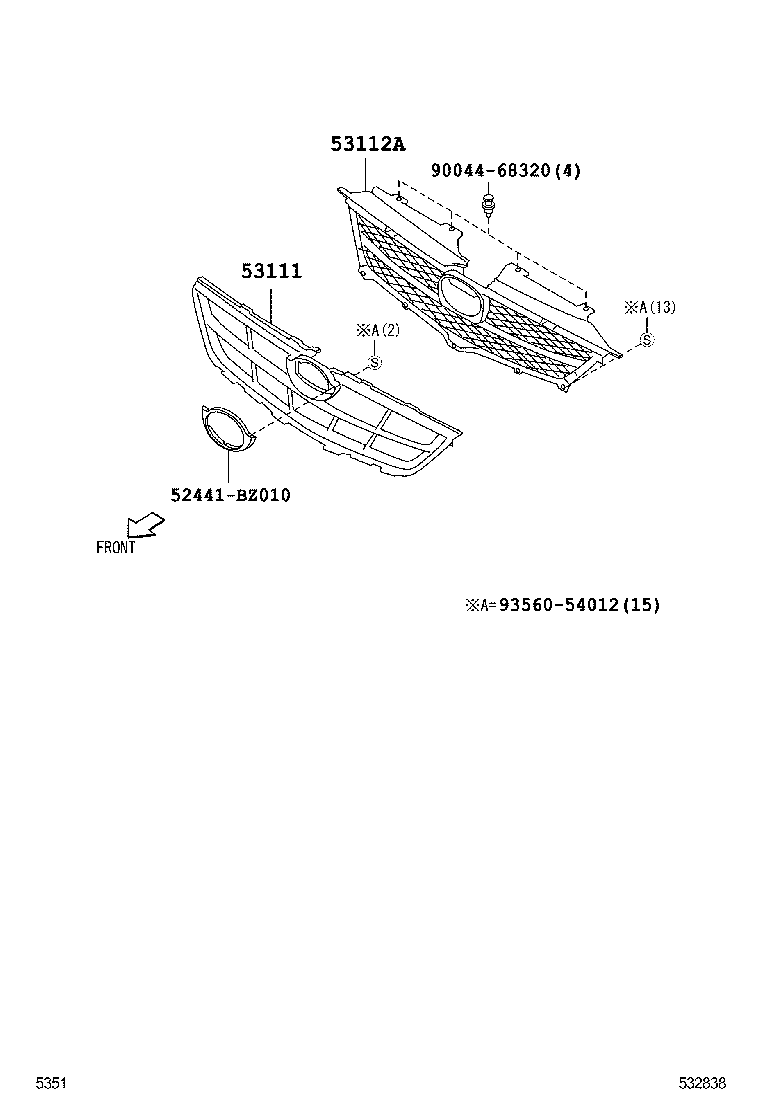

diagram 52441BZ010 53111 53112A 9004468320 9356054012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-BZ080C0

F601..G;F602..(E,G,GL,J)..(MXC,PHL,TH)

BLACK MC.,209

 1
53111-BZ100

F601..5F..MA;F60#..(CTM,DLX,E,J,STD,XI)..(IDN,PHL,SA)

 1
53112A - GRILLE, RADIATOR, LOWER
53112-BZ070

F601..5F..MA;F602..DLX,E,G,GL,J;F601..GEN,IDN,PHL,SA

 1
Common parts
52441-BZ010
90044-68320
93560-54012
