F601RM-GMDFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

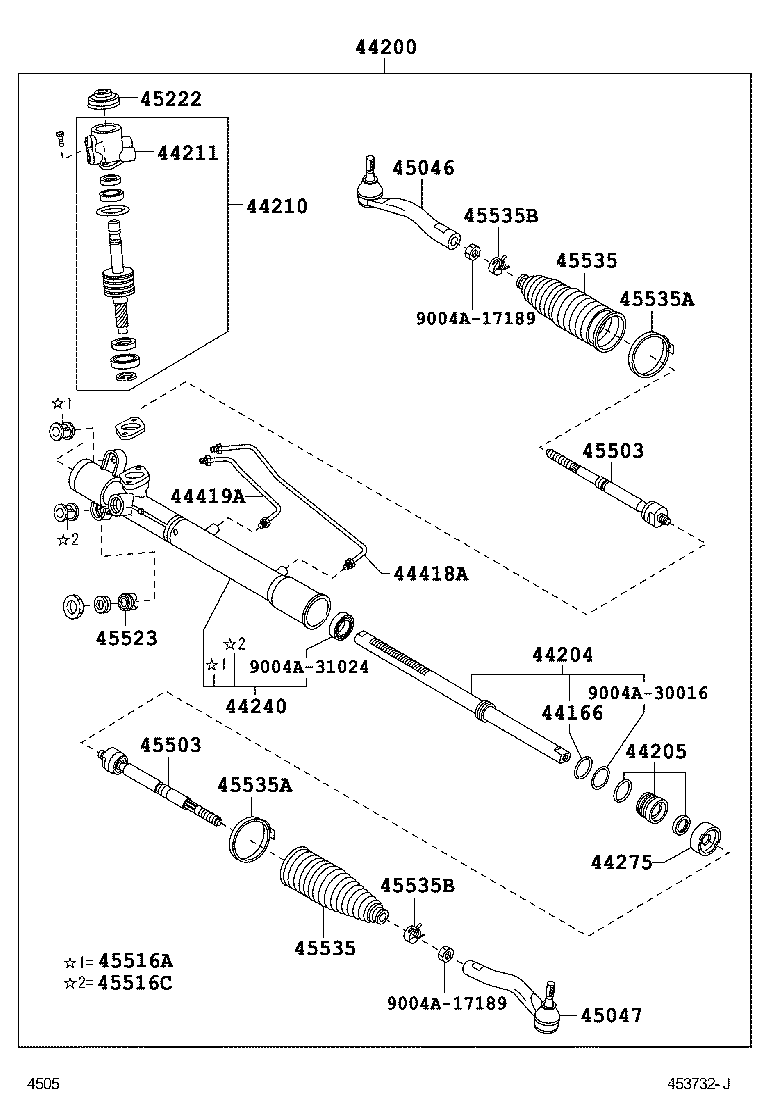

ILLUST NO. 3 OF 4(0709- )F601..RHD

Click highlighted areas on diagram

diagram 44166 44200 44204 44205 44210 44211 44240 44275 44418A 44419A 45046 45047 45222 45503 45503 45516A 45516C 45523 45535 45535 45535A 45535A 45535B 45535B 9004A17189 9004A17189 9004A30016 9004A31024
Part # Description Qty Price
44166 - RING, SEAL, NO.2
44166-BZ040

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44200 - LINK ASSY, POWER STEERING
44200-BZ011

F601..RHD..(GEN,IDN,SA)

 1
44200-BZ010

F601

 1
44200-BZ060

F601..RHD..(GEN,IDN,SA)

 1
44200-BZ062

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44200-BZ061

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44204 - RACK SUB-ASSY, POWER STEERING
44204-BZ050

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44205 - STOPPER SUB-ASSY, CYLINDER END
44205-BZ040

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-BZ060

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44211 - HOUSING, CONTROL VALVE
44022-BZ050

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44240 - HOUSING ASSY, POWER STEERING RACK
44240-BZ060

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44275 - STOPPER, CYLINDER END
44275-BZ050

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-BZ050

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-BZ050

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-BZ010

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
45046-BZ010

F601

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-BZ010

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
45047-BZ010

F601

 1
45222 - COVER, STEERING GEAR DUST
45222-BZ050

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
45503 - END SUB-ASSY, STEERING RACK
45503-BZ010

F601

 2
45503-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
45503 - END SUB-ASSY, STEERING RACK
45503-BZ010

F601

 2
45503-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-BZ020

F601

 1
45516-BZ140

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
45516-BZ020

F601..RHD

 1
45516C - BUSH, STEERING RACK HOUSING, NO.2
45516-BZ110

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
45516-BZ020

F601

 1
45516-B4030

F601..RHD..(GEN,IDN,SA)

 1
45516-BZ020

F601..RHD..(GEN,IDN,SA)

 1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-BZ060

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-BZ010

F601

 2
45535-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
45535 - BOOT, STEERING RACK, NO.1
45535-BZ010

F601

 2
45535-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
9004A-46136

F601

 2
9004A-46136

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
9004A-46136

F601

 2
9004A-46136

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
9004A-46138

F601

 2
9004A-46138

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
9004A-46138

F601

 2
9004A-46138

F601..5F..MA;F601..RHD..(GEN,IDN,SA)

 2
Common parts
9004A-17189
9004A-30016
9004A-31024
