Toyota Avanza F601 SWITCH & RELAY & COMPUTER

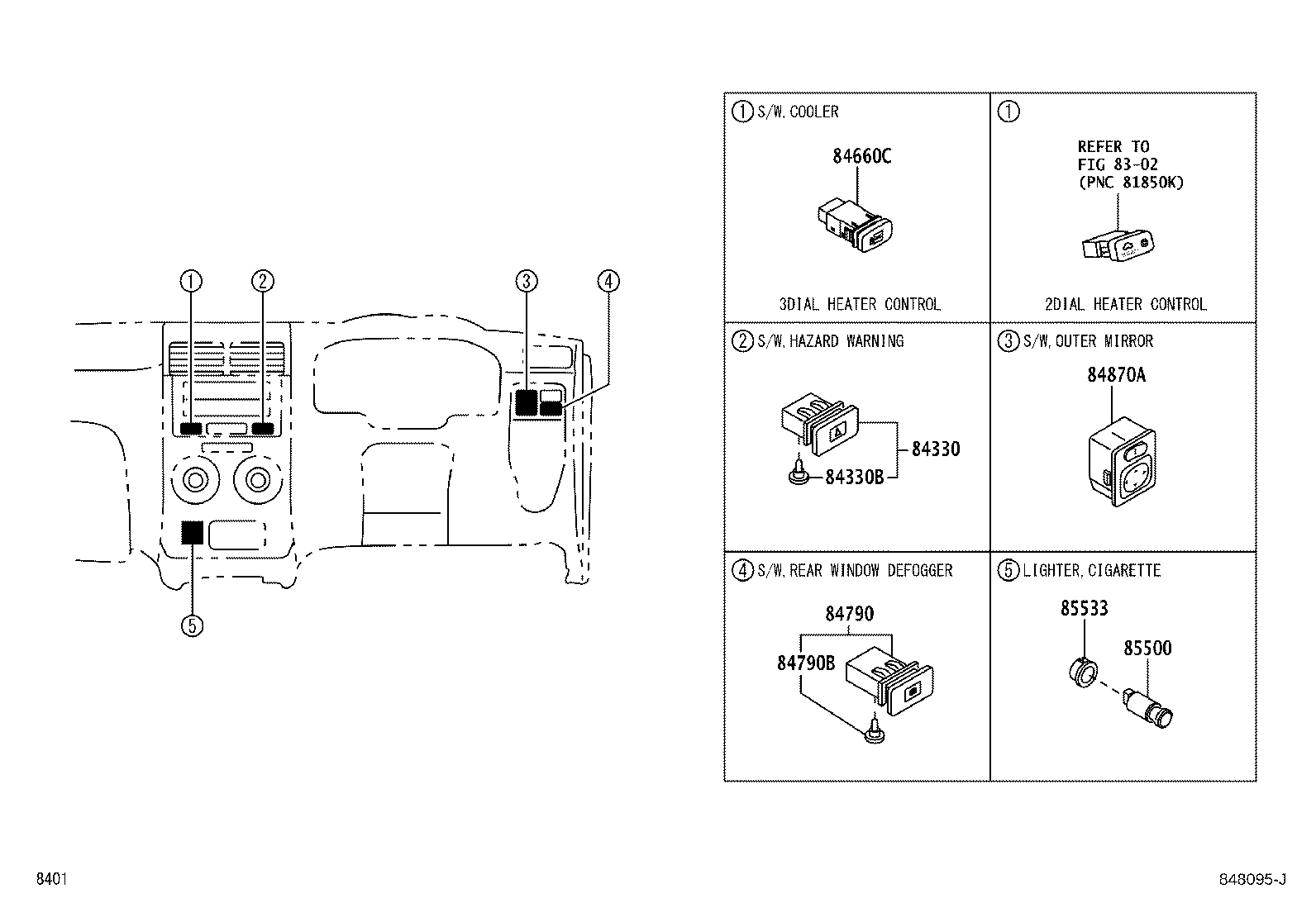

Part #	Description	Period	Qty
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-BZ120	F60#..GEN,IDN,MXC,PHL,SA,TH	04/2010 - 12/2999	1
84332-B0010	F601	12/2003 - 08/2006	1
84332-B0010	F60#..GEN,IDN,MXC,PHL,SA,TH	08/2006 - 04/2010	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-B5010	F60#..GEN,IDN,MXC,PHL,SA,TH 14V 0.91W	08/2006 - 04/2010	1
84999-B5010	F601 14V 0.91W	12/2003 - 08/2006	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-97402	F601..E..TH;F601..G,GL,LIMD,S	12/2003 - 08/2006	1
84870-97402	F601..G;F601..5F..MA;F602..E,G,GL,J,S	08/2006 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-87505	F601	12/2003 - 08/2006	1
85500-87505	F602;F601..5F..MA;F601..GEN,IDN,PHL,SA	08/2006 - 12/2999	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-87701	F601	12/2003 - 08/2006	1
85533-BZ050	F60#..GEN,IDN,MXC,PHL,SA,TH	07/2008 - 12/2999	1
85533-87601	F60#..GEN,IDN,MXC,PHL,SA,TH	08/2006 - 07/2008	1
Linked diagrams
8302

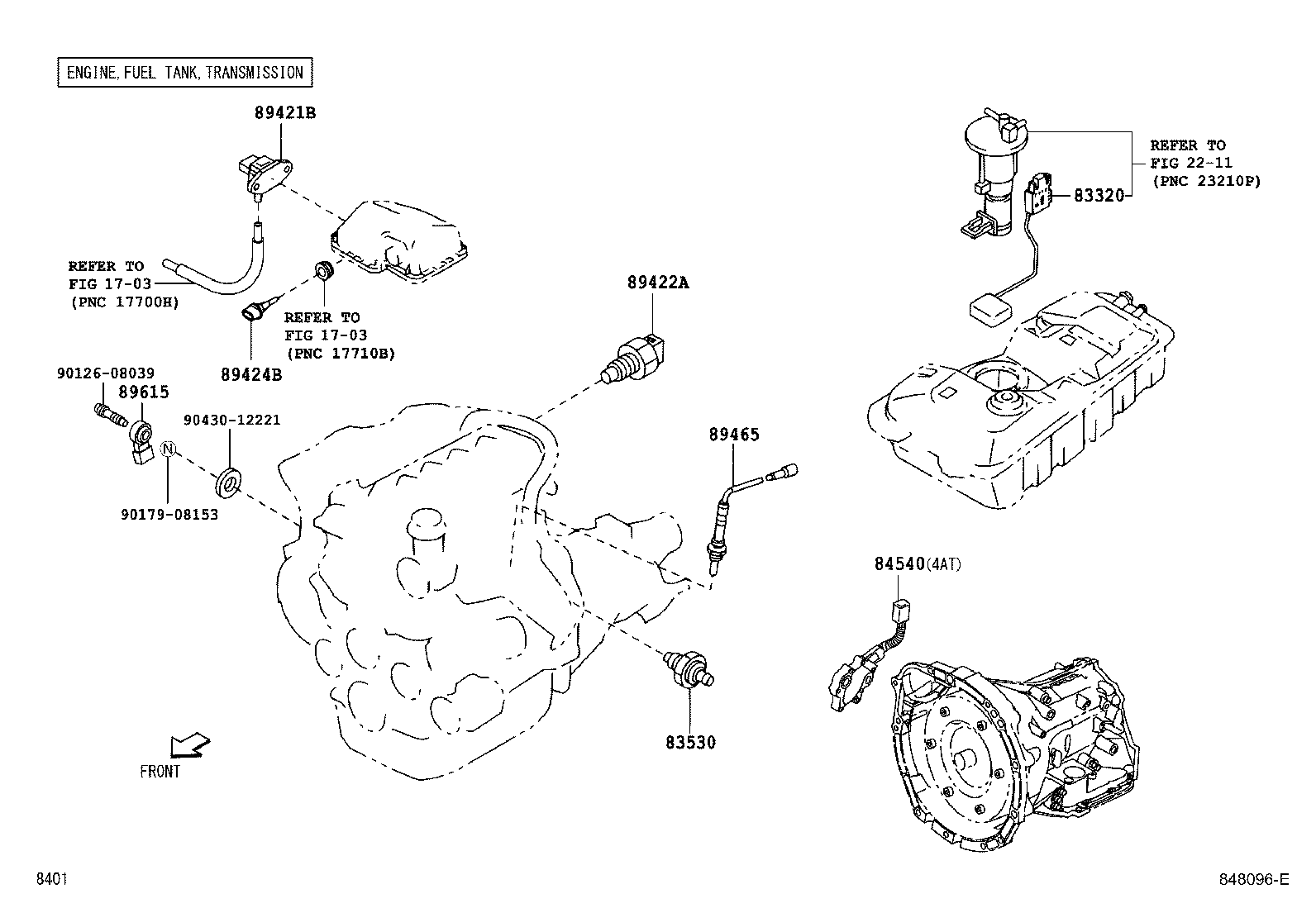

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83301-BZ010	F602..LHD..4AT;F60#..RHD..(E,G,S,XI)..(GEN,IDN,TH)	08/2006 - 10/2011	1
83301-BZ010	F601..BRU,IDN,TH	12/2003 - 08/2006	1
83301-BZ040	F601..CTM,DLX,J,STD;F602..5F..(DLX,G,GL)..(GEN,PHL,SA)	08/2006 - 01/2012	1
83301-BZ011	F602..LHD..4AT;F60#..RHD..(E,G,S,XI)..(GEN,IDN,TH)	11/2011 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-97401	F601	12/2003 - 08/2006	1
83530-97401	F602;F601..5F..MA;F601..GEN,IDN,PHL,SA	08/2006 - 12/2999	1
89421B - SENSOR, VACUUM
89421-BZ010	F602;F601..5F..MA;F601..GEN,IDN,PHL,SA	08/2006 - 12/2999	1
89421-BZ010	F601..BRU,IDN,TH	12/2003 - 08/2006	1
89422A - SENSOR, WATER TEMPERATURE
89422-BZ010	F601..BRU,IDN,TH	12/2003 - 08/2006	1
89422-BZ010	F60#..GEN,IDN,MXC,PHL,SA,TH	08/2006 - 12/2999	1
89424B - SWITCH, INLET AIR TEMPERATURE
89424-87703	F602;F601..5F..MA;F601..GEN,IDN,PHL,SA	08/2006 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-BZ070	F60#..GEN,IDN,PHL,SA	08/2006 - 12/2999	1
89615 - SENSOR, KNOCK CONTROL
89615-BZ030	F60#..GEN,IDN,MXC,PHL,SA,TH	10/2007 - 12/2999	1
89615-20090	F60#..GEN,IDN,MXC,PHL,SA,TH	08/2006 - 10/2007	1
89615-BZ020	F601..BRU,IDN,TH	12/2003 - 08/2006	1
Common parts
90126-08039
90179-08153
90430-12221
Linked diagrams
1703
2211

F601RM-GMDFJJ (2006)
