F601RM-GMDFJJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

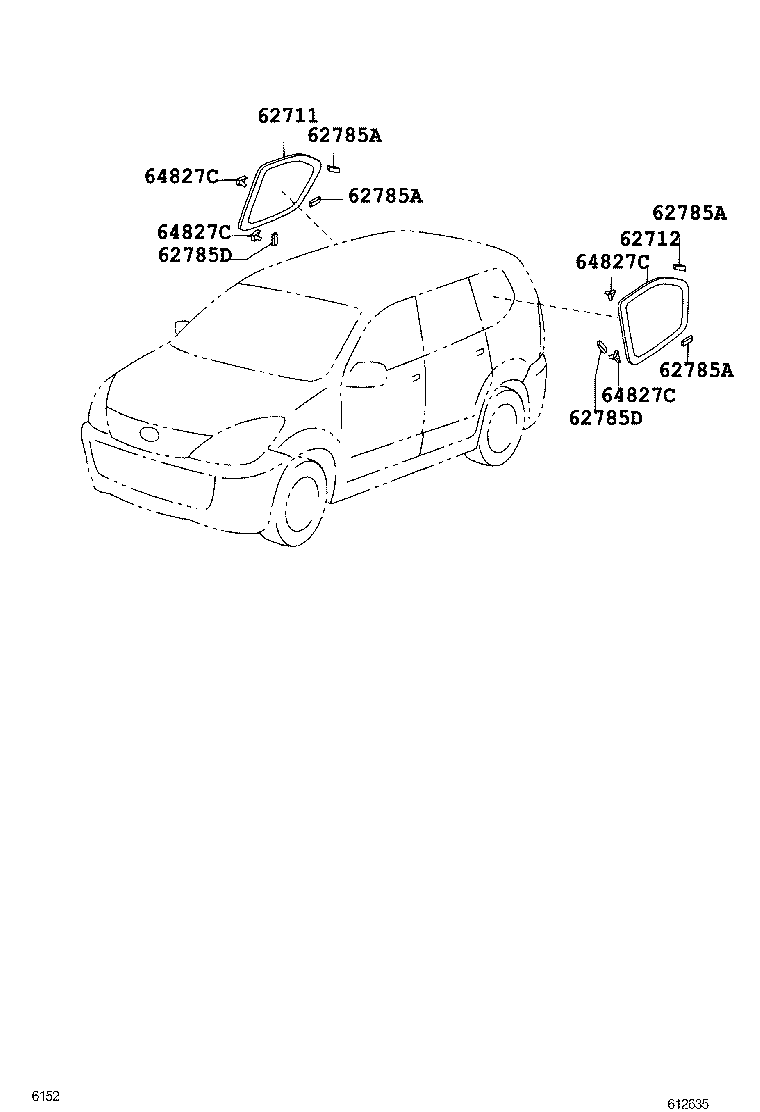

Click highlighted areas on diagram

diagram 62711 62712 62785A 62785A 62785A 62785A 62785D 62785D 64827C 64827C 64827C 64827C
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-BZ020

F602..PHL;F601..GEN,IDN,PHL;F602..S..(GEN,IDN)

MULIA

 1
62711-BZ040

F602..IDN;F601..5F..IDN

ASAHIMAS

 1
62711-BZ190

F60#..IDN

MULIA GLASS

 1
62711-BZ010

F60#..IDN

ASAHIMAS

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-BZ010

F60#..IDN

ASAHIMAS

 1
62712-BZ020

F602..PHL;F601..GEN,IDN,PHL;F602..S..(GEN,IDN)

MULIA

 1
62712-BZ040

F602..IDN;F601..5F..IDN

ASAHIMAS

 1
62712-BZ190

F60#..IDN

MULIA GLASS

 1
62785A - SPACER, QUARTER WINDOW GLASS
64818-BZ010

F601

 4
64818-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 4
62785A - SPACER, QUARTER WINDOW GLASS
64818-BZ010

F601

 4
64818-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 4
62785A - SPACER, QUARTER WINDOW GLASS
64818-BZ010

F601

 4
64818-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 4
62785A - SPACER, QUARTER WINDOW GLASS
64818-BZ010

F601

 4
64818-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 4
62785D - SPACER, QUARTER WINDOW GLASS
61777-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
61777-BZ010

F601

 2
62785D - SPACER, QUARTER WINDOW GLASS
61777-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
61777-BZ010

F601

 2
64827C - CLIP, QUARTER WINDOW GLASS
62775-B0010

F601

 4
62775-BZ020

F60#..GEN,IDN,MXC,PHL,SA,TH

 4
64827C - CLIP, QUARTER WINDOW GLASS
62775-B0010

F601

 4
62775-BZ020

F60#..GEN,IDN,MXC,PHL,SA,TH

 4
64827C - CLIP, QUARTER WINDOW GLASS
62775-B0010

F601

 4
62775-BZ020

F60#..GEN,IDN,MXC,PHL,SA,TH

 4
64827C - CLIP, QUARTER WINDOW GLASS
62775-B0010

F601

 4
62775-BZ020

F60#..GEN,IDN,MXC,PHL,SA,TH

 4
