F601RM-GMDEJ (2003)

Toyota Avanza

Production Dec 2003 - Aug 2006
Engine K3DE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

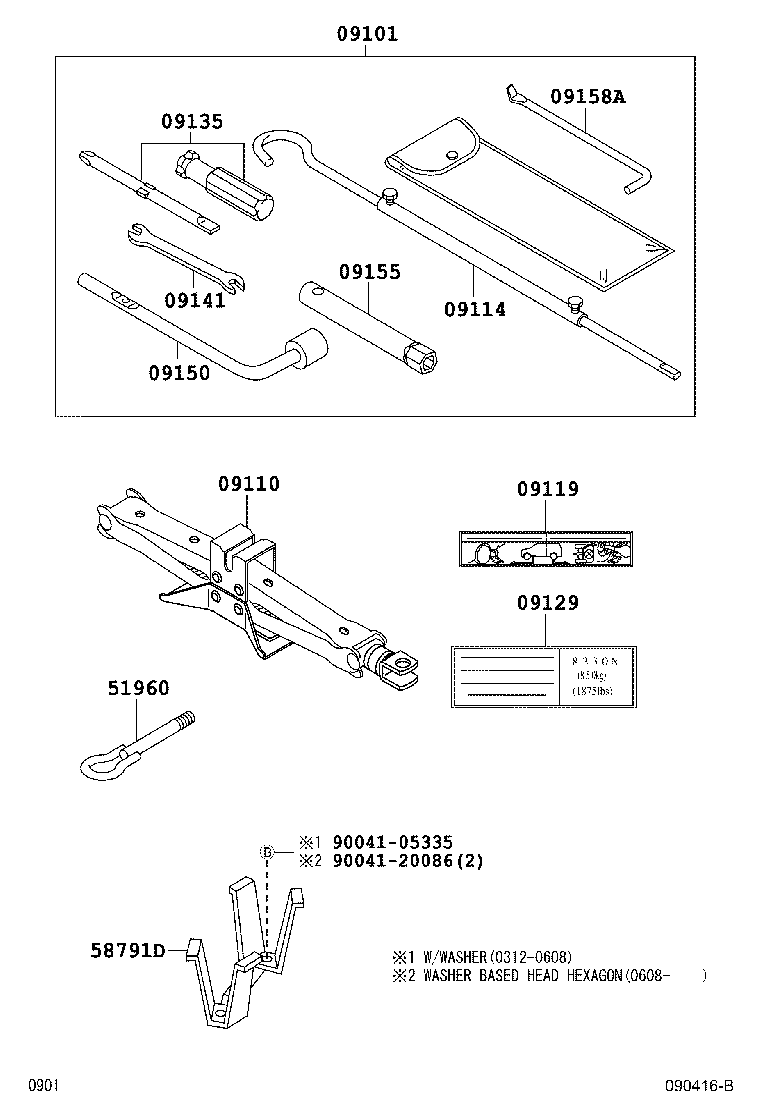

Click highlighted areas on diagram

K3,3SZ

diagram 09101 09110 09114 09119 09129 09135 09141 09150 09155 09158A 51960 58791D 9004105335 9004120086
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-BZ010

F601

 1
09110 - JACK ASSY
09111-BZ010

F601

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-87Z02

F601

 1
09119 - LABEL, JACK CAUTION
09119-BZ030

F601

 1
09129 - LABEL, JACK CAUTION
09119-BZ020

F601

 1
09135 - DRIVER, SCREW
09135-87Z10

F601

 1
09141 - SPANNER
09141-87Z11

F601

10 X 12

 1
09150 - WRENCH, HUB NUT BOX
09150-87Z01

F601

 1
09155 - WRENCH, SPARK PLUG
09155-BZ010

F601

 1
09158A - HANDLE, SPARK PLUG WRENCH
09158-87Z04

F601

 1
51960 - HOOK ASSY, FRONT
51960-BZ020

F601

 1
58791D - CARRIER, JACK
58791-BZ010

F601

 1
Common parts
90041-05335
90041-20086
