F601LM-GMDFJ (2006)
Toyota Avanza
(0608- )LHD..5F

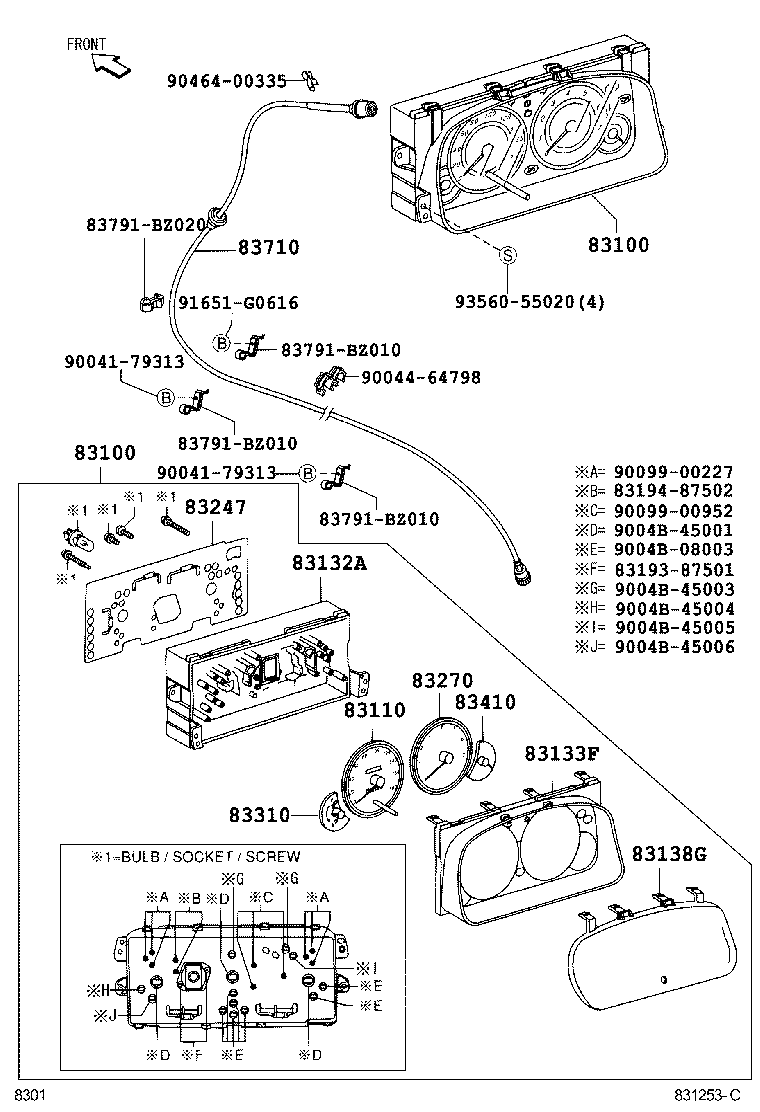

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-BZ370 |
F601..CTM,STD;F601..DLX..GEN |
1 | ||
| 83800-BZK10 |
F601..CTM,STD;F601..DLX..GEN |
1 | ||
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-BZ370 |
F601..CTM,STD;F601..DLX..GEN |
1 | ||
| 83800-BZK10 |
F601..CTM,STD;F601..DLX..GEN |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-BZ010 |
F601..5F |
1 | ||
| 83220-BZ130 |
F601..5F..(E,G,J)..(GEN,IDN,PHL);F602..5F..(GL,J,S)..(GEN,IDN,MXC,TH) |
1 | ||
| 83220-BZ040 |
F60#..(CTM,DLX,GL,STD)..(GEN,SA) |
1 | ||
| 83220-BZ140 |
F60#..(CTM,DLX,GL,STD)..(GEN,SA) |
1 | ||
| 83132A - CASE, METER | ||||
| 83841-BZ010 |
F601..5F |
1 | ||
| 83841-BZ010 |
F60#..LHD..5F..(DLX,GL);F601..5F..(CTM,E,G,J,STD) |
1 | ||
| 83133F - PLATE, METER | ||||
| 83811-BZ010 |
F60#..5F..(GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 83811-BZ010 |
F601..5F |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-BZ010 |
F601..5F |
1 | ||
| 83852-BZ010 |
F60#..5F..(GEN,IDN,MA,MXC,PHL,SA) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-BZ050 |
F601..CTM,STD;F601..DLX..GEN |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83881-BZ010 |
F601..5F |
1 | ||
| 83881-BZ110 |
F601..5F..(GEN,IDN,PHL,SA) |
1 | ||
| 83881-BZ050 |
F601..CTM,STD;F601..DLX..GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-BZ010 |
F601..5F |
1 | ||
| 83882-BZ050 |
F60#..5F..(GEN,IDN,MXC,PHL,SA,TH) |
1 | ||
| 83882-BZ030 |
F60#..5F..(GEN,IDN,MXC,PHL,SA) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-BZ030 |
F60#..5F..(GEN,IDN,MXC,PHL,SA) |
1 | ||
| 83883-BZ050 |
F60#..5F..(GEN,IDN,MXC,PHL,SA,TH) |
1 | ||
| 83883-BZ010 |
F601..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-BZ020 |
F60#..LHD..5F |
1 | ||
| 83710-BZ021 |
F60#..LHD..5F |
1 | ||
| 83710-BZ010 |
F601..5F |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 83194-87502 | ||||
| 83791-BZ010 | ||||
| 83791-BZ020 | ||||
| 90041-79313 | ||||
| 90044-64798 | ||||
| 9004B-08003 | ||||
| 9004B-45001 | ||||
| 9004B-45003 | ||||
| 9004B-45004 | ||||
| 9004B-45005 | ||||
| 9004B-45006 | ||||
| 90099-00227 | ||||
| 90099-00952 | ||||
| 90464-00335 | ||||
| 91651-G0616 | ||||
| 93560-55020 | ||||
(0608- )F602 ; (0608- )F601..MA ; (0608-)F601..CTM,DLX,G,J,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-BZ010 |
F602;F601..5F..MA;F601..CTM,DLX,G,J,STD |
1 | ||
