F601LM-GMDFJ (2006)
Toyota Avanza
(0608- )DLX..GEN ; (0608- )F601..CTM,J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

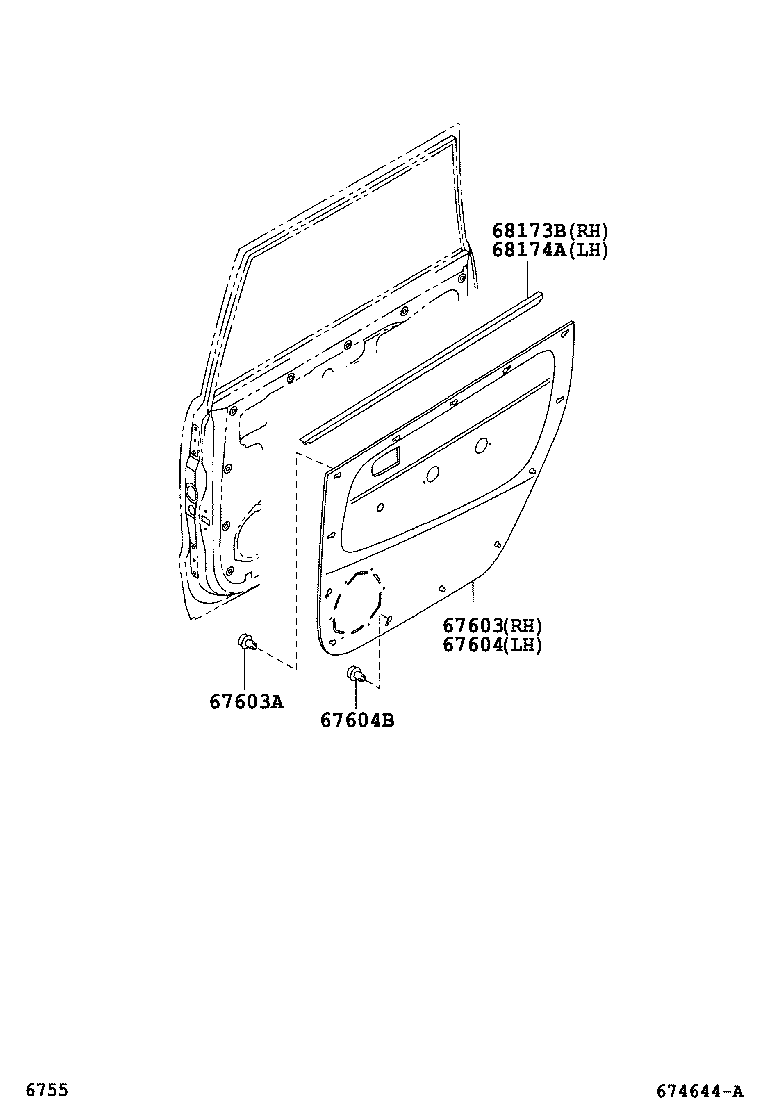

| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67607-BZ010B0 |
F601..E,G,GL DK.GRAY,TRIM1# |
1 | ||
| 67630-BZ011B0 |
F601..CTM,J;F601..DLX..GEN DK.GRAY,TRIM1# |
1 | ||
| 67630-BZ010B0 |
F601..CTM,J;F601..DLX..GEN GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-BZ060 |
F601..CTM,J;F601..DLX..GEN |
18 | ||
| 67771-87707 |
F601..CTM,J;F601..DLX..GEN |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67608-BZ010B0 |
F601..E,G,GL DK.GRAY,TRIM1# |
1 | ||
| 67640-BZ011B0 |
F601..CTM,J;F601..DLX..GEN DK.GRAY,TRIM1# |
1 | ||
| 67640-BZ010B0 |
F601..CTM,J;F601..DLX..GEN GRAY,TRIM1# |
1 | ||
| 67604B - CLIP(FOR SLIDE DOOR TRIM BOARD) | ||||
| 67771-33020 |
F601..CTM,J;F601..DLX..GEN |
8 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-BZ020 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-BZ010 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
(0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-BZ100 |
F601..G;F602..(E,G)..MA |
1 | ||
| 67003-BZ270 |
F60#..LHD..(GEN,MXC) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-BZ200 |
F60#..LHD..(GEN,MXC) |
1 | ||
| 67004-BZ090 |
F601..G;F602..(E,G)..MA |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-BZ070 |
F601..G;F602..(E,G)..MA |
1 | ||
| 67113-BZ020 |
F601..CTM,STD;F60#..LHD..GEN;F602..(GL,S)..(MXC,TH) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-BZ020 |
F601..CTM,STD;F60#..LHD..GEN;F602..(GL,S)..(MXC,TH) |
1 | ||
| 67114-BZ070 |
F601..G;F602..(E,G)..MA |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67407-BZ010 |
F601 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-BZ010 |
F601 |
1 | ||
| 67408-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67485G - SEAL, REAR DOOR REAR LOWER FRAME, RH | ||||
| 67485-BZ010 |
F601 |
1 | ||
| 67485-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67486D - SEAL, REAR DOOR REAR LOWER FRAME, LH | ||||
| 67486-BZ010 |
F601 |
1 | ||
| 67486-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-BZ030 |
F601 W(SPEAKER),RH |
1 | ||
| 67841-BZ010 |
F601..LHD W/O(SPEAKER) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-BZ010 |
F601..LHD W/O(SPEAKER) |
1 | ||
| 67842-BZ010 |
F601 W(SPEAKER),LH |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-BZ010 |
F601 |
2 | ||
| 67857-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-BZ010 |
F601 |
1 | ||
| 67871-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-BZ010 |
F601 |
1 | ||
| 67872-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-BZ010 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68103-BZ040 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-BZ010 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68104-BZ040 |
F602..PHL;F601..GEN,PHL,SA;F602..(DLX,S)..(GEN,SA) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-BZ010 |
F601 |
1 | ||
| 68142-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-BZ010 |
F601 |
1 | ||
| 68152-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-BZ010 |
F601 |
1 | ||
| 68180-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-BZ010 |
F601 |
1 | ||
| 68230-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68630-BZ010 |
F601 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68640-BZ010 |
F601 |
1 | ||
| Common parts | ||||
| 90041-05208 | ||||
| 90041-05465 | ||||
| 90041-19341 | ||||
| 90041-49064 | ||||
| 90041-68099 | ||||
| 9004A-10012 | ||||
| 90119-06984 | ||||
| 91651-G0616 | ||||
