AXXH50L-JEXQBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jul 2021
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

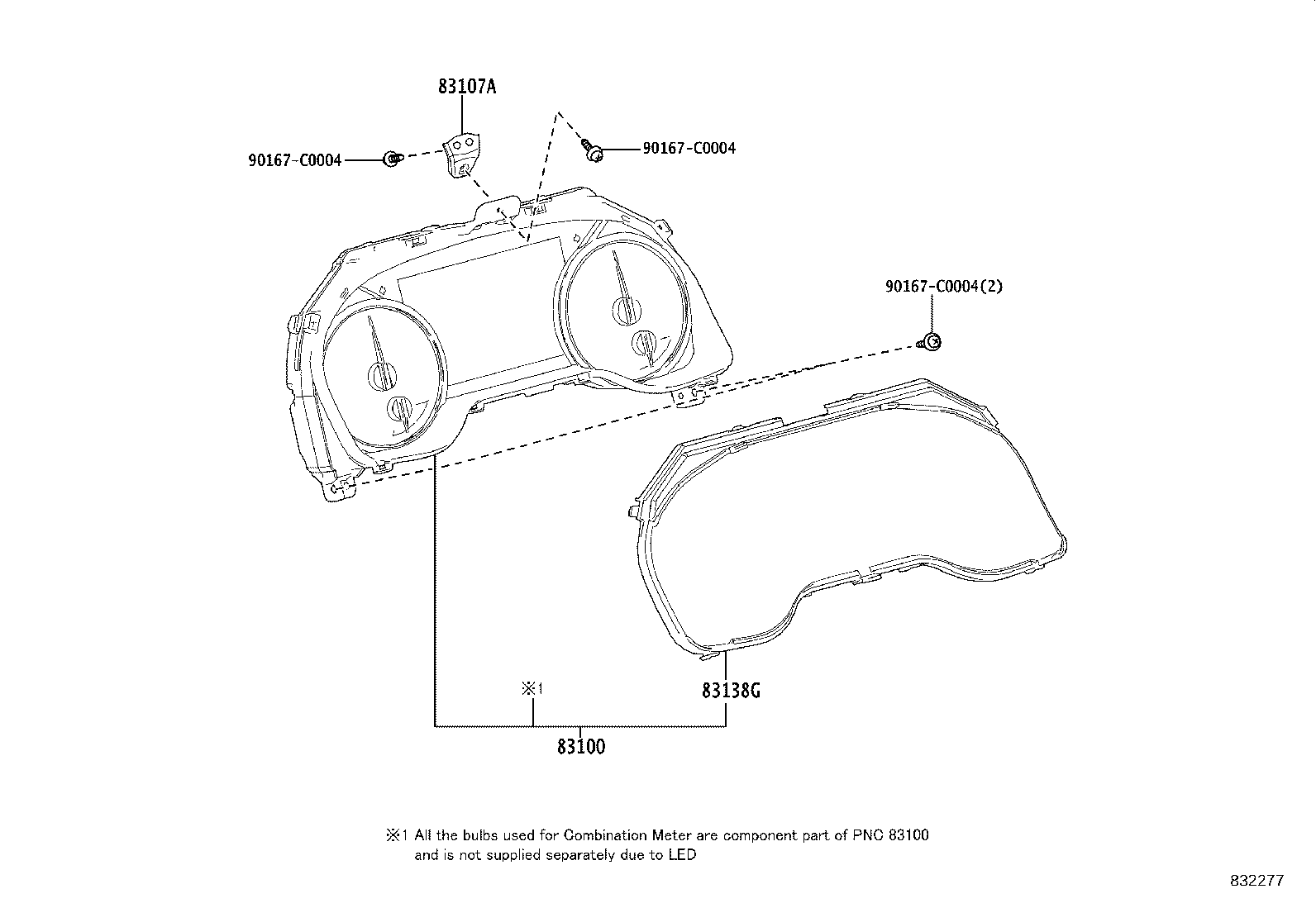

COMBINATION METER

diagram 83100 83107A 83138G 90167C0004 90167C0004 90167C0004
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-07690

AXXH50

DENSO

 1
83800-07691

AXXH50

DENSO

 1
83107A - BRACKET SUB-ASSY, METER, NO.1
83107-07030

AXXH50

 1
83138G - GLASS, COMBINATION METER
83852-07690

AXXA50,AXXH50,MXXA50

 1
Common parts
90167-C0004

ILLUST NO. 2 OF 2(1903- )AXXH50

Click highlighted areas on diagram

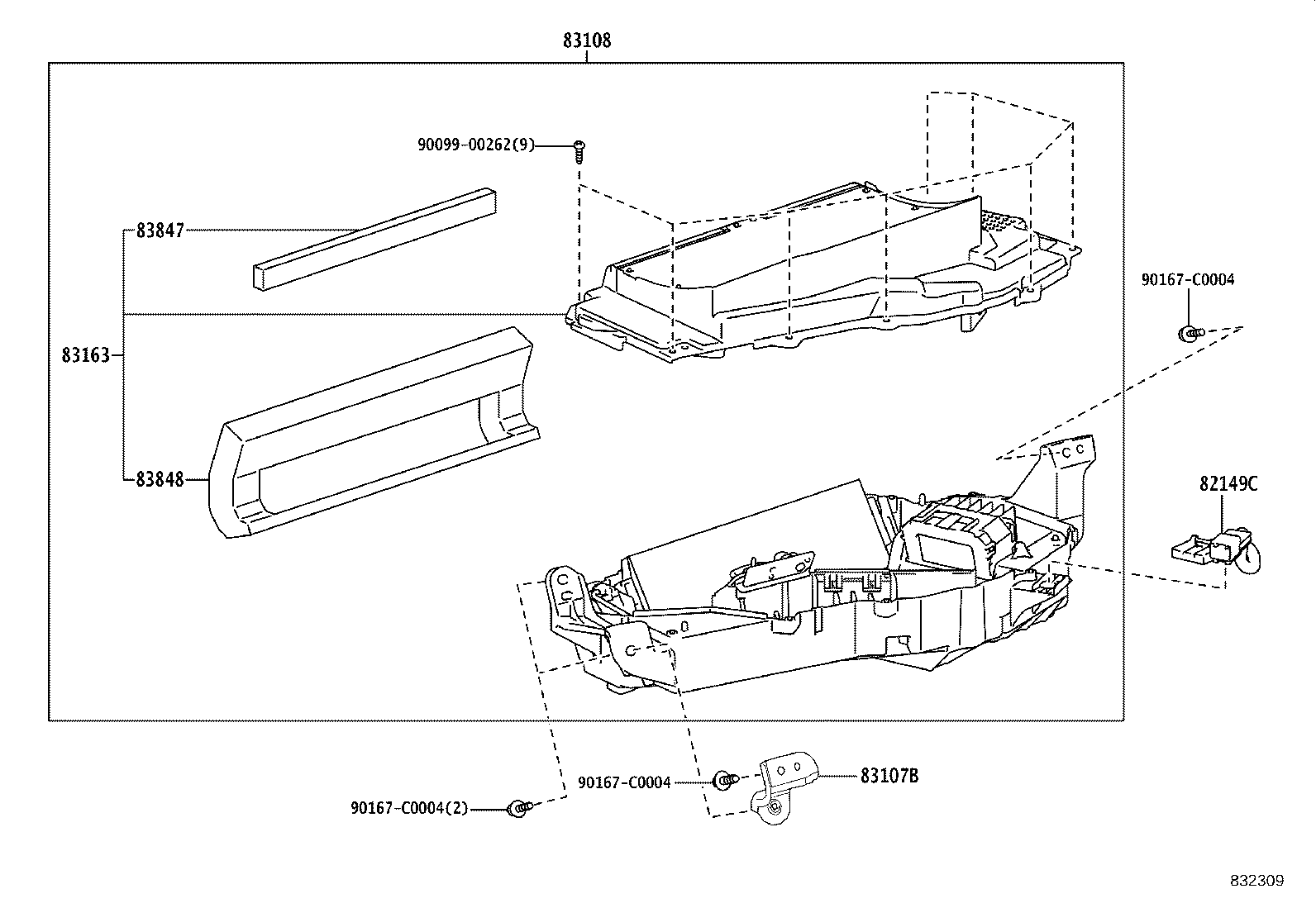

HEAD UP DISPLAY

diagram 82149C 83107B 83108 83163 83847 83848 9009900262 90167C0004 90167C0004 90167C0004
Part # Description Qty Price
82149C - WIRE, METER MIRROR
82149-06040

AXXH50

 1
83107B - BRACKET SUB-ASSY, METER, NO.2
83107-07020

AXXH50

 1
83108 - MIRROR SUB-ASSY, METER
83108-07020

AXXH50

 1
83163 - PLATE, COMBINATION METER MIRROR, NO.1
83163-06080

AXXH50

 1
83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1
83847-06080

AXXH50

 1
83848 - CUSHION, COMBINATION SPEEDOMETER, NO.2
83848-06080

AXXH50

 1
Common parts
90099-00262
90167-C0004
