AXXH50L-JEXQBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jul 2021
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXXH50

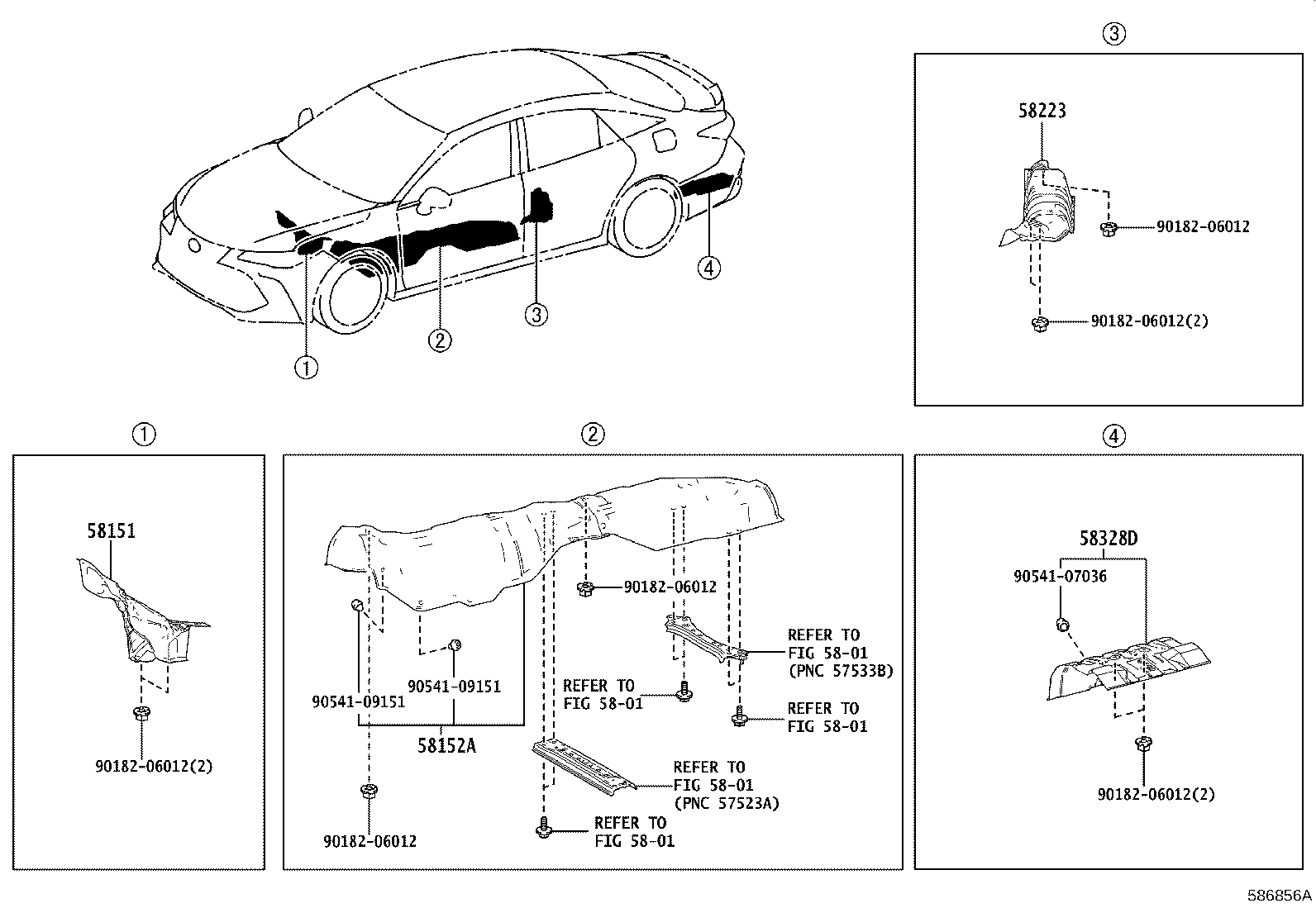

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 58151 58152A 58223 58328D 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9054107036 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-07010

AXXH50

 1
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-07030

AXXH50

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-07010

AXXH50

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58327-07020

AXXH50

 1
Common parts
90182-06012
90541-07036
90541-09151
Linked diagrams
5801
