AXXH50L-JEXQBC (2019)
Toyota Avalon (China)
Production
Mar 2019
-
Jul 2021
Engine
A25BFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

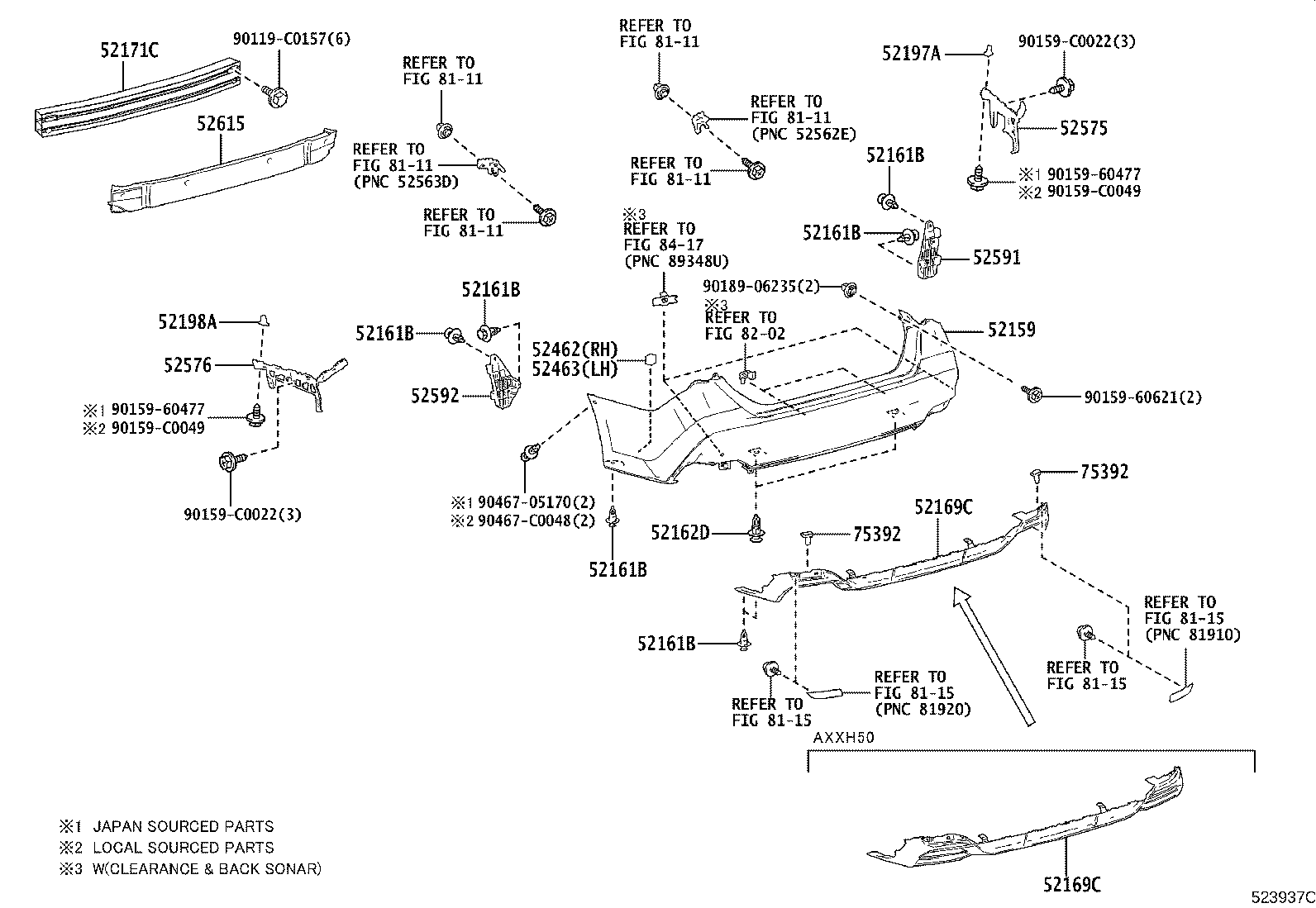

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-07906 |
AXXH50..G,Q PAINT REQ. |
1 | ||
| 52159-07905 |
AXXH50..B,E PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
4 | ||
| 52161-16010 |
AXXH50 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
4 | ||
| 52161-16010 |
AXXH50 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
4 | ||
| 52161-16010 |
AXXH50 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
4 | ||
| 52161-16010 |
AXXH50 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
4 | ||
| 52161-16010 |
AXXH50 (J) |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
4 | ||
| 52161-16010 |
AXXH50 (J) |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02040 |
AXXH50 (L) |
2 | ||
| 52161-16010 |
AXXH50 (J) |
2 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-07100C1 |
AXXH50 BLACK,070 ,1K0 ,209 ,3T3 ,4U3 ,4X9 |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-07100C1 |
AXXH50 BLACK,070 ,1K0 ,209 ,3T3 ,4U3 ,4X9 |
1 | ||
| 52171C - REINFORCEMENT, REAR BUMPER | ||||
| 52171-07020 |
AXXH50 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
AXXH50 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
AXXH50 |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-F4040 |
AXXH50 NO PAINT REQ. |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-F4040 |
AXXH50 NO PAINT REQ. |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-07030 |
AXXH50 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-07030 |
AXXH50 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-07030 |
AXXH50 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-07030 |
AXXH50 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-07050 |
AXXH50 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AXXH50 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AXXH50 |
2 | ||
| Common parts | ||||
| 90119-C0157 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90159-C0022 | ||||
| 90159-C0049 | ||||
| 90189-06235 | ||||
| 90467-05170 | ||||
| 90467-C0048 | ||||
| Linked diagrams | ||||
| 8111 | ||||
| 8115 | ||||
| 8202 | ||||
| 8417 | ||||
