AXXH50L-JEXGBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jul 2021
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

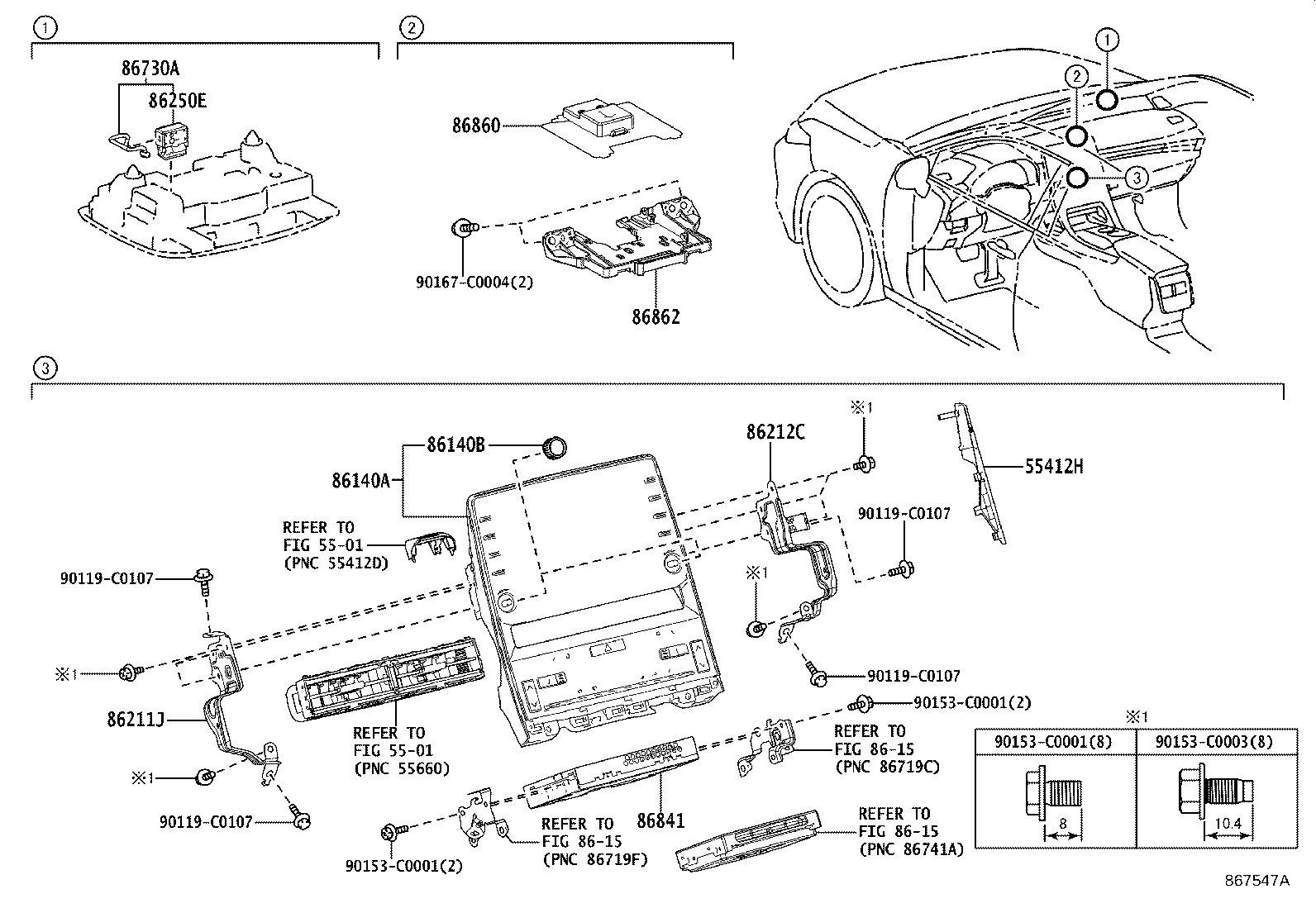

Click highlighted areas on diagram

diagram 5501 5501 55412H 86140A 86140B 8615 8615 8615 86211J 86212C 86250E 86730A 86841 86860 86862 90119C0107 90119C0107 90119C0107 90119C0107 90153C0001 90153C0001 90153C0001 90153C0003 90167C0004
Part # Description Qty Price
55412H - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-07060

AXXH50

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-07270

AXXH50..B,E

PIONEER

 1
86140-07280

AXXH50..G

PIONEER

 1
86140-07281

AXXH50..G

PIONEER

 1
86140-07271

AXXH50..B,E

PIONEER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25309

AXXH50

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-07060

AXXH50

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-07070

AXXH50

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

AXXH50

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06060

AXXH50

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-07030

AXXH50

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

AXXH50

 1
Common parts
90119-C0107
90153-C0001
90153-C0003
90167-C0004
Linked diagrams
5501
8615
