Toyota Avalon (china) AXXH50 PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

Manufacturers Home
Toyota
GR
AVALON (CHINA)
AXXH50L-JEXGBC (2019)
6403 - PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

AXXH50L-JEXGBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jul 2021

Engine A25BFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1903- )

Click highlighted areas on diagram

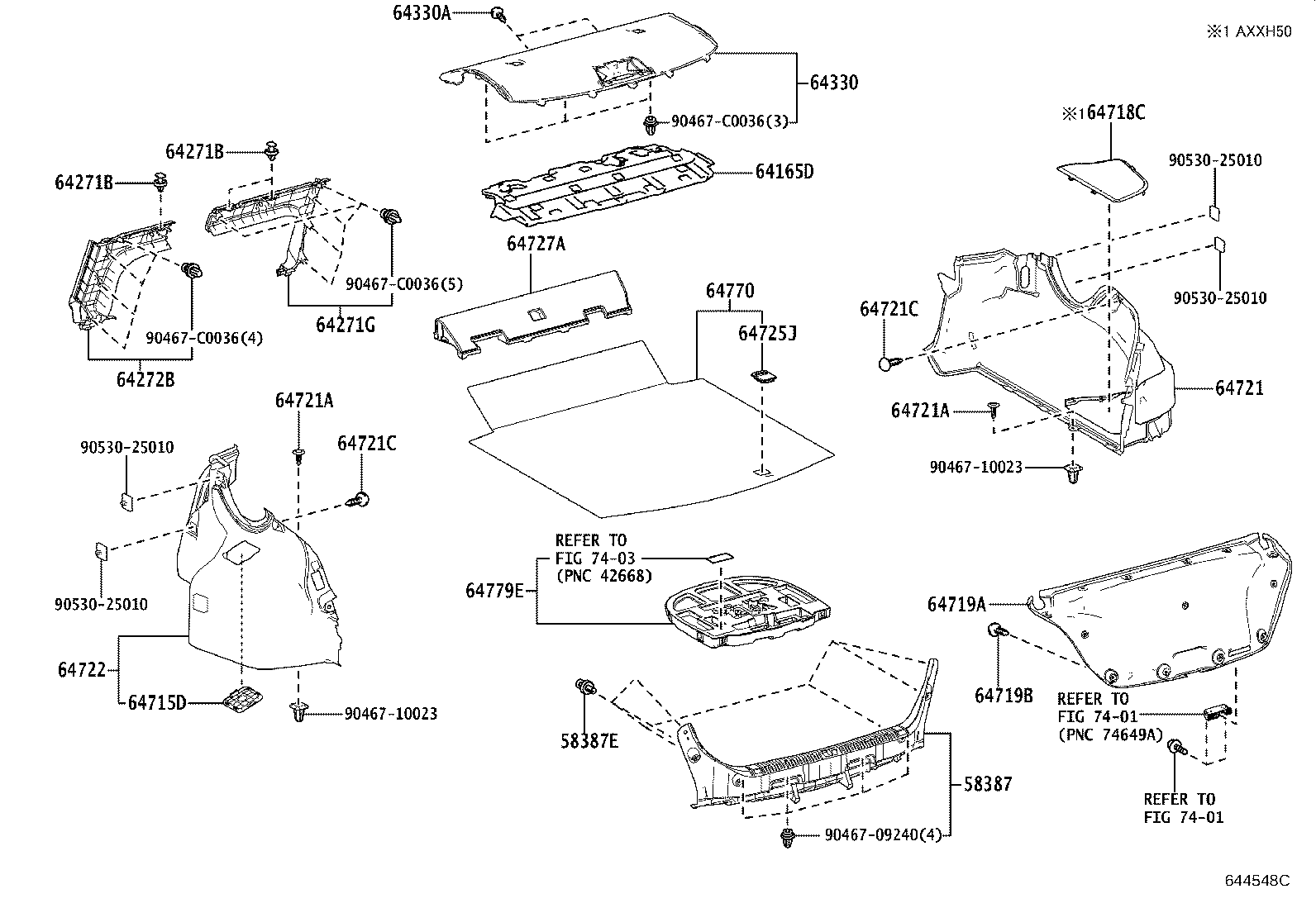

W(FOLD TYPE REAR SEAT)

Part #	Description	Period	Qty
58387 - PLATE, REAR FLOOR FINISH
58387-07030C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-C0043	AXXH50	03/2019 - 07/2021	6
64165D - COVER, UPPER BACK PANEL HOLE, NO.1
64165-07080	AXXH50..B,E,G	03/2019 - 07/2021	1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-C0045C0	AXXH50..B,G BLACK	03/2019 - 07/2021	3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-C0045C0	AXXH50..B,G BLACK	03/2019 - 07/2021	3
64271G - BOARD, ROOM PARTITION, RH
64271-07010C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64272B - BOARD, ROOM PARTITION, LH
64272-07010C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-07120C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	1
64330-07120C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-C0016C1	AXXH50..B,G BLACK	03/2019 - 07/2021	2
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-07050C0	AXXH50 BLACK,TRIM2#,4#	12/2019 - 07/2021	1
64715-07050C0	AXXH50 EXHAUST EMISSION CONTROL-CHINA 6,BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64715-07040C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64715-07040C0	AXXH50..E BLACK,TRIM2#	03/2019 - 12/2019	1
64718C - COVER, LUGGAGE TRIM SERVICE HOLE
64718-07030C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	1
64718-07030C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-07030C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-C0043	AXXH50	03/2019 - 07/2021	13
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-07060C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
90467-08222C1	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
90467-08222C1	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-C0045C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
90467-C0045C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-C0045C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
90467-C0045C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-07050C0	AXXH50..E BLACK,TRIM2#	03/2019 - 12/2019	1
64722-07060C0	AXXH50..E EXHAUST EMISSION CONTROL-CHINA 6,BLACK,TRIM2#	03/2019 - 12/2019	1
64722-07060C0	AXXH50..E BLACK,TRIM2#	12/2019 - 07/2021	1
64722-07060C0	AXXH50..B,G,Q EXHAUST EMISSION CONTROL-CHINA 6,BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64722-07050C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64722-07060C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	12/2019 - 07/2021	1
64725J - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-07010C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-07030	AXXH50..B,G	03/2019 - 07/2021	1
64770 - COVER ASSY, SPARE WHEEL
64770-07050C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64770-07040C0	AXXH50..E,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64779E - TRAY, SPARE WHEEL COVER
64779-07020	AXXH50	03/2019 - 07/2021	1
Common parts
90467-09240
90467-10023
90467-C0036
90530-25010
Linked diagrams
7401
7403

(1903- )

Click highlighted areas on diagram

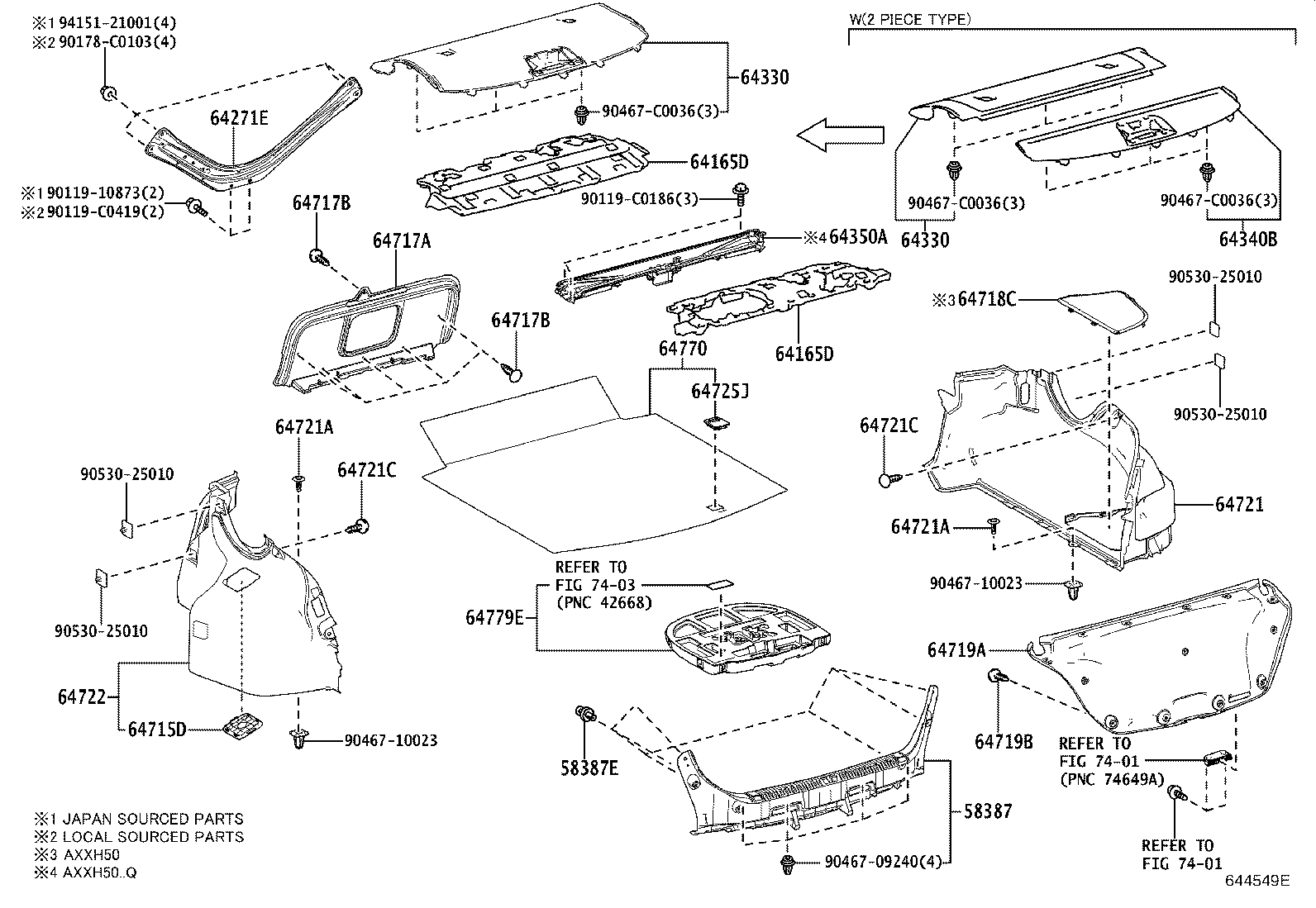

W(FIX TYPE REAR SEAT)

Part #	Description	Period	Qty
58387 - PLATE, REAR FLOOR FINISH
58387-07030C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-C0043	AXXH50	03/2019 - 07/2021	6
64165D - COVER, UPPER BACK PANEL HOLE, NO.1
64165-07080	AXXH50..B,E,G	03/2019 - 07/2021	1
64165D - COVER, UPPER BACK PANEL HOLE, NO.1
64165-07080	AXXH50..B,E,G	03/2019 - 07/2021	1
64271E - PANEL, ROOM PARTITION
64241-07030	AXXH50..E,Q	03/2019 - 07/2021	1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-07120C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	1
64330-07120C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-07120C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	1
64330-07120C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-07050C0	AXXH50 BLACK,TRIM2#,4#	12/2019 - 07/2021	1
64715-07050C0	AXXH50 EXHAUST EMISSION CONTROL-CHINA 6,BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64715-07040C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64715-07040C0	AXXH50..E BLACK,TRIM2#	03/2019 - 12/2019	1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-07030C0	AXXH50..E,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-C0045C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	6
64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-C0045C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	6
64718C - COVER, LUGGAGE TRIM SERVICE HOLE
64718-07030C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	1
64718-07030C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-07030C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-C0043	AXXH50	03/2019 - 07/2021	13
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-07060C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
90467-08222C1	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
90467-08222C1	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-C0045C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
90467-C0045C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-C0045C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	2
90467-C0045C0	AXXH50..E BLACK,TRIM2#	03/2019 - 07/2021	2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-07050C0	AXXH50..E BLACK,TRIM2#	03/2019 - 12/2019	1
64722-07060C0	AXXH50..E EXHAUST EMISSION CONTROL-CHINA 6,BLACK,TRIM2#	03/2019 - 12/2019	1
64722-07060C0	AXXH50..E BLACK,TRIM2#	12/2019 - 07/2021	1
64722-07060C0	AXXH50..B,G,Q EXHAUST EMISSION CONTROL-CHINA 6,BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64722-07050C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 12/2019	1
64722-07060C0	AXXH50..B,G,Q BLACK,TRIM2#,4#	12/2019 - 07/2021	1
64725J - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-07010C0	AXXH50 BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64770 - COVER ASSY, SPARE WHEEL
64770-07050C0	AXXH50..B,G BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64770-07040C0	AXXH50..E,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
64779E - TRAY, SPARE WHEEL COVER
64779-07020	AXXH50	03/2019 - 07/2021	1
Common parts
90119-10873
90119-C0186
90119-C0419
90178-C0103
90467-09240
90467-10023
90467-C0036
90530-25010
94151-21001
Linked diagrams
7401
7403

AXXH50L-JEXGBC (2019)

(1903- )

(1903- )
