AXXH50L-JEXGBC (2019)
Toyota Avalon (China)
Production
Mar 2019
-
Jul 2021
Engine
A25BFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

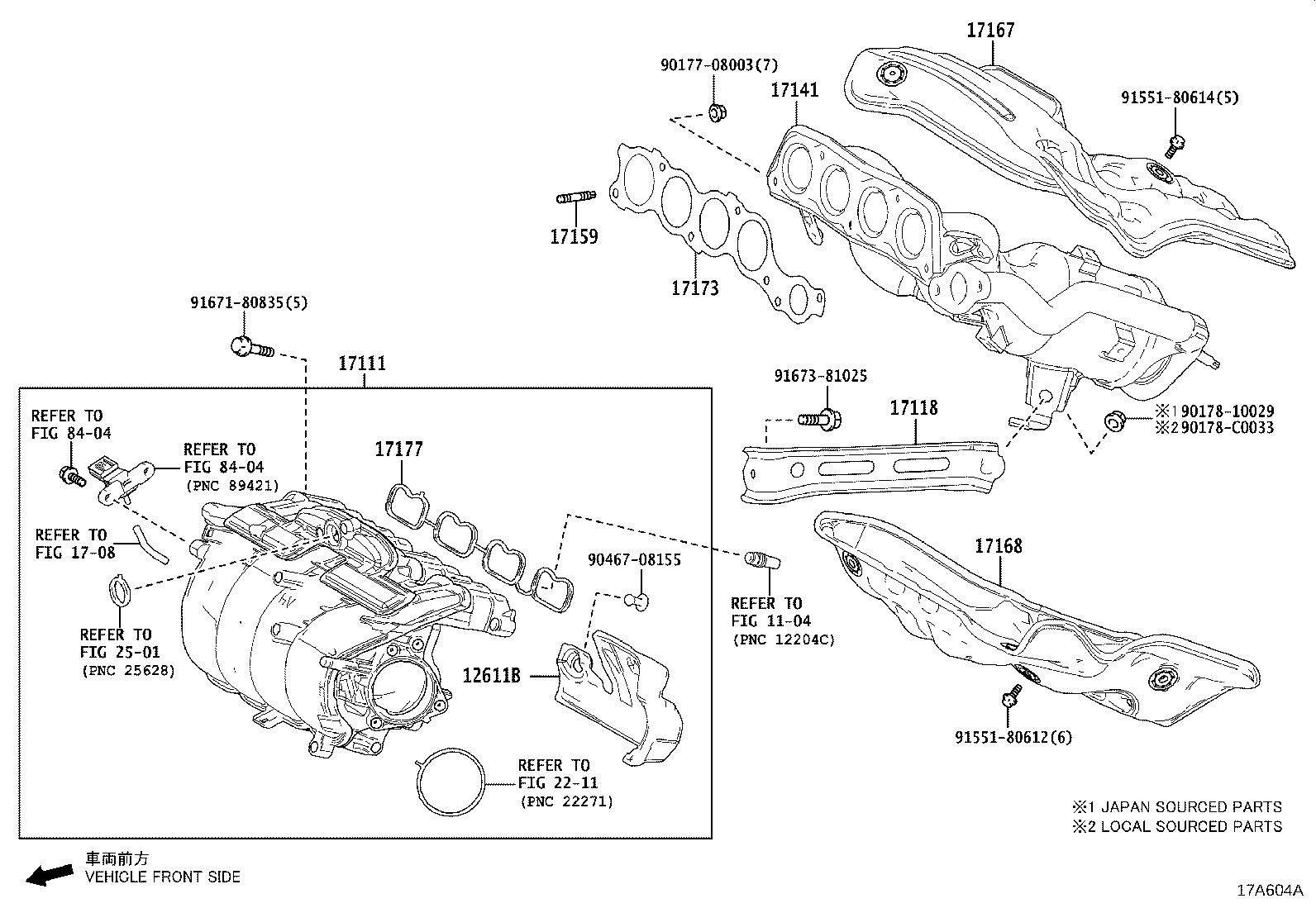

(1903-2107)A25BFXS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12611B - COVER, ENGINE, NO.1 | ||||
| 12613-25020 |
A25BFXS..AXXH50 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-25020 |
A25BFXS..AXXH50 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-25010 |
A25#..AXXA50,AXXH50 |
1 | ||
| 17118-F0060 |
A25BFXS..AXXH50 (L) |
1 | ||
| 17118-25030 |
A25BFXS..AXXH50 (J) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-F0060 |
A25BFXS..AXXH50 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08052 |
A25BFXS..AXXH50 |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-25010 |
A25BFXS..AXXH50 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-25010 |
A25BFXS..AXXH50 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25020 |
A25BFXS..AXXH50 (J) |
1 | ||
| 17173-F0030 |
A25BFXS..AXXH50 (L) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-25010 |
A25BFXS..AXXH50 |
1 | ||
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90178-C0033 | ||||
| 90467-08155 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
