AXXH50L-JEXBBC (2019)
Toyota Avalon (China)
Production
Mar 2019
-
Jul 2021
Engine
A25BFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

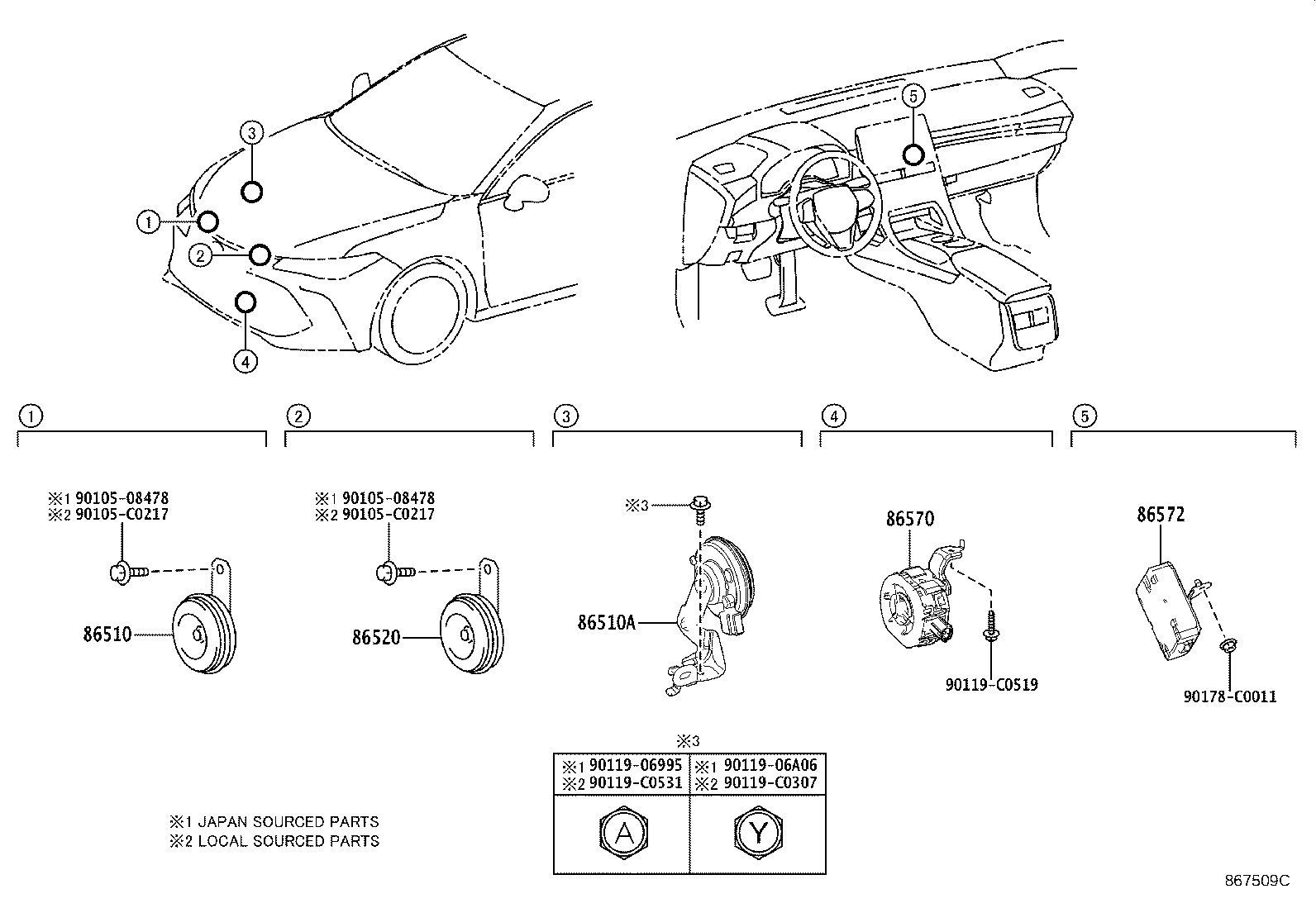

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-0R041 |
AXXH50 |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-07030 |
AXXH50 |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-0R041 |
AXXH50 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-07010 |
AXXH50 |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-07040 |
AXXH50 |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90105-C0217 | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 90119-C0307 | ||||
| 90119-C0519 | ||||
| 90119-C0531 | ||||
| 90178-C0011 | ||||
