AXXH50L-JEXBBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jul 2021

Engine A25BFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1903- )

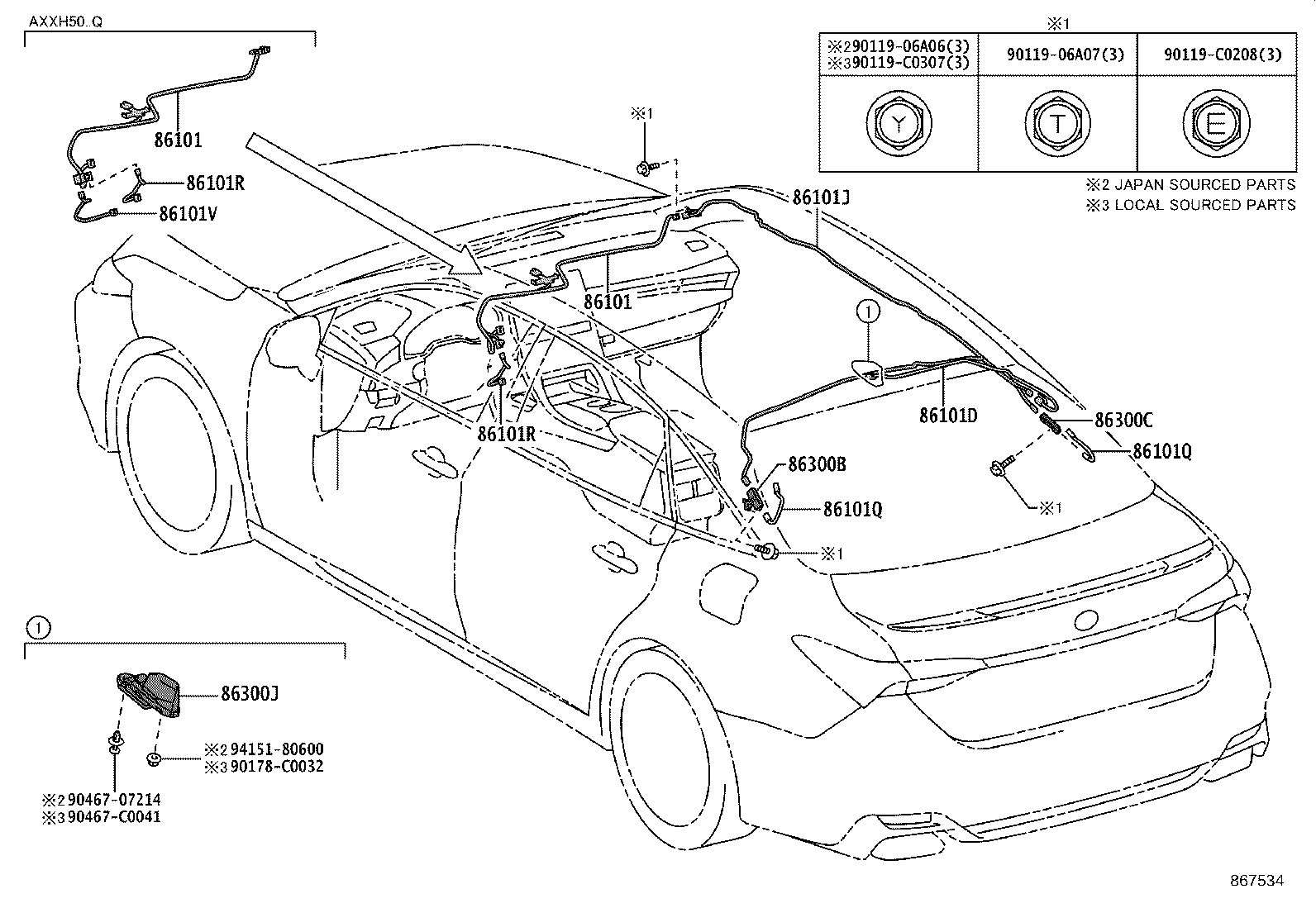

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86101 - CORD SUB-ASSY, ANTENNA
86101-07560	AXXH50..B,E,G	03/2019 - 07/2021	1
86101 - CORD SUB-ASSY, ANTENNA
86101-07560	AXXH50..B,E,G	03/2019 - 07/2021	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-07540	AXXH50..B,E	03/2019 - 07/2021	1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-07500	AXXH50	03/2019 - 07/2021	2
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-07500	AXXH50	03/2019 - 07/2021	2
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-07570	AXXH50..B,E,G	03/2019 - 07/2021	1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-07570	AXXH50..B,E,G	03/2019 - 07/2021	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-06250	AXXH50	03/2019 - 07/2021	1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-06260	AXXH50	03/2019 - 07/2021	1
Common parts
90119-06A06
90119-06A07
90119-C0208
90119-C0307
90178-C0032
90467-07214
90467-C0041
94151-80600
