Toyota Avalon (china) AXXH50 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
GR
AVALON (CHINA)
AXXH50L-JEXBBC (2019)
6701 - FRONT DOOR PANEL & GLASS

AXXH50L-JEXBBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jul 2021

Engine A25BFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

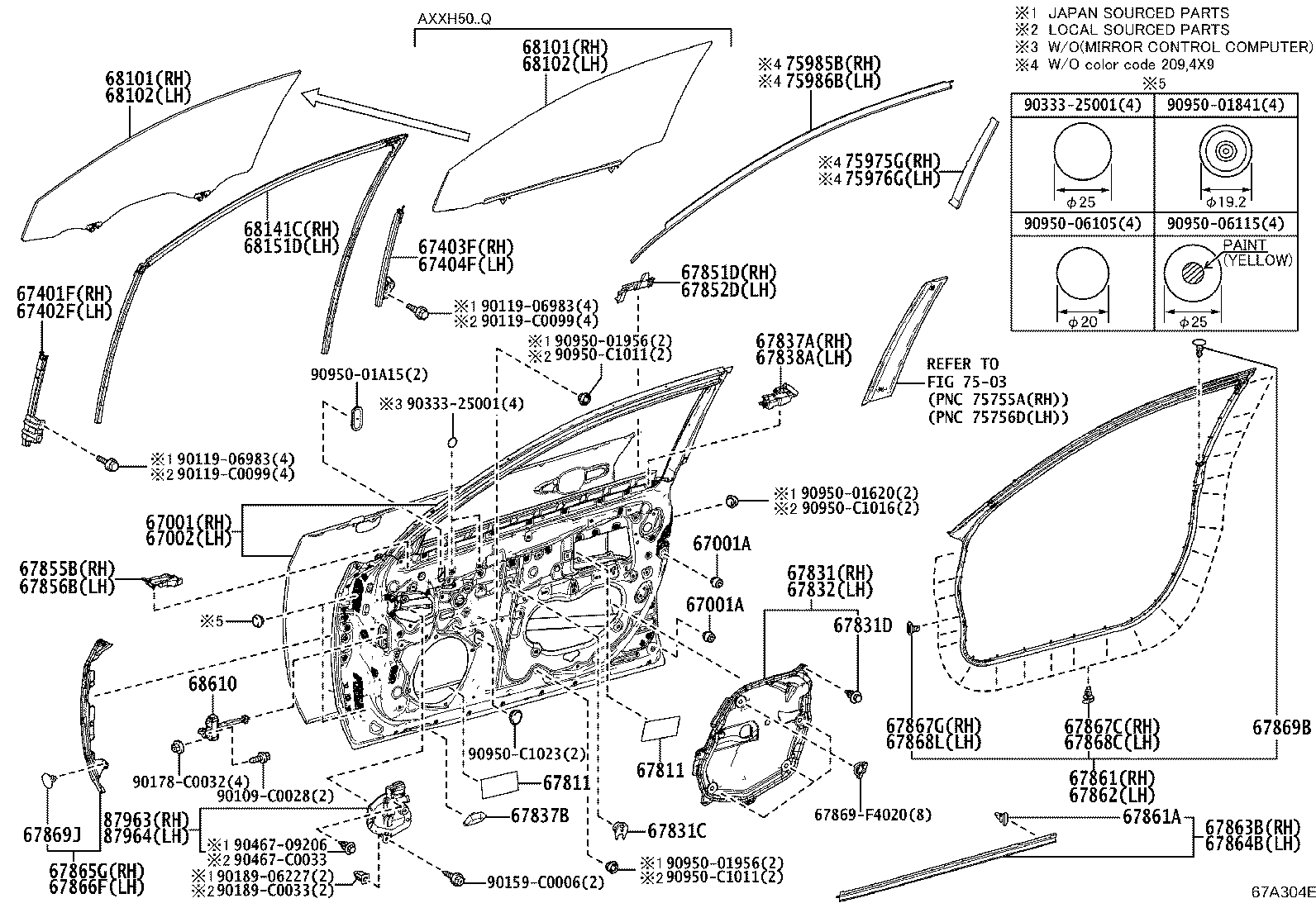

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-07060	AXXH50	03/2019 - 07/2021	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09143	AXXA50,AXXH50	03/2019 - 09/2019	4
90541-C0008	AXXH50 (L)	09/2019 - 07/2021	4
90541-09143	AXXH50 (J)	09/2019 - 07/2021	4
67001A - CUSHION, FRONT DOOR PANEL
90541-09143	AXXA50,AXXH50	03/2019 - 09/2019	4
90541-C0008	AXXH50 (L)	09/2019 - 07/2021	4
90541-09143	AXXH50 (J)	09/2019 - 07/2021	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-07070	AXXH50	03/2019 - 07/2021	1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-07020	AXXH50	03/2019 - 07/2021	1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-07020	AXXH50	03/2019 - 07/2021	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-07030	AXXH50	03/2019 - 07/2021	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-07030	AXXH50	03/2019 - 07/2021	1
67811 - PAD, FRONT DOOR SILENCER
67811-02390	AXXH50	03/2019 - 07/2021	4
67811 - PAD, FRONT DOOR SILENCER
67811-02390	AXXH50	03/2019 - 07/2021	4
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-07070	AXXH50	03/2019 - 07/2021	1
67831C - COVER, FRONT DOOR SERVICE HOLE
67833-F4020	AXXH50	03/2019 - 07/2021	2
67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER)
90467-09206	AXXH50 (J)	03/2019 - 07/2021	3
90467-C0033	AXXH50 (L)	03/2019 - 07/2021	3
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-07060	AXXH50	03/2019 - 07/2021	1
67837A - SEAL, FRONT DOOR VENT, RH
67837-07020	AXXH50	03/2019 - 07/2021	1
67837B - SEAL, FRONT DOOR DUST PROOF
67837-F4030	AXXH50	03/2019 - 07/2021	2
67838A - SEAL, FRONT DOOR VENT, LH
67838-07020	AXXH50	03/2019 - 07/2021	1
67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH
67851-07010	AXXH50	03/2019 - 07/2021	1
67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH
67852-07010	AXXH50	03/2019 - 07/2021	1
67855B - PROTECTOR, FRONT DOOR PANEL, RH
67855-07030	AXXH50	03/2019 - 07/2021	1
67856B - PROTECTOR, FRONT DOOR PANEL, LH
67856-07030	AXXH50	03/2019 - 07/2021	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-07030	AXXH50	03/2019 - 07/2021	1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-52010	AXXH50	03/2019 - 07/2021	16
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-07030	AXXH50	03/2019 - 07/2021	1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-07030	AXXH50	03/2019 - 07/2021	1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67863-07030	AXXH50	03/2019 - 07/2021	1
67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH
67865-07020	AXXH50	03/2019 - 07/2021	1
67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-07020	AXXH50	03/2019 - 07/2021	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	AXXH50	03/2019 - 07/2021	22
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52020	AXXH50	03/2019 - 07/2021	1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	AXXH50	03/2019 - 07/2021	22
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52020	AXXH50	03/2019 - 07/2021	1
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67868-30030	AXXH50	03/2019 - 07/2021	2
67869J - CLIP, FRONT DOOR WEATHERSTRIP
90467-06195	AXXH50	03/2019 - 07/2021	8
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-07060	AXXH50..B,E,G	03/2019 - 07/2021	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-07060	AXXH50..B,E,G	03/2019 - 07/2021	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-07060	AXXH50..B,E,G	03/2019 - 07/2021	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-07060	AXXH50..B,E,G	03/2019 - 07/2021	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-07040	AXXH50	03/2019 - 07/2021	1
68151D - RUN, FRONT DOOR GLASS, LH
68151-07040	AXXH50	03/2019 - 07/2021	1
68610 - CHECK ASSY, FRONT DOOR
68610-07040	AXXH50	03/2019 - 07/2021	2
75975G - STRIPE, FRONT DOOR, NO.2 RH
75975-07030	AXXH50 0 OR 1PIECE,REF.ILL.	03/2019 - 07/2021	1
75976G - STRIPE, FRONT DOOR, NO.2 LH
75976-07030	AXXH50 0 OR 1PIECE,REF.ILL.	03/2019 - 07/2021	1
75985B - STRIPE, FRONT DOOR, NO.3 RH
75985-07030	AXXH50 0 OR 1PIECE,REF.ILL.	03/2019 - 07/2021	1
75986B - STRIPE, FRONT DOOR, NO.3 LH
75986-07030	AXXH50 0 OR 1PIECE,REF.ILL.	03/2019 - 07/2021	1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-07020	AXXH50	03/2019 - 07/2021	1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-07020	AXXH50	03/2019 - 07/2021	1
Common parts
67869-F4020
90109-C0028
90119-06983
90119-C0099
90159-C0006
90178-C0032
90189-06227
90189-C0033
90333-25001
90467-09206
90467-C0033
90950-01620
90950-01841
90950-01956
90950-01A15
90950-06105
90950-06115
90950-C1011
90950-C1016
90950-C1023
Linked diagrams
7503

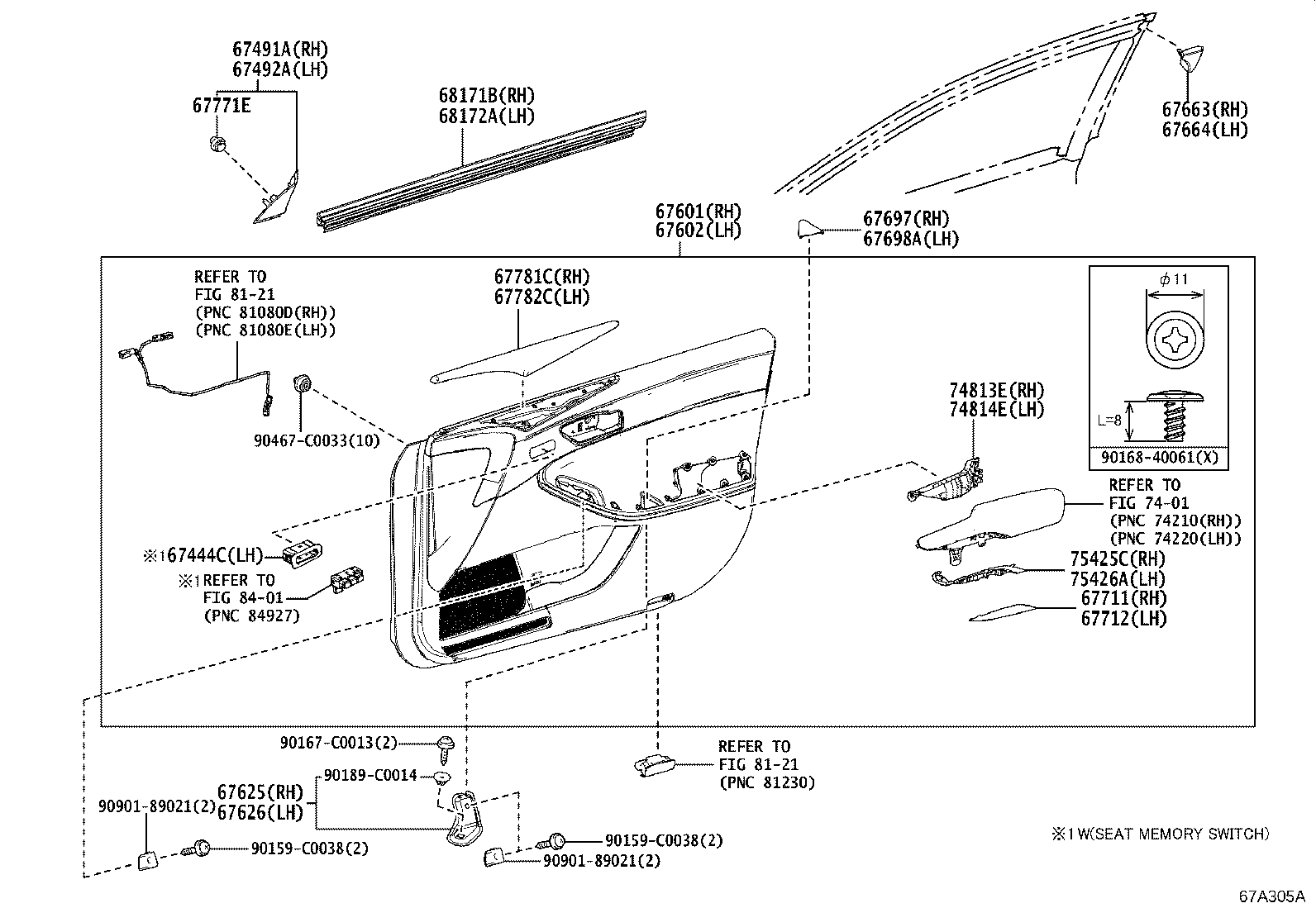

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-07030	AXXH50	03/2019 - 07/2021	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-07030	AXXH50	03/2019 - 07/2021	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-07210C9	AXXH50..B,E NEUTRAL WARM GRAY,TRIM2#	03/2019 - 08/2020	1
67610-0721021	AXXH50..B NEUTRAL BEIGE,TRIM4#	03/2019 - 08/2020	1
67610-07300C0	AXXH50..B,E ALUMINUM MESH,TRIM2#	08/2020 - 07/2021	1
67610-07300C2	AXXH50..B NEUTRAL BEIGE,TRIM4#	08/2020 - 07/2021	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-07250C9	AXXH50..B,E OCHER,TRIM2#	03/2019 - 08/2020	1
67620-0725021	AXXH50..B NEUTRAL BEIGE,TRIM4#	03/2019 - 08/2020	1
67620-07330C0	AXXH50..B,E ALUMINUM MESH,TRIM2#	08/2020 - 07/2021	1
67620-07330C2	AXXH50..B NEUTRAL BEIGE,TRIM4#	08/2020 - 07/2021	1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-07060	AXXH50	03/2019 - 07/2021	1
67626 - BRACKET, FRONT DOOR TRIM, LH
67626-07020	AXXH50	03/2019 - 07/2021	1
67663 - GARNISH, DOOR FRAME, UPPER RH
67663-07020	AXXH50	03/2019 - 07/2021	1
67664 - GARNISH, DOOR FRAME, UPPER LH
67664-07020	AXXH50	03/2019 - 07/2021	1
67697 - COVER, FRONT DOOR TRIM POCKET
67697-07020C0	AXXH50..B BLACK,TRIM2#,40	03/2019 - 07/2021	1
67697-07020C0	AXXH50..E BLACK,TRIM2#,4#	03/2019 - 07/2021	1
67697-07020E0	AXXH50..B,G,Q NEUTRAL BEIGE,TRIM40	03/2019 - 07/2021	1
67698A - COVER, FRONT DOOR TRIM POCKET, LH
67698-07020C0	AXXH50..B BLACK,TRIM2#,40	03/2019 - 07/2021	1
67698-07020E0	AXXH50..B,G,Q NEUTRAL BEIGE,TRIM40	03/2019 - 07/2021	1
67698-07020C0	AXXH50..E BLACK,TRIM2#,4#	03/2019 - 07/2021	1
67711 - COVER, FRONT DOOR TRIM, RH
67711-07020C0	MXXA50..E;AXXA50,AXXH50 BLACK,TRIM2#	03/2019 - 07/2021	1
67711-07020E1	AXXH50..B NEUTRAL BEIGE,TRIM4#	03/2019 - 07/2021	1
67711-07020E1	MXXA50;AXXA50,AXXH50..E,G NEUTRAL BEIGE,TRIM4#	03/2019 - 08/2020	1
67712 - COVER, FRONT DOOR TRIM, LH
67712-07020E1	MXXA50..E;AXXA50,AXXH50..E,G NEUTRAL BEIGE,TRIM4#	03/2019 - 08/2020	1
67712-07020C0	AXXA50,AXXH50,MXXA50 BLACK,TRIM2#	03/2019 - 07/2021	1
67712-07020E1	AXXH50..B;MXXA50..B,G NEUTRAL BEIGE,TRIM4#	03/2019 - 07/2021	1
67771E - RETAINER(FOR FRONT DOOR FRAME BRACKET)
67771-12060	AXXH50	03/2019 - 07/2021	2
67781C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH
67781-07070B0	AXXH50..E ALUMINUM MESH,TRIM2#,4#	03/2019 - 08/2020	1
67781-07070B0	AXXH50..B,G,Q ALUMINUM MESH,TRIM2#,4#	03/2019 - 07/2021	1
67781-07070B0	AXXH50..E ALUMINUM MESH,TRIM2#	08/2020 - 07/2021	1
67782C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH
67782-07070B0	AXXH50..E ALUMINUM MESH,TRIM2#,4#	03/2019 - 08/2020	1
67782-07070B0	AXXH50..B,G,Q ALUMINUM MESH,TRIM2#,4#	03/2019 - 07/2021	1
67782-07070B0	AXXH50..E ALUMINUM MESH,TRIM2#	08/2020 - 07/2021	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-07030	AXXH50	03/2019 - 07/2021	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-07030	AXXH50	03/2019 - 07/2021	1
74813E - HANDLE, FRONT DOOR PULL, RH
74813-07080C0	AXXA50,AXXH50,MXXA50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
74813-07080C0	AXXH50,MXXA50..E BLACK,TRIM2#	03/2019 - 07/2021	1
74814E - HANDLE, FRONT DOOR PULL, LH
74814-07080C0	AXXH50,MXXA50..E BLACK,TRIM2#	03/2019 - 07/2021	1
74814-07080C0	AXXA50,AXXH50,MXXA50..B,G,Q BLACK,TRIM2#,4#	03/2019 - 07/2021	1
75425C - ORNAMENT, FRONT DOOR, RH
75425-07040	AXXA50,AXXH50,MXXA50	03/2019 - 07/2021	1
75426A - ORNAMENT, FRONT DOOR, LH
75426-07040	AXXA50,AXXH50,MXXA50	03/2019 - 07/2021	1
Common parts
90159-C0038
90167-C0013
90168-40061
90189-C0014
90467-C0033
90901-89021
Linked diagrams
7401
8121
8401
