AXXA50L-JEZGBC (2019)
Toyota Avalon (China)
(1903- )AXXA50,MXXA50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55119B - EXTENSION, DASH PANEL, LH | ||||
| 55119-07020 |
AXXA50,MXXA50 |
1 | ||
| 55239F - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-07010 |
AXXA50,MXXA50 |
2 | ||
| 55239F - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-07010 |
AXXA50,MXXA50 |
2 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-07020 |
AXXA50,MXXA50 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-07010 |
AXXA50,MXXA50 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-07010 |
AXXA50,MXXA50 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-07010 |
AXXA50,MXXA50 |
1 | ||
| 57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | ||||
| 57405-07010 |
AXXA50,MXXA50 |
1 | ||
| 57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | ||||
| 57406-07010 |
AXXA50,MXXA50 |
1 | ||
| 57419G - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-07070 |
AXXA50,MXXA50 |
1 | ||
| 57429 - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57419-07070 |
AXXA50,MXXA50 |
1 | ||
| 57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-07020 |
AXXA50,MXXA50 |
1 | ||
| 57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-07020 |
AXXA50,MXXA50 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-07010 |
AXXA50,MXXA50 |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-07010 |
AXXA50,MXXA50 |
1 | ||
| 57523A - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-07010 |
AXXA50,MXXA50 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-07010 |
AXXA50,MXXA50 |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-07010 |
AXXA50,MXXA50..E |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-07010 |
AXXA50,MXXA50 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-07010 |
AXXA50,MXXA50 |
1 | ||
| 58088 - BRACKET SUB-ASSY, FLOOR SHIFT LINK | ||||
| 58088-07010 |
AXXA50,MXXA50 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-07020 |
AXXA50,MXXA50 |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-07010 |
AXXA50,MXXA50 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-07060 |
AXXA50,MXXA50 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-07020 |
AXXA50,MXXA50 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-07020 |
AXXA50,MXXA50 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-07010 |
AXXA50,MXXA50 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58117-07010 |
AXXA50,MXXA50 |
1 | ||
| 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | ||||
| 58127-33030 |
AXXA50,AXXH50,MXXA50 |
1 | ||
| 58127-07010 |
AXXA50,MXXA50 |
1 | ||
| 58128A - REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH | ||||
| 58128-07010 |
AXXA50,AXXH50,MXXA50 |
1 | ||
| 58128-33010 |
AXXA50,AXXH50,MXXA50 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-07020 |
AXXA50,MXXA50 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-07020 |
AXXA50,MXXA50 |
2 | ||
| 58136B - COVER, CENTER FLOOR HOLE | ||||
| 58136-07010 |
AXXA50,MXXA50 |
2 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-07010 |
AXXA50,MXXA50 |
1 | ||
| 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | ||||
| 58189-07040 |
AXXA50,MXXA50 |
1 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-07010 |
AXXA50,MXXA50 |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-07010 |
AXXA50,MXXA50 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-07020 |
AXXA50,MXXA50 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-07090 |
AXXA50 |
1 | ||
| 58211-07091 |
AXXA50,MXXA50 |
1 | ||
| 58303J - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-07030 |
AXXA50,MXXA50 |
1 | ||
| 58304J - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-07030 |
AXXA50,MXXA50 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-07060 |
AXXA50,MXXA50 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-07050 |
AXXA50,MXXA50 |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-07020 |
AXXA50,MXXA50 |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-07010 |
AXXA50,MXXA50 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-07020 |
AXXA50,MXXA50 |
1 | ||
| 58338H - REINFORCEMENT, REAR FLOOR PAN, NO.2 RH | ||||
| 58338-07020 |
AXXA50,MXXA50 |
1 | ||
| 58339L - REINFORCEMENT, REAR FLOOR PAN, NO.2 LH | ||||
| 58339-07030 |
AXXA50,MXXA50 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-07010 |
AXXA50,MXXA50 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-07010 |
AXXA50,MXXA50 |
1 | ||
| 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH | ||||
| 58362-07010 |
AXXA50,MXXA50 |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-F4020 |
AXXA50,MXXA50 |
1 | ||
| 58367-F4020 |
AXXA50,AXXH50,MXXA50 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-F4020 |
AXXA50,AXXH50,MXXA50 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 58368-F4020 |
AXXA50,MXXA50 |
1 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-F4030 |
AXXA50,MXXA50 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 58369-F4030 |
AXXA50,MXXA50 |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-07010 |
AXXA50,MXXA50 |
2 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-07010 |
AXXA50,MXXA50 |
2 | ||
| Common parts | ||||
| 90105-C0208 | ||||
| 90115-C0006 | ||||
| 90115-C0014 | ||||
| 90119-C0085 | ||||
| 90119-C0523 | ||||
| 90179-08261 | ||||

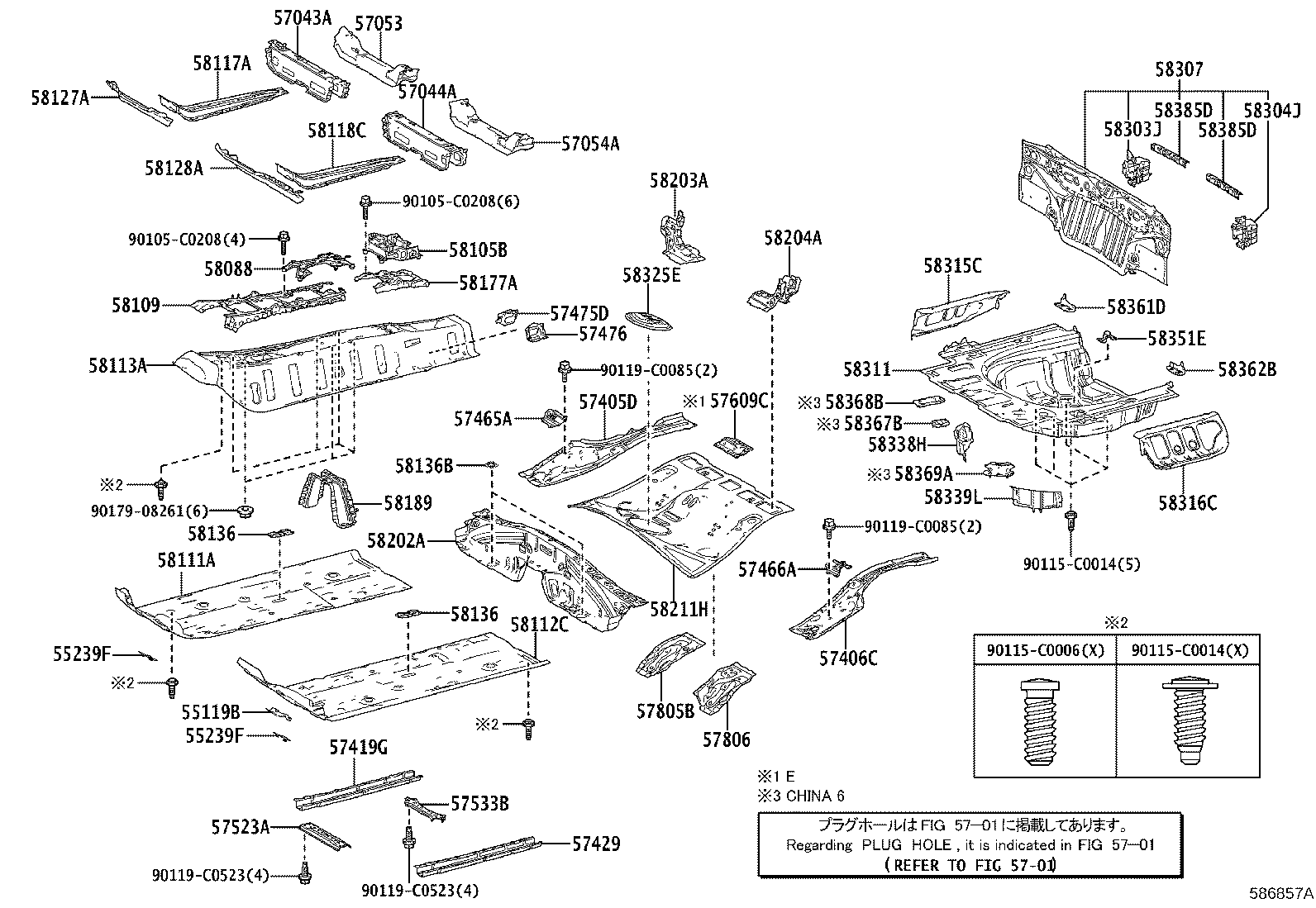

| Linked diagrams | ||||
| 5701 | ||||
