AXXA50L-JEZGBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jun 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

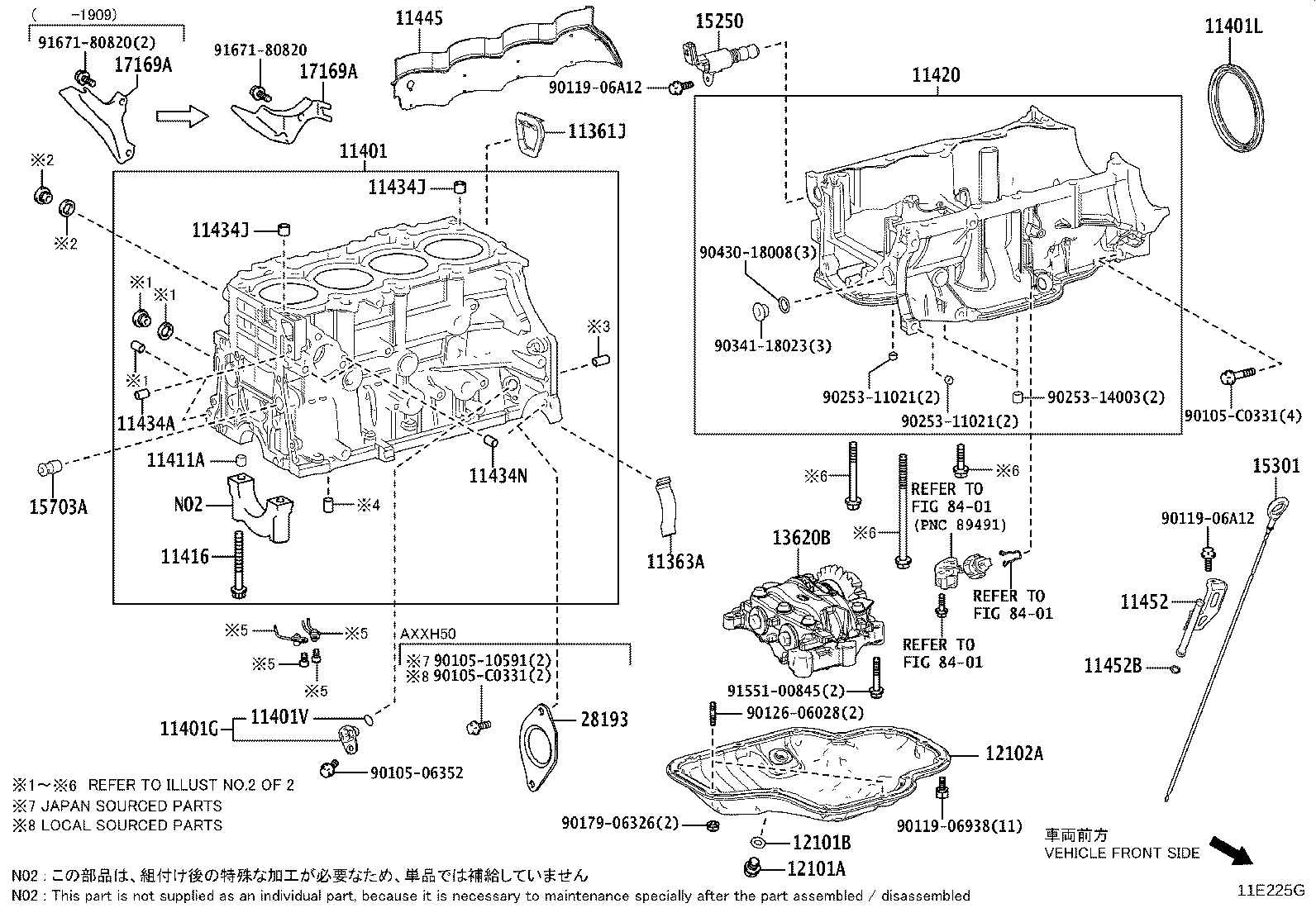

ILLUST NO. 1 OF 2(1903- )A25#

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401G 11401L 11401V 11411A 11416 11420 11434A 11434J 11434J 11434N 11445 11452 11452B 12101A 12101B 12102A 13620B 15250 15301 15703A 17169A 17169A 28193 8401 8401 8401 9010506352 9010510591 90105C0331 90105C0331 9011906938 9011906A12 9011906A12 9012606028 9017906326 9025311021 9025311021 9025314003 9034118023 9043018008 9155100845 9167180820 9167180820
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-25010

A25#..AXXA50,AXXH50

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-33010

A25#..AXXA50,AXXH50

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29515

A25AFKS..AXXA50

 1
11401G - SENSOR, CRANK POSITION
90919-05094

A25AFKS..AXXA50

 1
11401L - SEAL, ENGINE REAR OIL
90311-90010

A25AFKS..AXXA50

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-11039

A25AFKS..AXXA50

 1
11411A - PIN, RING(FOR CYLINDER BLOCK NO.1 )
90253-14003

A25AFKS..AXXA50

 10
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02197

A25AFKS..AXXA50

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-25010

A25AFKS..AXXA50

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

A25AFKS..AXXA50

L=14,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

A25AFKS..AXXA50

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

A25AFKS..AXXA50

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

A25AFKS..AXXA50

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-25010

A25AFKS..AXXA50

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-25010

A25AFKS..AXXA50

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

A25AFKS..AXXA50

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

A25AFKS..AXXA50

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

A25AFKS..AXXA50

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-25010

A25AFKS..AXXA50

 1
13620B - BALANCER ASSY, ENGINE
13620-25010

A25AFKS..AXXA50

 1
15250 - VALVE ASSY, OIL PRESSURE CONTROL
15250-25010

A25AFKS..AXXA50

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-25030

A25AFKS..AXXA50

 1
15703A - VALVE SUB-ASSY, OIL NOZZLE
15703-25011

A25AFKS..AXXA50

 1
17169A - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-25021

A25#..AXXA50,AXXH50

 1
17169-25030

A25AFKS..AXXA50

 1
17169A - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-25021

A25#..AXXA50,AXXH50

 1
17169-25030

A25AFKS..AXXA50

 1
Common parts
90105-06352
90105-10591
90105-C0331
90119-06938
90119-06A12
90126-06028
90179-06326
90253-11021
90253-14003
90341-18023
90430-18008
91551-00845
91671-80820
Linked diagrams
8401

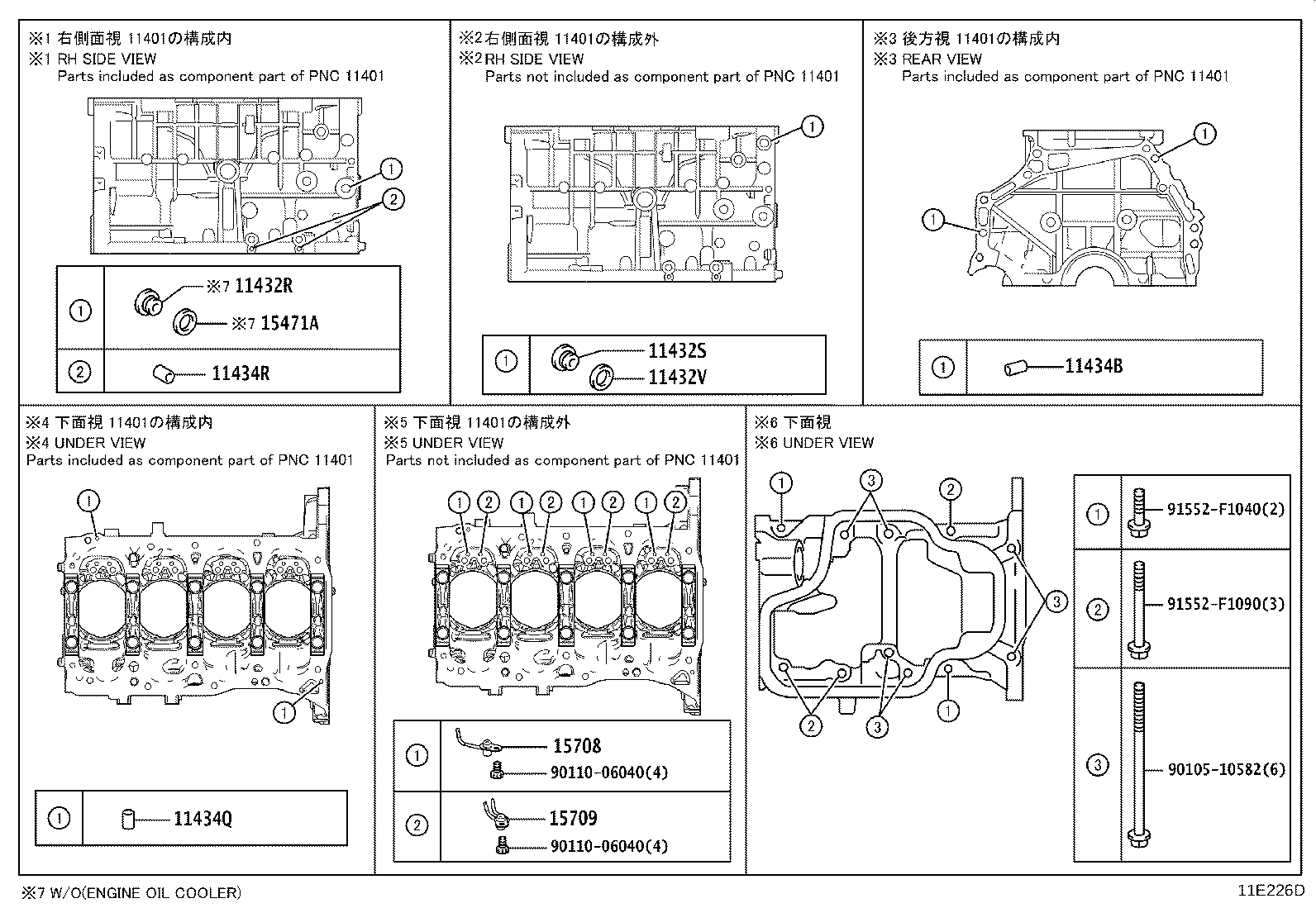

ILLUST NO. 2 OF 2(1903- )A25#

Click highlighted areas on diagram

diagram 11432R 11432S 11432V 11434B 11434Q 11434R 15471A 15708 15709 9010510582 9011006040 9011006040 91552F1040 91552F1090
Part # Description Qty Price
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-12012

A25#..AXXA50,AXXH50

 1
11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
90430-12031

A25#..AXXA50,AXXH50

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

A25AFKS..AXXA50

L=22,OD=10

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

A25AFKS..AXXA50

L=14,OD=6

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

A25AFKS..AXXA50

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-25010

A25AFKS..AXXA50

 4
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-25010

A25AFKS..AXXA50

 4
Common parts
90105-10582
90110-06040
91552-F1040
91552-F1090
