AXXA50L-JEZEBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jun 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXXA50 ; (1903- )AXXH50,MXXA50..B,G,Q

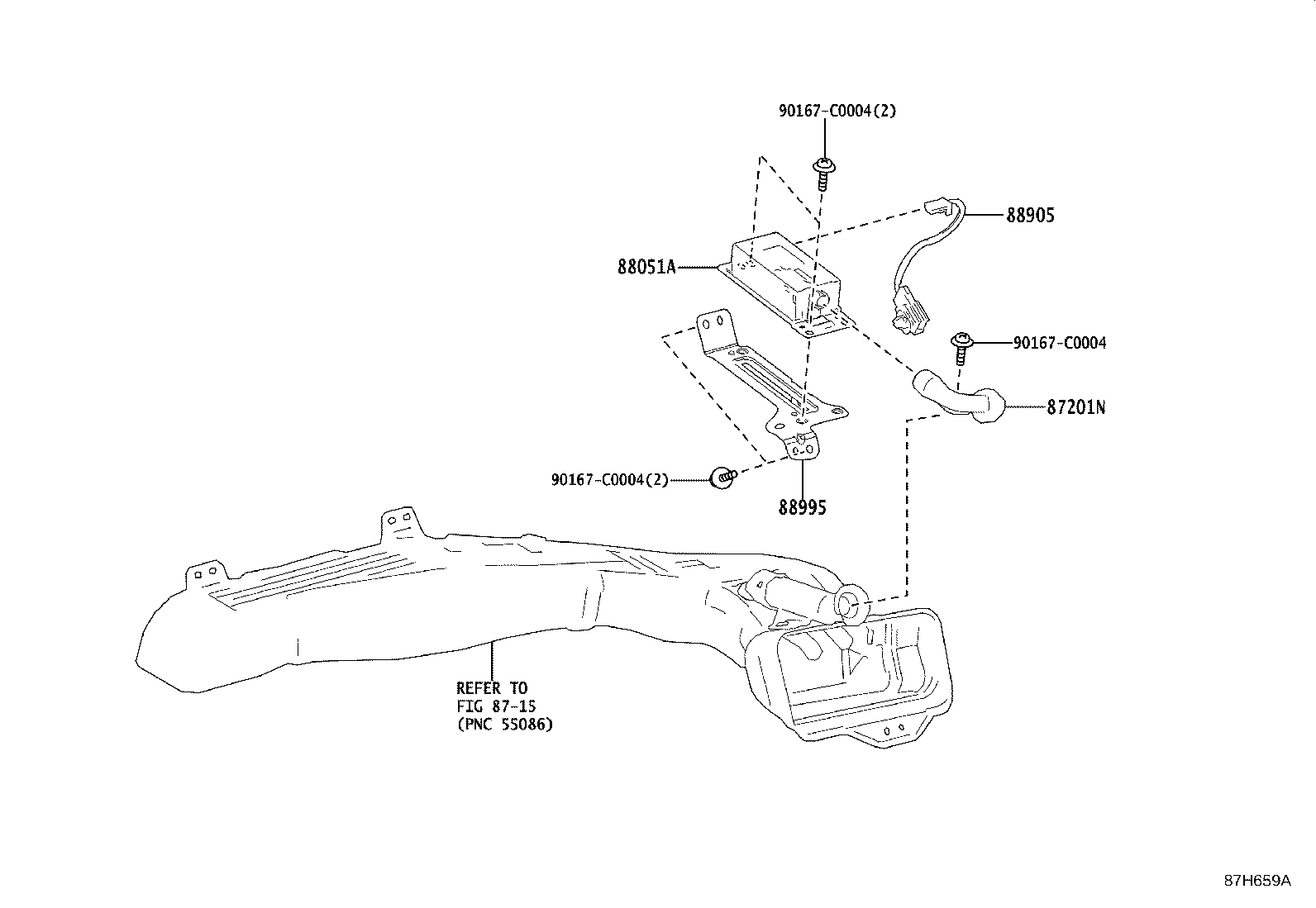

Click highlighted areas on diagram

diagram 8715 87201N 88051A 88905 88995 90167C0004 90167C0004 90167C0004
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
55848-07010

AXXA50,MXXA50..B,G

 1
55848-07010

AXXA50..E

B GRADE PACKAGE(W/BACK MONITOR)

 1
88051A - GENERATOR SUB-ASSY,ION
88051-0N010

AXXA50..E

B GRADE PACKAGE(W/BACK MONITOR)

 1
88051-0N010

AXXA50,MXXA50..B,G

 1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
82144-07020

AXXA50..E

B GRADE PACKAGE(W/BACK MONITOR)

 1
82144-07020

AXXA50,MXXA50..B,G

 1
88995 - BRACKET,ION GENERATOR, NO.1
88995-07010

AXXA50..E

B GRADE PACKAGE(W/BACK MONITOR)

 1
88995-07010

AXXA50,MXXA50..B,G

 1
Common parts
90167-C0004
Linked diagrams
8715
